2891490000 - Durable Polyamide Cable Entry System, IP66 Rated, 64mm x 106mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

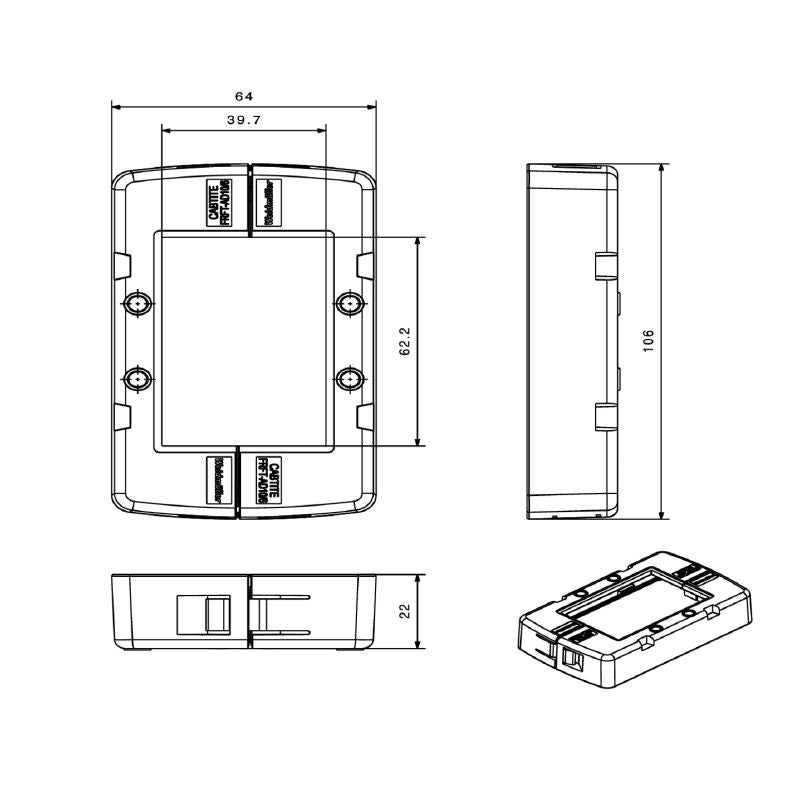

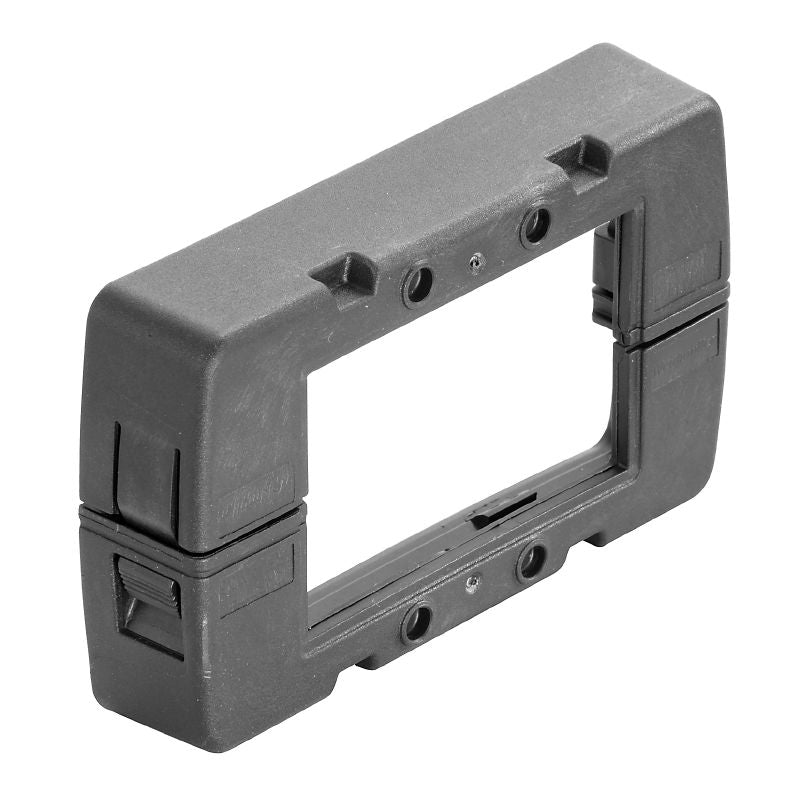

Introducing the CABTITE FRFT-AD 10/6, a robust cable entry system crafted from polyamide reinforced with glass fiber for exceptional durability This system operates effectively across a temperature range of -40 °C to 120 °C, ensuring reliability in diverse conditions With an ingress protection rating of IP66, it offers superior resistance to dust and water The dimensions of this component are 64 mm in height, 106 mm in width, and 24.

2 mm in depth, making it a practical choice for various installations.

Features and Benefits:

•Constructed from glass fiber-reinforced polyamide.

•Halogen-free material.

•Tightening torque of 3 Nm.

•Sealing made from TPE.

•UL 94 flammability rating of V-0.

•Compliant with RoHS regulations without exemption.

Specifications:
