2779320000 - Grey TPE Cable Entry Plate, 58mm x 149.6mm, IP66 Rated (Pack of 10)

2779320000 - Grey TPE Cable Entry Plate, 58mm x 149.6mm, IP66 Rated (Pack of 10)

SKU: SKU: 2779320000 Download PDF

Variant:
  • 2779320000 - Grey TPE Cable Entry Plate, 58mm x 149.6mm, IP66 Rated (Pack of 10)
Regular price Now $481.82
Regular price BEFORE   $0.00 Sale price Now $481.82
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

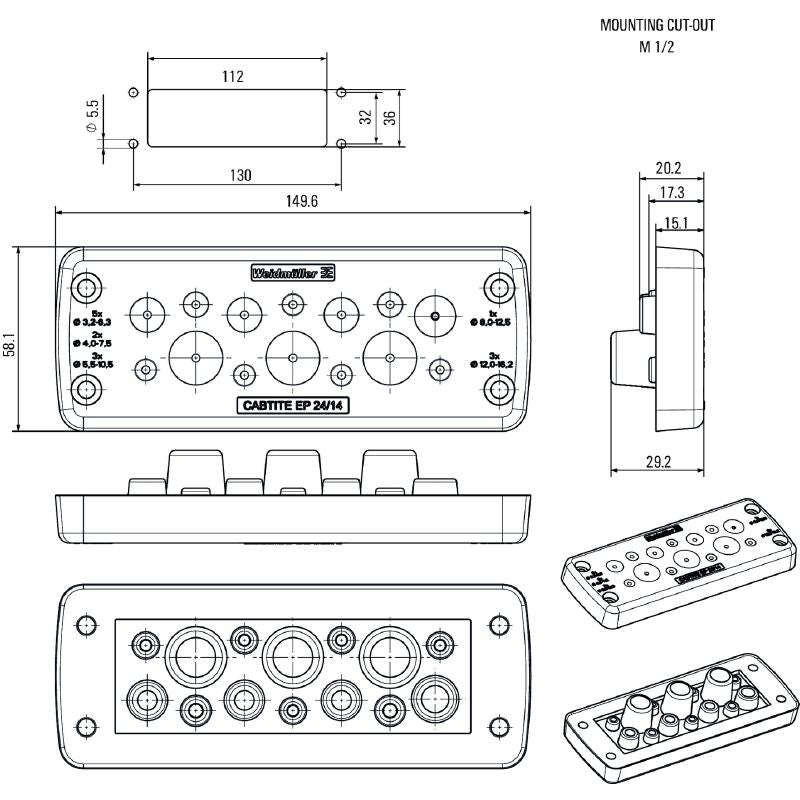

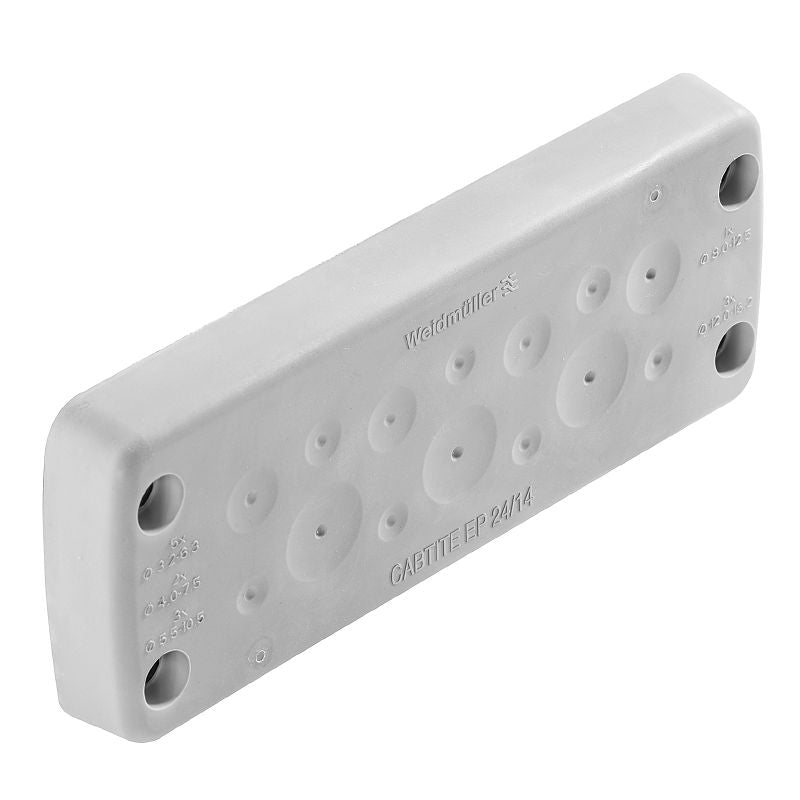

Introducing the CABTITE EP 24/14 GY, a specialized cable entry plate tailored for the Cabtite cable entry system Crafted from premium TPE material in a versatile grey shade, this plate measures 58 mm in height, 1496 mm in width, and 292 mm in depth It is optimized for a wide temperature range from -40 °C to 90 °C, ensuring reliable performance in various environments Plus, with an IP66 protection rating, it guarantees exceptional resistance to dust and water ingress, making it an ideal choice for robust applications.

Features and Benefits:

    •Designed for multiple cable entries.

    •Constructed from durable TPE material.

    •IP66 protection rating ensures resistance against dust and water.

    •Can accommodate a range of cable diameters.

Specifications:

 Operating temperature -40 °C...90 °C
 Height 58 mm
 Width 149.6 mm
 Depth 29.2 mm
 Protection class (UL) Type 1, Type 12, Type 4X
 Tightening torque 3.5 Nm
 UL 94 flammability rating V-0
 Number of connectable cables 14
 Cable diameter, min. 3.2 mm
 Cable diameter, max. 16.2 mm
 Number of cable entries 5
 RoHS Compliance Status Compliant without exemption
