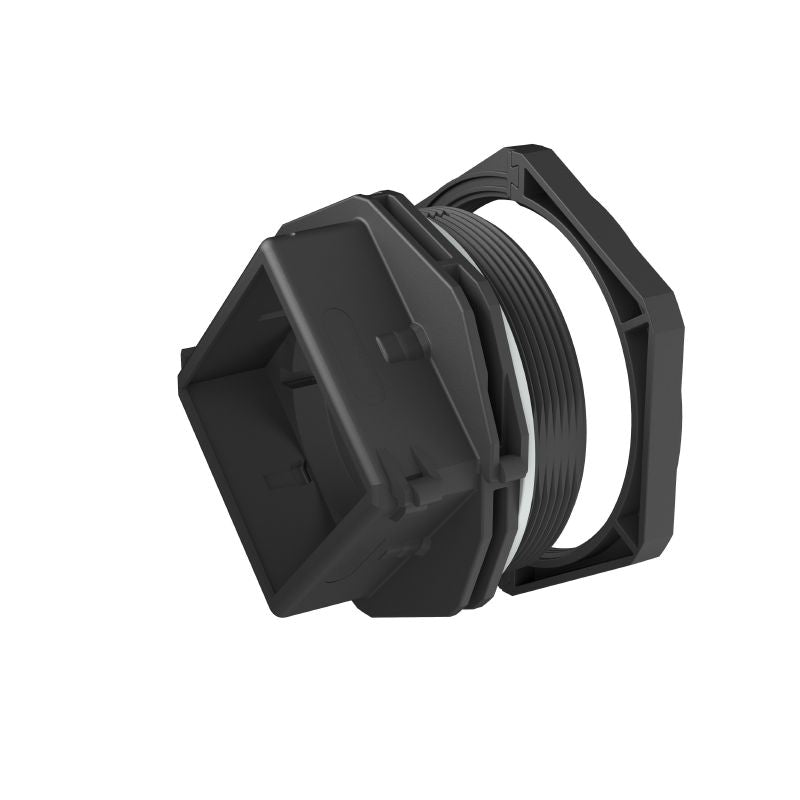

2584130000 - M50 BK Cable Gland, 24.7mm Height, IP66 Rated (Pack of 5)

2584130000 - M50 BK Cable Gland, 24.7mm Height, IP66 Rated (Pack of 5)

SKU: 2584130000   Download PDF

Select a Variant:
  • 2584130000 - M50 BK Cable Gland, 24.7mm Height, IP66 Rated (Pack of 5)
Qty:
Now $156.32   Web pricing policy
BEFORE   $0.00 Now $156.32 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Presenting the CABTITE CGS M50 BK, a versatile separable cable gland expertly engineered for efficient cable entry applications Constructed from glass fiber-reinforced polyamide, it features a striking deep black hue Measuring 247 mm in height, 397 mm in depth, and 72 mm in width, this cable gland is designed to perform well within a temperature range of -40 °C to 120 °C Additionally, it complies with the IP66 standard for protection against dust and water, making it an excellent choice for rigorous environments.

Features and Benefits:

    •Glass fibre-reinforced polyamide construction.

    •IP66 protection rating.

    •Operating temperature range of -40 °C to 120 °C.

    •Sealing element options: 1 large or 4 small sealing elements.

    •Tightening torque ranging from 6.8 Nm to 7 Nm.

    •Halogen-free materials.

    •Compliant with RoHS and REACH SVHC regulations.

Specifications:

 Depth 39.7 mm
 Height 24.7 mm
 Width 72 mm
 Length of thread 15 mm
 Opening diameter 50 mm
 Pitch of thread 1.5 mm
 AF size 1 68 mm
 AF size 2 58 mm
 UL 94 flammability rating V-0
