2891540000 - Black 70mm Cable Entry Frame, IP66 Rated Polyamide

2891540000 - Black 70mm Cable Entry Frame, IP66 Rated Polyamide

SKU: 2891540000   Download PDF

Select a Variant:
  • 2891540000 - Black 70mm Cable Entry Frame, IP66 Rated Polyamide
Qty:
Now $30.51   Web pricing policy
BEFORE   $0.00 Now $30.51 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

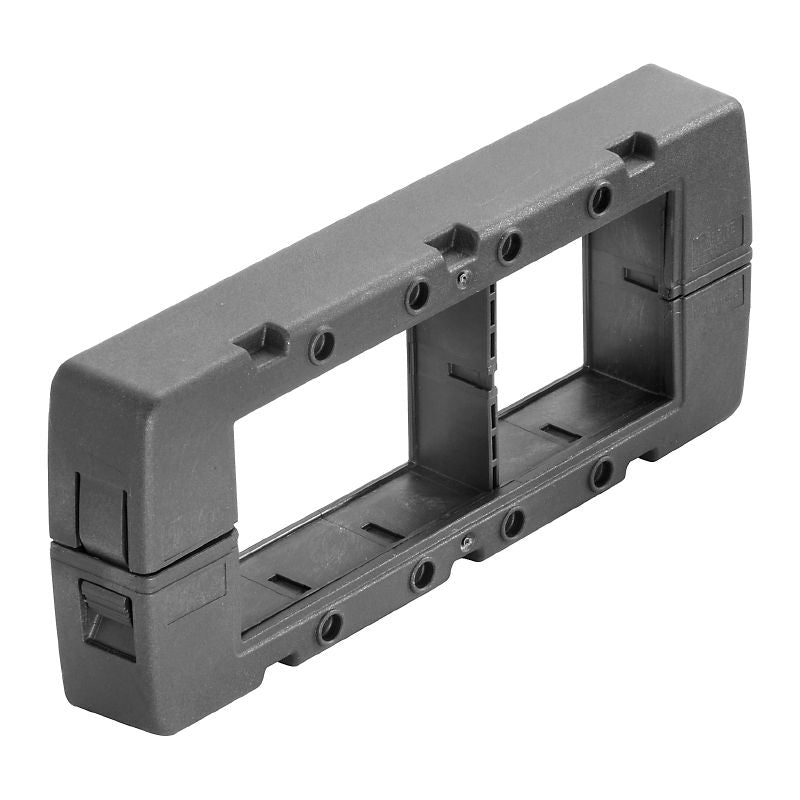

Introducing the CABTITE FRFT 24/10, a robust frame crafted specifically for cable entry systems Built from glass-fiber-reinforced polyamide, this product showcases a striking deep black hue Its dimensions are 70 mm in height, 81 mm in width, and 196 mm in depth, making it an excellent fit for a variety of applications With an impressive operating temperature range of -40 °C to 120 °C and an IP66 rating for protection, this frame is expertly designed to perform reliably in diverse environments.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Halogen-free, enhancing environmental safety.

    •Includes multiple sealing options for secure assembly.

    •V-0 rated for UL 94 flammability, indicating good fire resistance.

Specifications:

 Depth: 19.6 mm
 Height: 70 mm
 Width: 81 mm
 Operating temperature: -40 °C to 120 °C
 Protection class (UL): Type 12, Type 4X
 Protection degree: IP66
 Tightening torque: 3 Nm
 Opening length: 113.5 mm
 Opening width: 36 mm
 Basic material: Polyamide, glass fibre-reinforced
 Number of sealing elements: 2 large sealing elements and 4 small sealing elements or 1 large sealing element and 6 small sealing elements or 10 small sealing elements
