2779370000 - Grey TPE Cable Entry Plate 58mm x 149.6mm, IP66 Rated (Pack of 10)

SKU: SKU: 2779370000 Download PDF

Select a Variant:

2779370000 - Grey TPE Cable Entry Plate 58mm x 149.6mm, IP66 Rated (Pack of 10)

SET THE QTY:

Now $481.82 Web pricing policy

~~BEFORE $0.00~~ Now $481.82 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

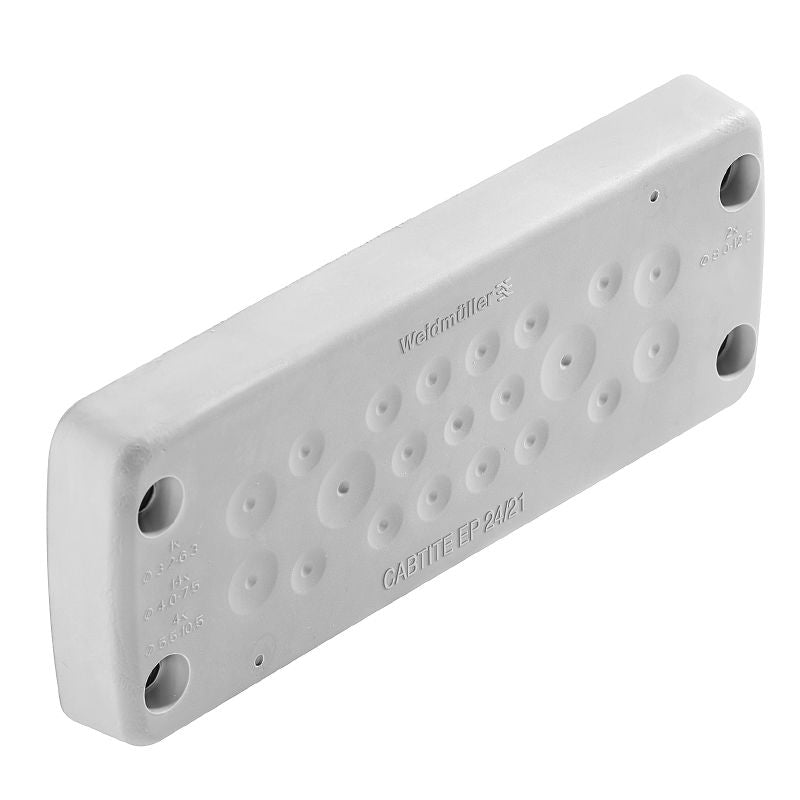

Enhance your cable management with this grey cable entry plate, crafted specifically for the Cabtite cable entry system Constructed from thermoplastic elastomer (TPE), this durable plate measures 58 mm in height, 1496 mm in width, and 202 mm in depth It can function effectively in temperatures ranging from -40 °C to 90 °C and boasts an impressive IP66 protection rating, making it ideal for a variety of environments.

Features and Benefits:

•Compliant with RoHS without exemption.

•Holds up to 21 connectable cables of various diameter ranges.

•Keeps the environment protected with an IP66 rating.

Specifications:

Operating temperature	-40 °C...90 °C
Protection class (UL)	Type 1, Type 12, Type 4X
Protection degree	IP66
Basic material	TPE
Tightening torque	3.5 Nm
UL 94 flammability rating	V-0
Cable entries	[{'number': 1, 'cable diameter min': '3.2 mm', 'cable diameter max': '6.3 mm', 'cable type': 'Round cable'}, {'number': 14, 'cable diameter min': '4 mm', 'cable diameter max': '7.5 mm', 'cable type': 'Round cable'}, {'number': 4, 'cable diameter min': '5.5 mm', 'cable diameter max': '10.5 mm', 'cable type': 'Round cable'}, {'number': 2, 'cable diameter min': '8 mm', 'cable diameter max': '12.5 mm', 'cable type': 'Round cable'}]
UL File Number	E223801
GTIN (EAN)	4064675048947
