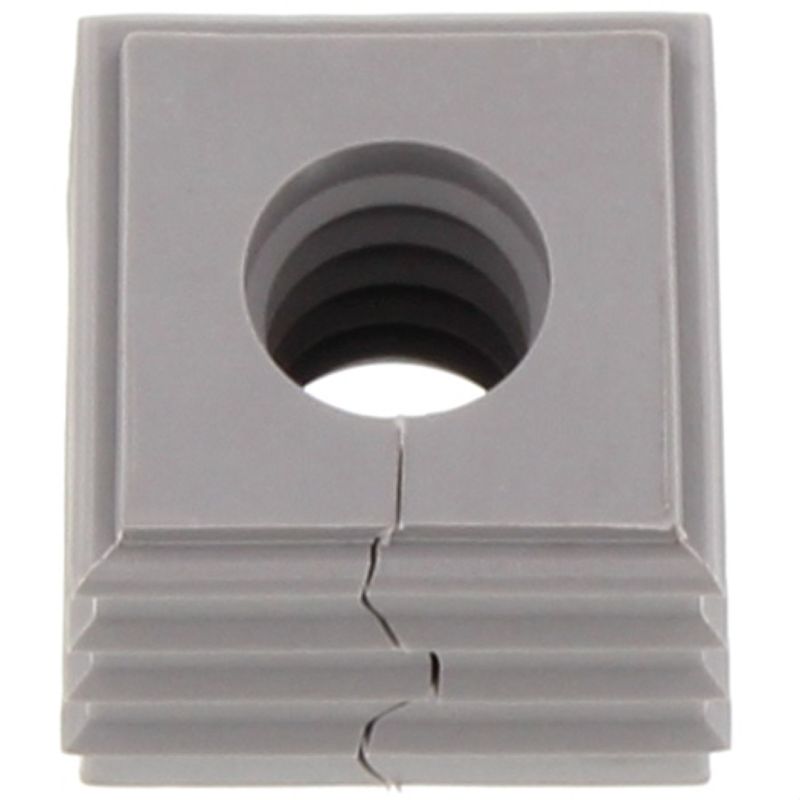

2584630000 - TPE Light Grey Sealing Element 20.3mm, IP66 Rated (Pack of 10)

SKU: SKU: 2584630000 Download PDF

Select a Variant:

2584630000 - TPE Light Grey Sealing Element 20.3mm, IP66 Rated (Pack of 10)

SET THE QTY:

Now $21.43 Web pricing policy

~~BEFORE $0.00~~ Now $21.43 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the Cabtite sealing element, a reliable cable entry system crafted from thermoplastic elastomer (TPE) and presented in a subtle light grey hue Measuring 203 mm in both height and width, with a depth of 177 mm, this innovative component is built to function optimally within a temperature range of -40 °C to 90 °C With an impressive IP66 rating, it offers excellent protection against harsh environmental conditions, making it an essential addition to your assembly needs.

Features and Benefits:

•Operating temperature range of -40 °C to 90 °C.

•Compliant with RoHS without exemptions.

•Protection degree of IP66.

•Net weight of 5.7 g.

•Basic material is TPE.

•Outer cable diameter range from 9 mm to 10 mm.

•UL 94 flammability rating of V-0.

Specifications:

Depth	17.7 mm
Height	20.3 mm
Width	20.3 mm
Outer cable diameter, max.	10 mm
Outer cable diameter, min.	9 mm
RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%
ETIM 6.0	EC000879
ETIM 7.0	EC000879
ETIM 8.0	EC000879
ETIM 9.0	EC000879
ETIM 10.0	EC000879
ECLASS 9.0	27-14-44-21
ECLASS 9.1	27-14-44-21
ECLASS 10.0	27-14-44-21
ECLASS 11.0	27-14-44-21
ECLASS 12.0	27-14-08-07
ECLASS 13.0	27-14-08-07
ECLASS 14.0	27-14-08-07
ECLASS 15.0	27-14-08-07
