1909930000 - M32 Nickel-Plated Brass Cable Gland, 15-21mm, IP68 Rated (Pack of 10)

SKU: SKU: 1909930000 Download PDF

Select a Variant:

1909930000 - M32 Nickel-Plated Brass Cable Gland, 15-21mm, IP68 Rated (Pack of 10)

SET THE QTY:

Now $224.61 Web pricing policy

~~BEFORE $0.00~~ Now $224.61 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

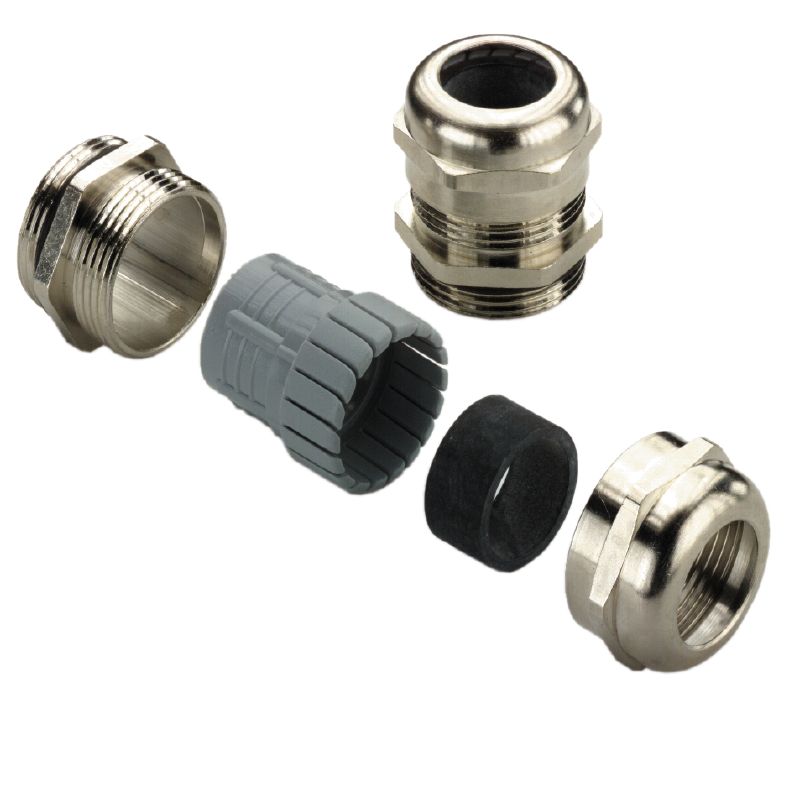

Introducing the VG M32-1/MS68 brass cable gland, expertly crafted for straight applications This component features a metric size of M32 and can accommodate cable diameters between 15 mm and 21 mm With an impressive protection rating of IP54, IP66, IP67, and IP68, it safeguards against water ingress under pressures of up to 5 bar for 30 minutes Made from durable nickel-plated brass, the cable gland also includes a polyamide clamp insert for enhanced stability.

It's designed to perform efficiently across a wide temperature range, from -40 °C to 100 °C, making it versatile for various environments.

Features and Benefits:

•Approval conditions: DNV.

•RoHS compliant with exemptions.

•Halogen-free.

•Seal insert made of CR.

•Tightening torque specifications provided.

Specifications:

Outer cable diameter (min)	15 mm
Outer cable diameter (max)	21 mm
Length of thread	8 mm
Protection class (UL)	Type 4X
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
Operating temperature range (min)	-40 °C
Operating temperature range (max)	100 °C
Torque for cap nut (min)	14.5 Nm
Torque for cap nut (max)	15.5 Nm
Torque for connecting adapter (min)	5.5 Nm
Torque for connecting adapter (max)	6.5 Nm
Basic material	Brass, nickel-plated
