2583780000 - Black Polyamide Cable Entry System, IP66 Rated, 70mm High

2583780000 - Black Polyamide Cable Entry System, IP66 Rated, 70mm High

SKU: 2583780000

Select a Variant:
  • 2583780000 - Black Polyamide Cable Entry System, IP66 Rated, 70mm High
Qty:
Now $25.26   Web pricing policy
BEFORE   $0.00 Now $25.26 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Reviews
Product Information

Description:

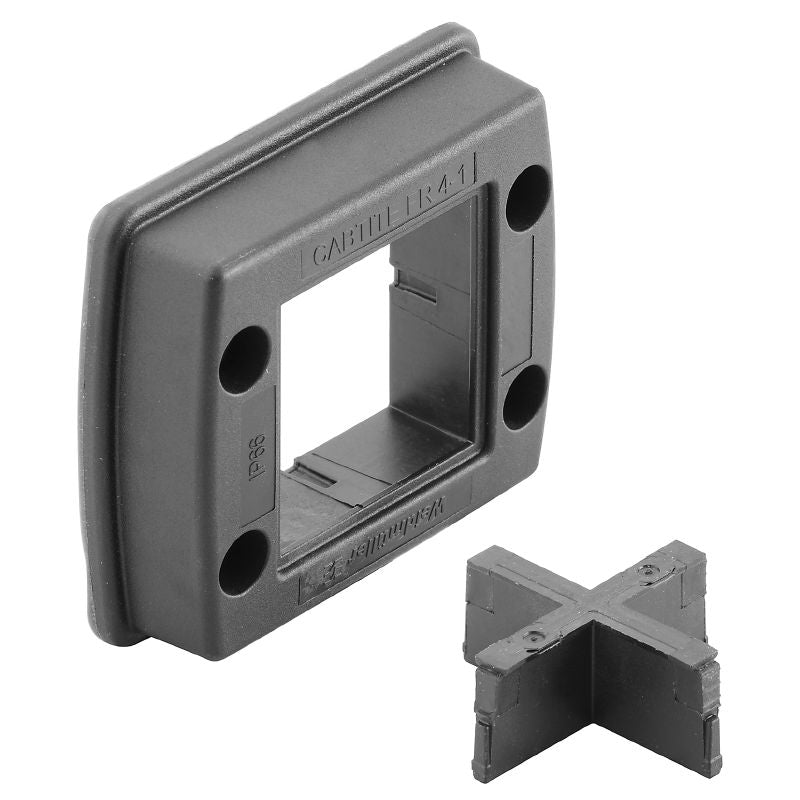

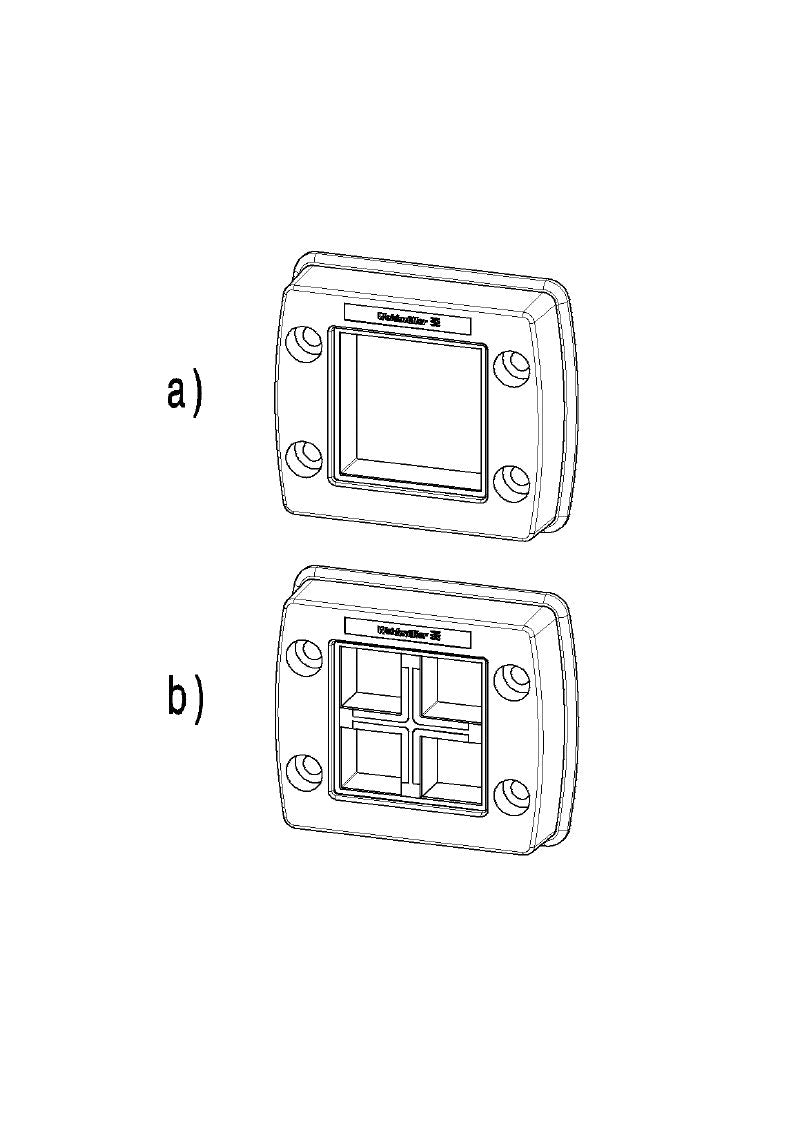

Introducing the CABTITE FR 4-1 BK SET, an advanced cable entry system made from glass fiber-reinforced polyamide Its striking deep black color not only adds visual appeal but also offers exceptional durability Engineered to perform optimally in extreme conditions, this system can withstand temperatures from -40 °C to 120 °C With dimensions measuring 70 mm in height, 81 mm in width, and 196 mm in depth, it boasts an IP66 protection rating, making it a reliable choice for various applications.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

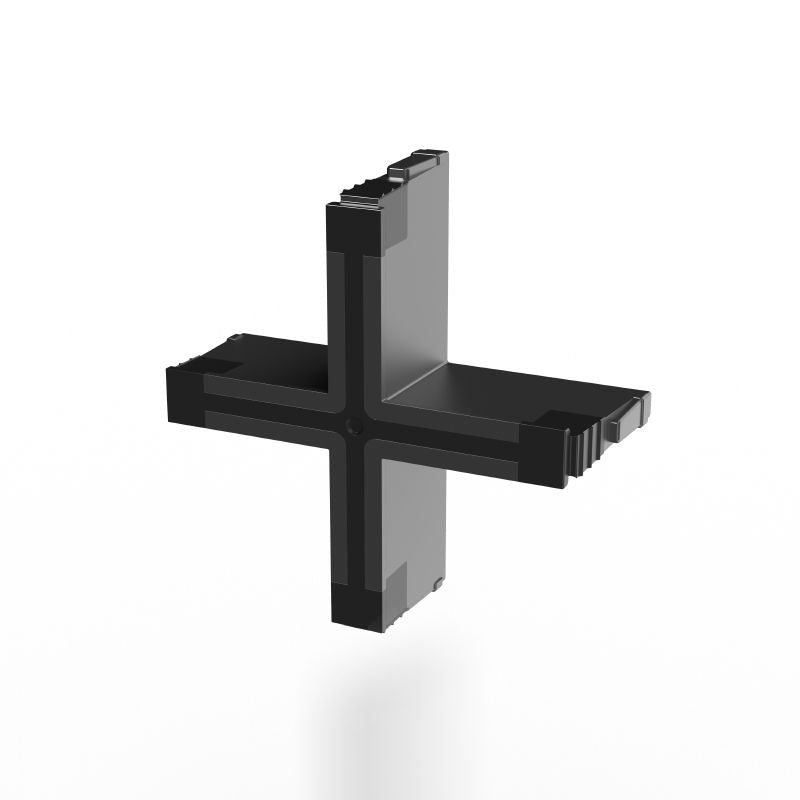

    •Includes a sealing element for efficient protection.

    •UL 94 flammability rating of V-0.

    •Fixing material for mounting is not included.

Specifications:

 Depth: 19.6 mm
 Height: 70 mm
 Width: 81 mm
 Diameter: 5.5 mm
 Operating temperature: -40 °C to 120 °C
 Protection degree: IP66
 Sealing: TPE
 Tightening torque: 3 Nm
 Basic material: Polyamide, glass fibre-reinforced
 Protection class (UL): Type 12, Type 4X
