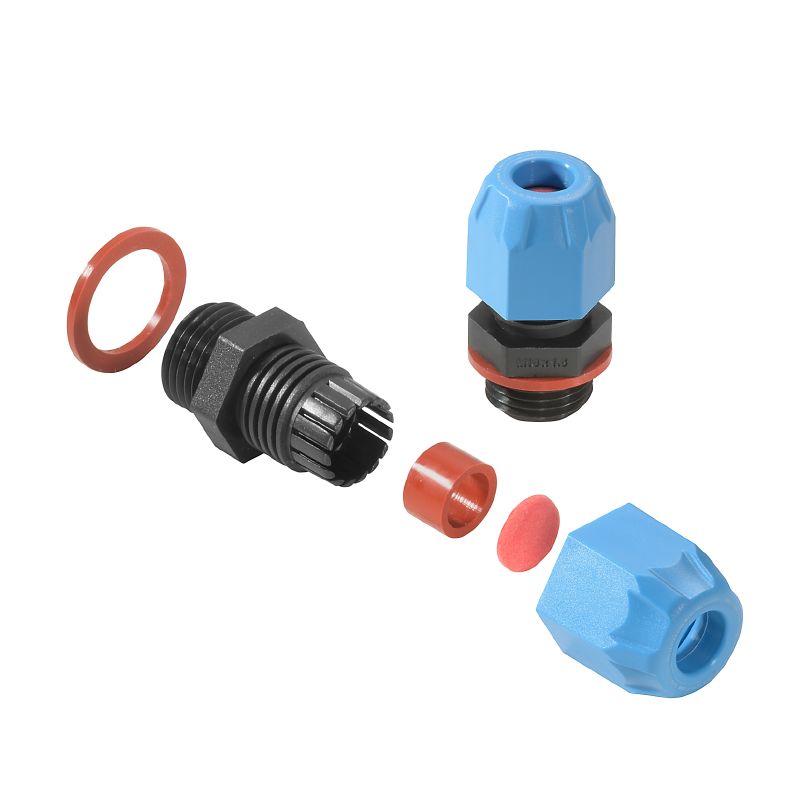

2722370000 - M16 Polyamide Cable Gland for 6-10mm Cables (Pack of 50)

2722370000 - M16 Polyamide Cable Gland for 6-10mm Cables (Pack of 50)

SKU: 2722370000   Download PDF

Select a Variant:
  • 2722370000 - M16 Polyamide Cable Gland for 6-10mm Cables (Pack of 50)
Qty:
Now $236.91   Web pricing policy
BEFORE   $0.00 Now $236.91 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the VG Exi 7J, an exceptionally safe cable gland crafted for straightforward installations with a metric M16 diameter This component accommodates cable outer diameters ranging from 6 mm to 10 mm Engineered to meet stringent safety standards including CE, EAC, ATEX, and IECEX, it is ideal for use in explosion-risk settings Constructed from robust Polyamide 6, this cable gland boasts impressive protection ratings from IP54 to IP68 and can endure pressures of up to 5 bar for 30 minutes.

With a temperature tolerance of -60 °C to 70 °C, it is a reliable choice for various challenging environments.

Features and Benefits:

    •Supports outer cable diameters from 6 mm to 10 mm.

    •Made from durable Polyamide 6.

    •Approvals include CE, EAC, ATEX, IECEX, and INMETRO.

    •Protection degree IP54, IP66, IP67, IP68 - 5 bar for 30 minutes.

    •Impact resistance of 7 joules as per IEC 60079-0.

    •Suitable for use in intrinsically safe installations in hazardous areas.

Specifications:

 Operating temperature range (min) -60 °C
 Operating temperature range (max) 70 °C
 Installation guidelines See assembly instructions
 Length of thread 10 mm
 Pitch of thread 1.5 mm
 Tightening torque 2.5 Nm
 Torque for cap nut (max) 3 Nm
 Torque for cap nut (min) 2 Nm
 Torque for connecting adapter (max) 3 Nm
 Torque for connecting adapter (min) 2 Nm
 Seal insert Silicone
 Sealing Silicone
 Net weight 10 g
 Height 35.2 mm
 Length 29.5 mm
 External thread M 16
 Halogen No
 Explosion protection type Intrinsically safe Ex i
 Approval no. (ATEX) IMQ 13 ATEX 010 X
 Approval no. (IECEx) IECEx IMQ 13.0003X
 Approval no. (INMETRO) DNV 18.0150 X/01
