2722120000 - IP68 Polyamide Cable Gland for 11-14mm Cables (Pack of 50)

SKU: SKU: 2722120000 Download PDF

Select a Variant:

2722120000 - IP68 Polyamide Cable Gland for 11-14mm Cables (Pack of 50)

SET THE QTY:

Now $292.61 Web pricing policy

~~BEFORE $0.00~~ Now $292.61 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

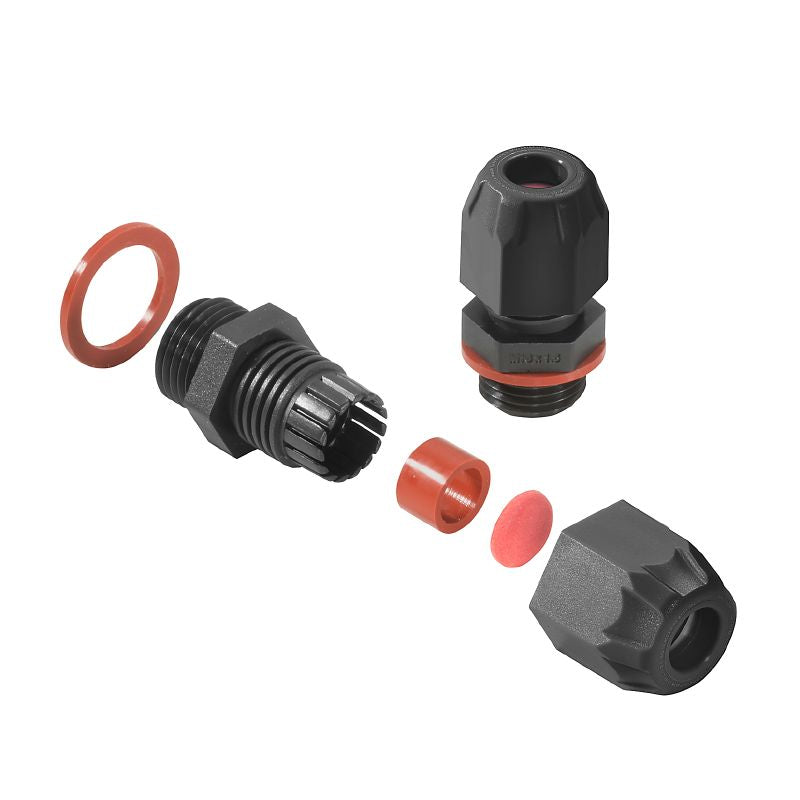

Introducing the VG M20 EXE 11-14 SI7J G4 straight cable gland, expertly constructed from polyamide 6 This versatile gland accommodates cables with an outer diameter between 11 mm and 14 mm and offers exceptional protection with ratings of IP54, IP66, IP67, and IP68 Capable of enduring pressure up to 5 bar for 30 minutes, this reliable component is also RoHS compliant and certified with CE, EAC, and ATEX standards.

Ideal for a wide range of applications, it operates efficiently across a temperature range of -60 °C to 70 °C.

Features and Benefits:

•Made from durable polyamide 6.

•Protection degree of IP54, IP66, IP67, IP68.

•Improved safety Ex e explosion protection type.

•Compliant with environmental regulations like RoHS.

•Installation instructions available.

•Impact resistance of 7 joules.

•Not halogenated.

Specifications:

Height	35 mm
Length	30 mm
Operating temperature	-60 °C...70 °C
Outer cable diameter, min.	11 mm
Outer cable diameter, max.	14 mm
Length of thread	10 mm
Tightening torque	5.5 Nm
Max torque for cap nut	6 Nm
Min torque for cap nut	5 Nm
Max torque for connecting adapter	6 Nm
Min torque for connecting adapter	5 Nm
UL 94 flammability rating	HB
AF size 1	27 mm
AF size 2	27 mm
Seal insert	Silicone
Sealing	Silicone
