2743600000 - TPE Cable Entry Plate, 44mm High, 42 Cable Capacity (Pack of 10)

SKU: SKU: 2743600000 Download PDF

Select a Variant:

2743600000 - TPE Cable Entry Plate, 44mm High, 42 Cable Capacity (Pack of 10)

SET THE QTY:

Now $234.50 Web pricing policy

~~BEFORE $0.00~~ Now $234.50 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

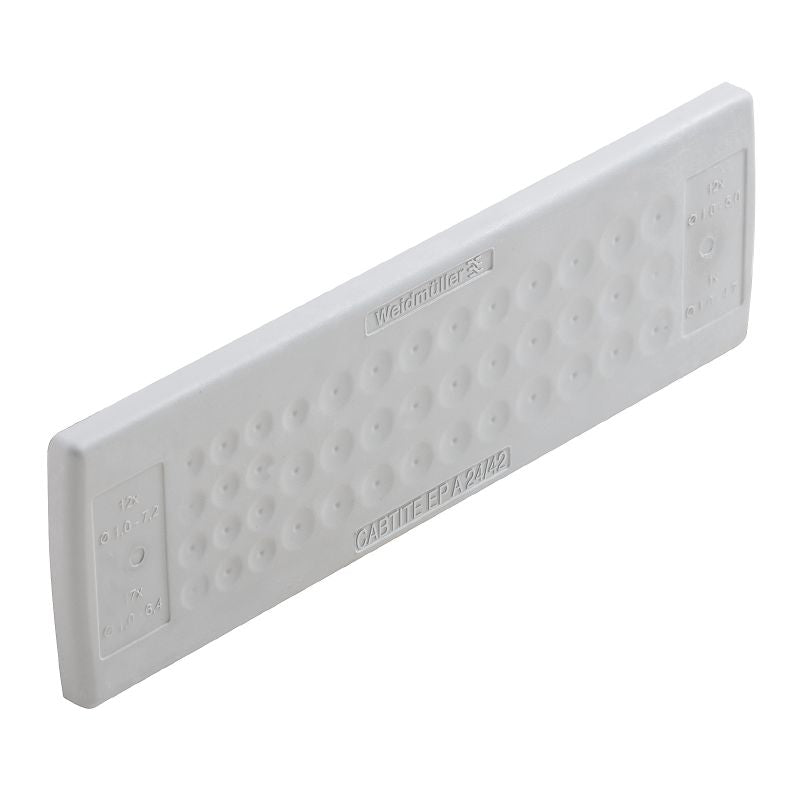

Introducing the CABTITE EP A, a robust cable entry plate expertly crafted from TPE material and finished in a sleek grey Measuring 44 mm in height, 142 mm in width, and 12 mm in depth, this versatile accessory is designed to function in a broad temperature range of -40 °C to 90 °C With an IP54 protection class rating, it ensures reliable performance in various environments This innovative plate supports the connection of up to 42 cables and accommodates various cable diameters, making it an ideal solution for diverse wiring needs.

Additionally, it meets RoHS compliance standards and holds UL approvals, confirming its quality and safety for your projects.

Features and Benefits:

•Made of TPE material.

•IP54 protection degree.

•Operating temperature range: -40 °C to 90 °C.

•Snap-on type mounting.

Specifications:

General ordering data	Type: CABTITE EP A 24/42 GY, Order No.: 2743600000, GTIN (EAN): 4064675123316, Qty.: 10 items

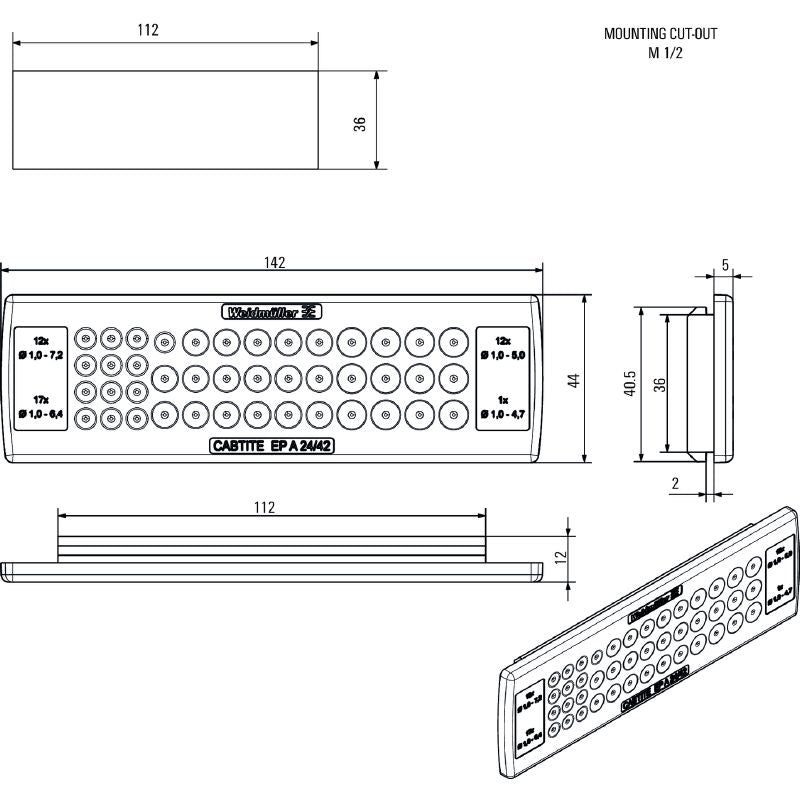

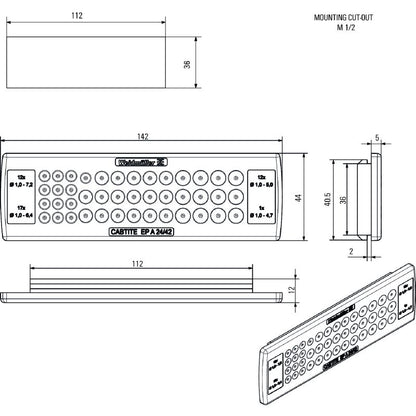

Dimensions	Height: 44 mm, Width: 142 mm, Depth: 12 mm (0.472 inch, 1.732 inch, 5.591 inch)
Wall thickness	min. 1.5 mm, max. 2.5 mm
Number of connectable cables	42
Cable entries	12 cables with diameter 1 mm to 7.2 mm, 17 cables with diameter 1 mm to 6.4 mm, 12 cables with diameter 1 mm to 5 mm, 1 cable with diameter 1 mm to 4.7 mm
Protection class (UL)	Type 1, Type 12
UL 94 flammability rating	V-0
