2722270000 - Polyamide Cable Gland IP54/IP68, 12-17mm Diameter (Pack of 50)

SKU: SKU: 2722270000 Download PDF

Select a Variant:

2722270000 - Polyamide Cable Gland IP54/IP68, 12-17mm Diameter (Pack of 50)

SET THE QTY:

Now $435.44 Web pricing policy

~~BEFORE $0.00~~ Now $435.44 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

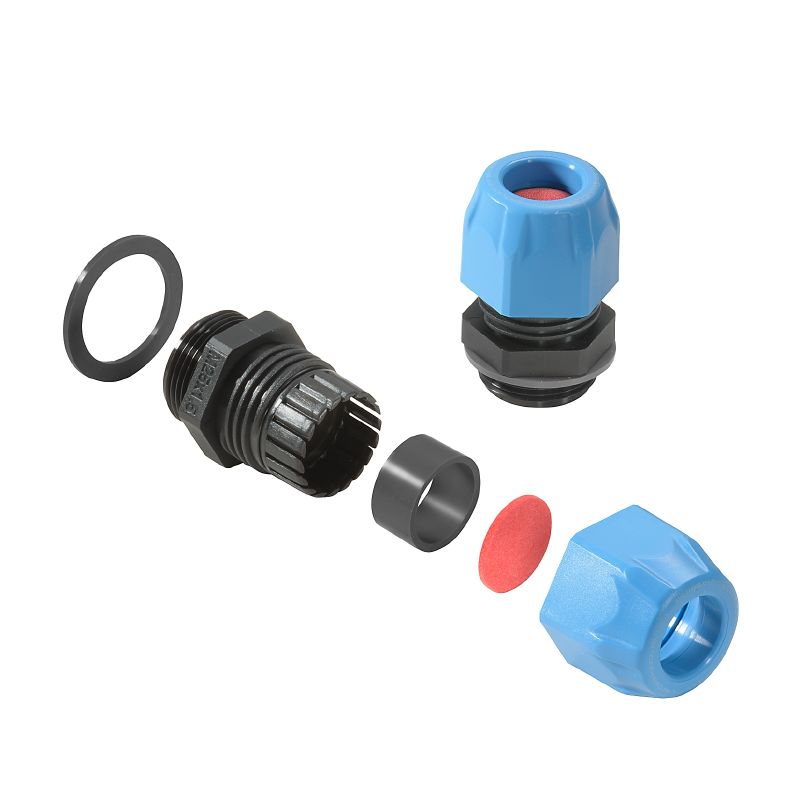

Introducing the VG M25 EXI cable gland, crafted from durable polyamide 6 This straight cable gland accommodates outer cable diameters from 12 mm to 17 mm, ensuring a secure fit It boasts multiple protection ratings, including IP54, IP66, IP67, and IP68, providing reliable performance at 5 bar for up to 30 minutes Additionally, it comes with various approvals such as CE, EAC, ATEX, and IECEX, and complies with RoHS regulations, making it an ideal choice for a range of applications.

Features and Benefits:

•Operating temperature from -40 °C to 70 °C.

•Intrinsic safety according to Ex i rating.

•Halogen-free material used.

•Impact resistance rating of 7 joules per IEC 60079-0.

•Tightening torque of 5 Nm for the gland.

Specifications:

Height	40.2 mm
Length	34 mm
Net weight	16.35 g
Outer cable diameter min	12 mm
Outer cable diameter max	17 mm
Thread pitch	1.5 mm
Approval conditions	['ATEX', 'IECEX']
Certificates	{'ATEX': 'IMQ 13 ATEX 010 X', 'IECEx': 'IECEx IMQ 13.0003X', 'INMETRO': 'DNV 18.0150 X/01'}
Flammability rating	HB
Protection degrees	['IP54', 'IP66', 'IP67', 'IP68 - 5 bar (30 min.)']
Standards	['IEC 60079-0', 'EN 60079-0', 'IEC 60079-7', 'EN 60079-7', 'EN 60079-31', 'IEC 60079-31']
