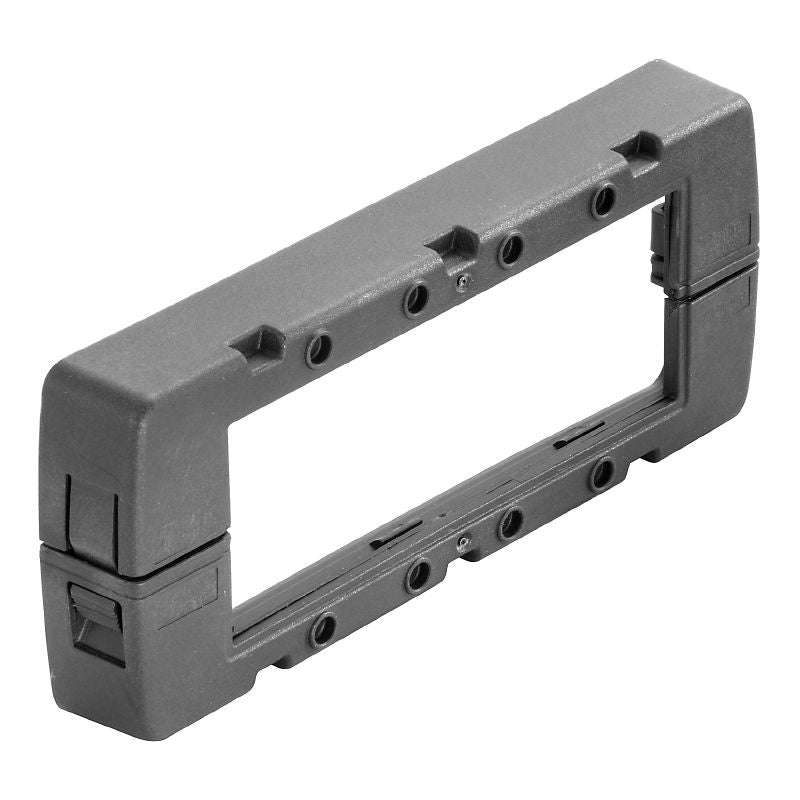

2891550000 - IP66 Glass Fibre Cable Entry Frame, 64mm Height

SKU: SKU: 2891550000 Download PDF

Select a Variant:

2891550000 - IP66 Glass Fibre Cable Entry Frame, 64mm Height

SET THE QTY:

Now $68.13 Web pricing policy

~~BEFORE $0.00~~ Now $68.13 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the CABTITE FRFT-AD 24/10, a robust frame for cable entry systems crafted from glass fibre-reinforced polyamide Engineered to withstand extreme temperatures from -40 °C to 120 °C, it boasts an impressive IP66 protection rating, making it reliable in various environments With dimensions of 64 mm in height, 153 mm in width, and a depth of 242 mm, this frame is both compact and efficient It complies fully with RoHS regulations, ensuring a commitment to environmental safety without any exemptions.

Features and Benefits:

•Constructed from glass fibre-reinforced polyamide.

•IP66 protection class.

•Operating temperature range of -40 °C to 120 °C.

•Halogen-free material.

•Includes sealing made of TPE.

•Tightening torque specification of 3 Nm.

•UL 94 flammability rating of V-0.

Specifications:

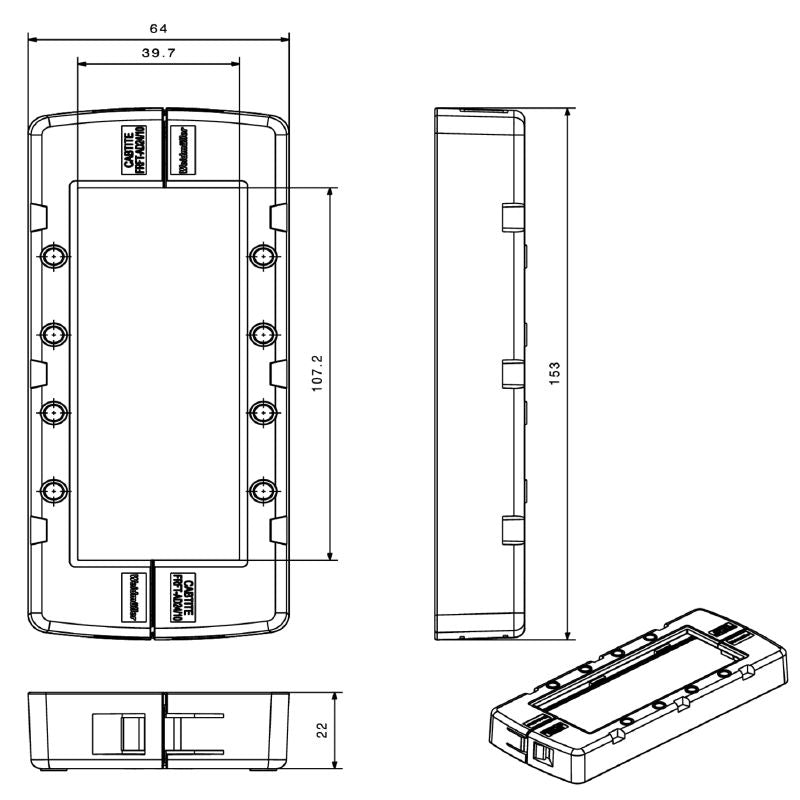

Dimensions (mm)	Height: 64, Width: 153, Depth: 24.2
Dimensions (inches)	Height: 2.52, Width: 6.024, Depth: 0.953
RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%
Protection class (UL)	Type 12, Type 4X
Sealing	TPE
Silicone	No
Flammability rating	V-0
ETIM Classification	EC002624, EC002624, EC002624, EC002624, EC002624, EC002624
ECLASS Classification	27-18-28-15, 27-18-92-65, 27-18-28-15, 27-18-28-15, 27-18-28-15, 27-18-28-15
