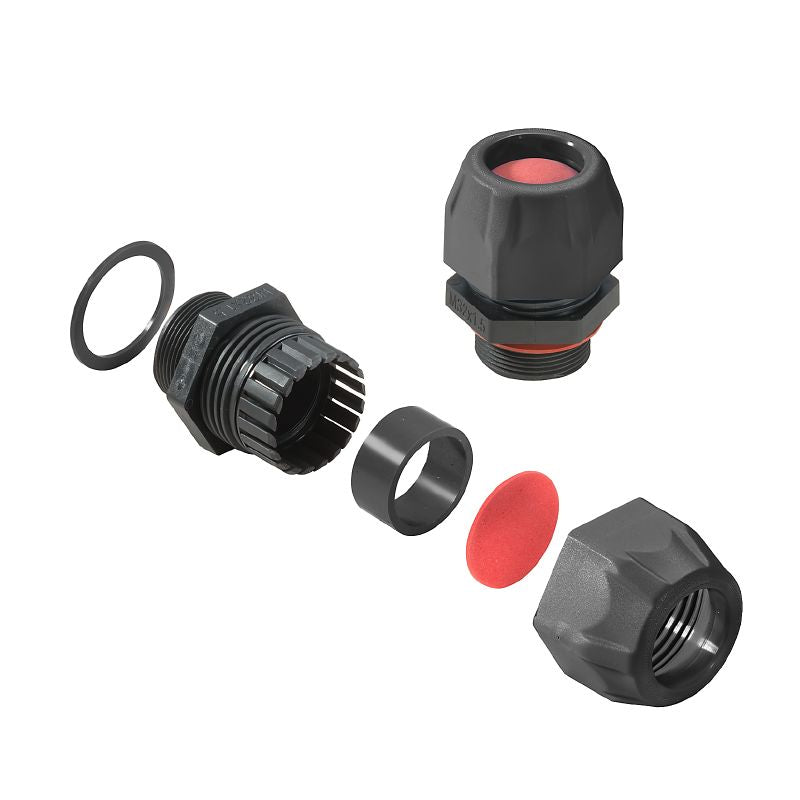

2722020000 - M32 Plastic Cable Gland, IP66, 19-25mm, Polyamide 6 (Pack of 20)

2722020000 - M32 Plastic Cable Gland, IP66, 19-25mm, Polyamide 6 (Pack of 20)

SKU: 2722020000   Download PDF

Select a Variant:
  • 2722020000 - M32 Plastic Cable Gland, IP66, 19-25mm, Polyamide 6 (Pack of 20)
Qty:
Now $226.13   Web pricing policy
BEFORE   $0.00 Now $226.13 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the VG Exe 7J, a premium straight Ex plastic cable gland tailored for M32 applications It accommodates outer diameters between 19 mm and 25 mm and boasts impressive ingress protection ratings of IP54, IP66, IP67, and IP68 for brief periods when under pressure Crafted from durable polyamide 6, this cable gland is built to endure extreme temperatures ranging from -40 °C to 70 °C It also complies with essential safety and environmental certifications, making it a reliable choice for various installations.

Features and Benefits:

    •Improved safety explosion protection type Ex e.

    •Impact resistance rated at 7 joules according to IEC 60079-0.

    •Halogen free material.

    •Complies with RoHS requirements.

    •Dimensions fit standard M32 threads.

Specifications:

 Height 46.7 mm
 Length 40.5 mm
 Operating temperature -40 °C to 70 °C
 Outer cable diameter, min. 19 mm
 Outer cable diameter, max. 25 mm
 Protection degree IP54, IP66, IP67, IP68 - 5 bar (30 min.)
 Seal insert CR
 Tightening torque 9 Nm
 Pitch of thread 1.5 mm
 UL 94 flammability rating HB
 Basic material Polyamide 6
