Description:

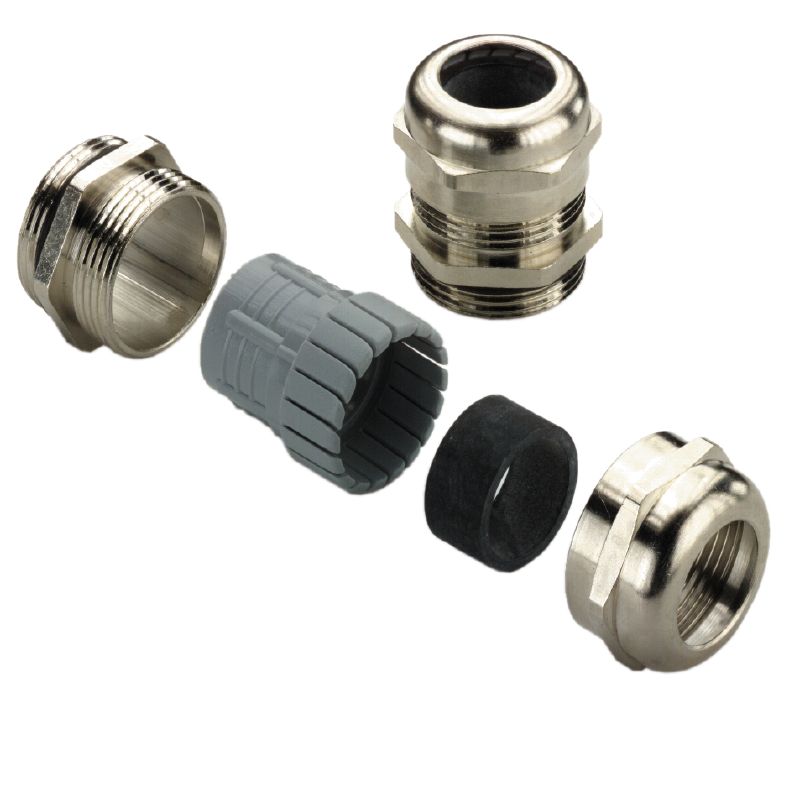

Introducing the VG M16-1/MS68 straight cable gland, expertly crafted for M16 threading It accommodates cable diameters ranging from 5 mm to 10 mm, ensuring reliable protection with an impressive IP rating of IP54, IP66, IP67, and IP68, capable of withstanding 30 minutes at a pressure of 5 bar Constructed from durable nickel-plated brass, this cable gland is built for long-lasting performance and versatility in various applications.

Features and Benefits:

•Compliant with RoHS exemptions..

•Operating temperature range from -40 °C to 100 °C..

•Halogen-free cable gland..

•Includes various protection degrees (IP54, IP66, IP67, IP68)..

Specifications:

Order No.	1909910000
GTIN (EAN)	4032248536832
Height	28.5 mm
Length	35.5 mm
Basic material	Brass, nickel-plated
Clamp insert	Polyamide
O-Ring	NBR
Seal insert	CR
Tightening torque	7 Nm
Max torque for cap nut	8.5 Nm
Min torque for cap nut	7.5 Nm
Max torque for connecting adapter	4.5 Nm
Min torque for connecting adapter	3.5 Nm
Outer cable diameter, min.	5 mm
Outer cable diameter, max.	10 mm
Pitch of thread	1.5 mm
Protection class (UL)	Type 4X
Approval conditions	DNV
Certificate no. cable gland (cULus)	E-199260
Certificate no. cable gland (GERMLLOYD)	E-14047
Certificate no. cable gland (UL)	E-199260
