2583740000 - IP66 Black Polyamide Frame, 70mm Height for Cable Systems

2583740000 - IP66 Black Polyamide Frame, 70mm Height for Cable Systems

SKU: 2583740000   Download PDF

Select a Variant:
  • 2583740000 - IP66 Black Polyamide Frame, 70mm Height for Cable Systems
Qty:
Now $31.34   Web pricing policy
BEFORE   $0.00 Now $31.34 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

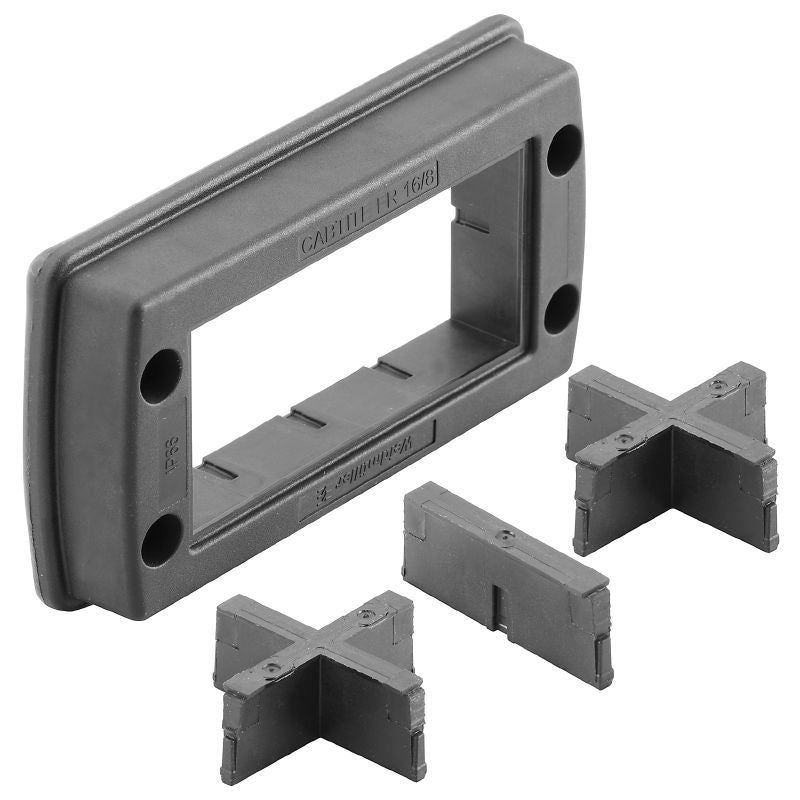

Introducing the CABTITE FR 16/8 BK SET, a robust frame specifically tailored for cable entry systems Constructed from durable polyamide reinforced with glass fibers, this frame boasts a striking deep black hue It measures 70 mm in height, 126 mm in width, and has a depth of 196 mm, making it a compact solution for your needs Designed to operate in challenging environments, it functions effectively within a temperature range of -40 °C to 120 °C.

With an impressive IP66 rating, this frame offers reliable protection against dust and water, ensuring durability and peace of mind.

Features and Benefits:

    •Constructed from polyamide, glass-fibre-reinforced material.

    •Compliant with RoHS and free from halogens.

    •IP66 rated for protection against dust and water.

    •Contains large sealing elements to ensure proper sealing.

    •UL 94 flammability rating of V-0.

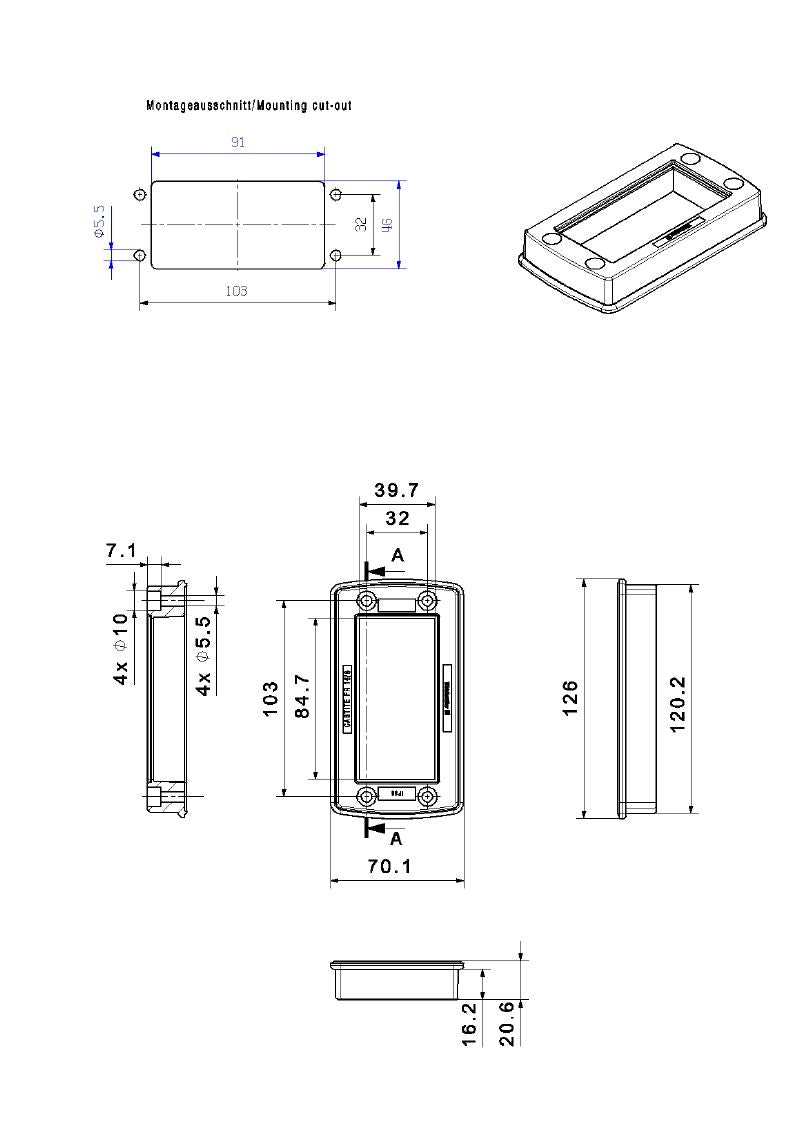

Specifications:

 Height 70 mm
 Width 126 mm
 Depth 19.6 mm
 Diameter 5.5 mm
 Operating temperature -40 °C...120 °C
 Protection class (UL) Type 12, Type 4X
 Sealing TPE
 Tightening torque 3 Nm
 Opening length 91 mm
 Opening width 46 mm
 Net weight 42.48 g
 Fixing material Not included
