2722210000 - M12 IP66 Plastic Gland, 4-6.5mm Diameter, Polyamide 6 (Pack of 100)

2722210000 - M12 IP66 Plastic Gland, 4-6.5mm Diameter, Polyamide 6 (Pack of 100)

SKU: 2722210000   Download PDF

Select a Variant:
  • 2722210000 - M12 IP66 Plastic Gland, 4-6.5mm Diameter, Polyamide 6 (Pack of 100)
Qty:
Now $376.39   Web pricing policy
BEFORE   $0.00 Now $376.39 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

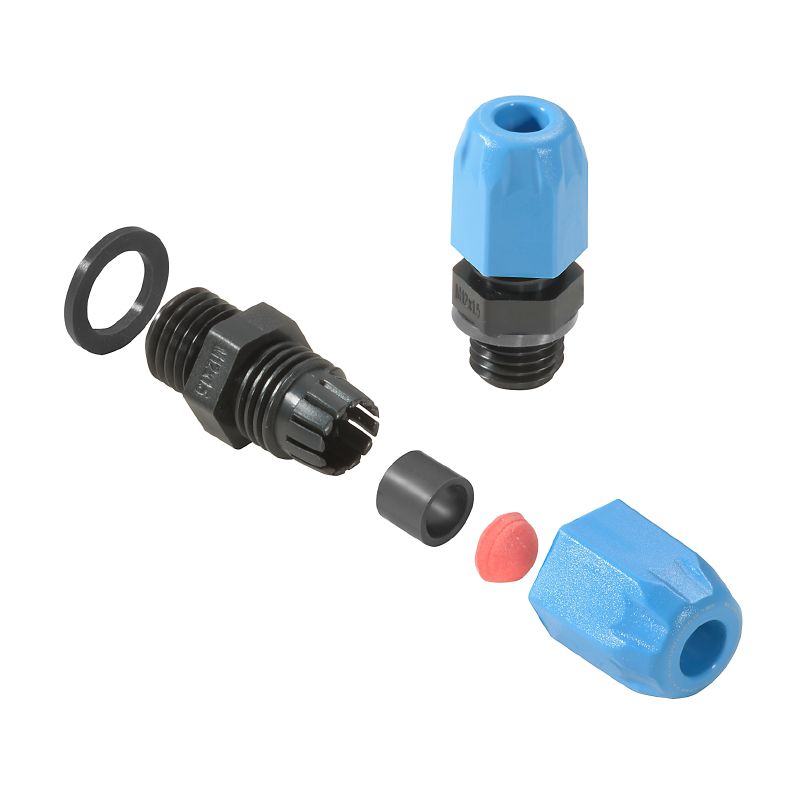

Introducing the VG Exi 7J, a versatile plastic cable gland specifically engineered for M12 applications This durable component accommodates outer diameters from 4 mm to 65 mm and is rated IP54, IP66, IP67, and IP68, providing robust protection in challenging environments, even under pressures up to 5 bar for 30 minutes Crafted from polyamide 6, it meets safety standards for explosive settings requiring intrinsic safety.

The VG Exi 7J operates effectively in extreme temperatures, offering reliable performance from -40 °C to 70 °C This cable gland is compliant with various industry regulations, making it a dependable choice for your next project.

Features and Benefits:

    •Rated for various IP protection degrees: IP54, IP66, IP67, IP68.

    •Intrinsic safety according to Ex i standards.

    •Halogen-free material.

    •Impact resistant up to 7 joules according to IEC 60079-0.

    •Available with metric external thread M12.

Specifications:

 Height 28.3 mm
 Length 22 mm
 Operating temperature -40 °C...70 °C
 Basic material Polyamide 6
 Outer cable diameter min 4 mm
 Outer cable diameter max 6.5 mm
 Operating temperature range, min -40 °C
 Operating temperature range, max 70 °C
 Length of thread 10 mm
 Pitch of thread 1.5 mm
 Tightening torque 2 Nm
 Protection degree with GWDR IP54, IP66, IP67, IP68 - 5 bar (30 min.)
 Approval conditions ATEX, IECEx
 Torque for cap nut, max 2.5 Nm
 Torque for cap nut, min 1.5 Nm
 Torque for connecting adapter, max 2.5 Nm
 Torque for connecting adapter, min 1.5 Nm
 UL 94 flammability rating HB
 Seal insert CR
 Sealing CR
