2722380000 - VG Exi 7-12 mm Cable Gland, Polyamide, IP68 Rated (Pack of 50)

SKU: SKU: 2722380000 Download PDF

Select a Variant:

2722380000 - VG Exi 7-12 mm Cable Gland, Polyamide, IP68 Rated (Pack of 50)

SET THE QTY:

Now $257.84 Web pricing policy

~~BEFORE $0.00~~ Now $257.84 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

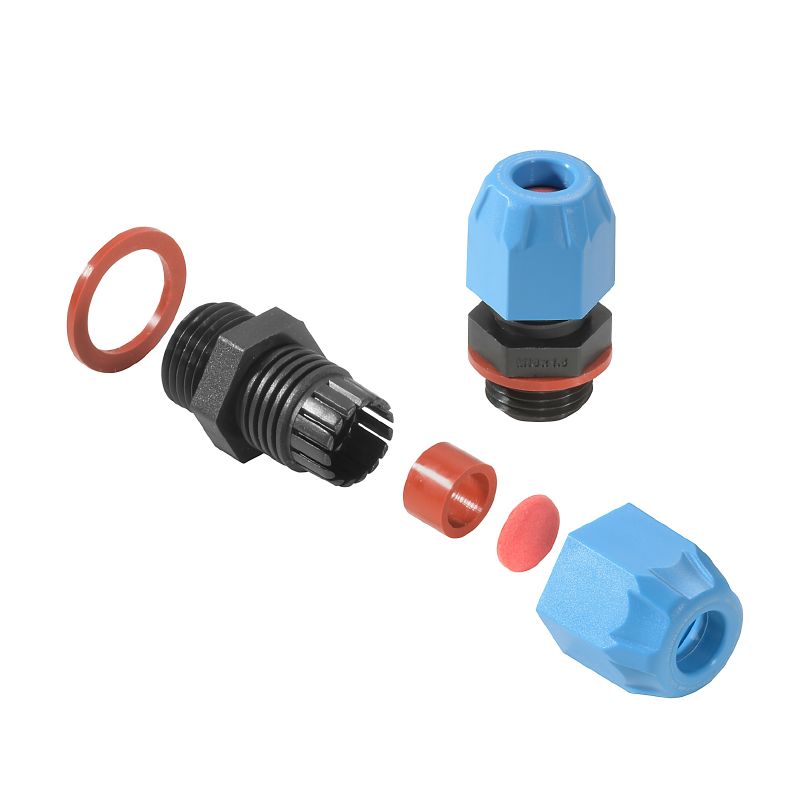

Introducing the VG Exi 7J, a robust straight cable gland perfect for cables with an outer diameter between 7 mm and 12 mm Crafted from high-quality Polyamide 6, this cable gland meets a variety of safety and quality standards, including CE and RoHS certifications It provides exceptional protection with IP ratings of IP54, IP66, IP67, and IP68 (withstand pressure of 5 bar for up to 30 minutes), making it reliable in challenging conditions.

Functioning effectively in temperatures ranging from -60 °C to 70 °C, it also ensures intrinsic safety for use in explosive environments, highlighting its versatility and dependability.

Features and Benefits:

•Compliant with CE, EAC, ATEX, IECEx, INMETRO certifications.

•IP54, IP66, IP67, and IP68 protection ratings.

•Made of robust Polyamide 6.

•Intrinsically safe design for explosive environments.

•Temperature range of -60 °C to 70 °C.

•Impact resistance of 7 joules in accordance with IEC 60079-0.

Specifications:

Height	35.8 mm
Length	30 mm
Outer cable diameter, min.	7 mm
Outer cable diameter, max.	12 mm
Length of thread	10 mm
Pitch of thread	1.5 mm
Tightening torque	5 Nm
Torque for cap nut, max.	6 Nm
Torque for cap nut, min.	5 Nm
Protection degree with GWDR	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
Seal insert	Silicone
Sealing	Silicone
