Product Information

Description:

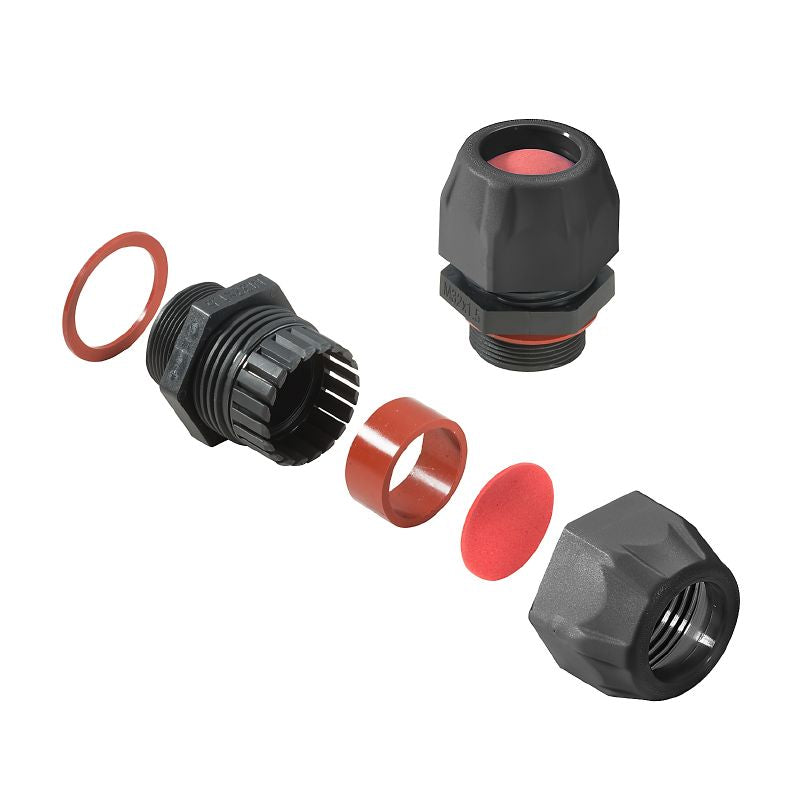

Introducing the VG M40 EXE 23-32 SI7J G4, a top-tier straight cable gland crafted from robust polyamide 6, ideal for environments where safety is paramount This versatile component is engineered to fit cables with an outer diameter between 23 mm and 32 mm It offers exceptional protection with ratings of IP54, IP66, IP67, and IP68 at 5 bar for a duration of 30 minutes Additionally, it meets various international standards, holding CE, EAC, ATEX, and IECEx certifications for added peace of mind during use in hazardous locations.

Features and Benefits:

•Compliant with RoHS without exemption.

•Improved safety type Ex e.

•Impact resistance of 7 joules according to IEC 60079-0.

•Silicone sealing insert for reliable sealing.

Specifications:

Height	55.9 mm
Length	50 mm
Operating temperature range, max.	70 °C
Operating temperature range, min.	-60 °C
Outer cable diameter, max.	32 mm
Outer cable diameter, min.	23 mm
Pitch of thread	1.5 mm
Tightening torque	17.5 Nm
UL 94 flammability rating	HB
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
