2584090000 - 33mm Glass-Fiber Locknut for Cable Entry Systems (Pack of 10)

2584090000 - 33mm Glass-Fiber Locknut for Cable Entry Systems (Pack of 10)

SKU: 2584090000   Download PDF

Select a Variant:
  • 2584090000 - 33mm Glass-Fiber Locknut for Cable Entry Systems (Pack of 10)
Qty:
Now $21.71   Web pricing policy
BEFORE   $0.00 Now $21.71 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

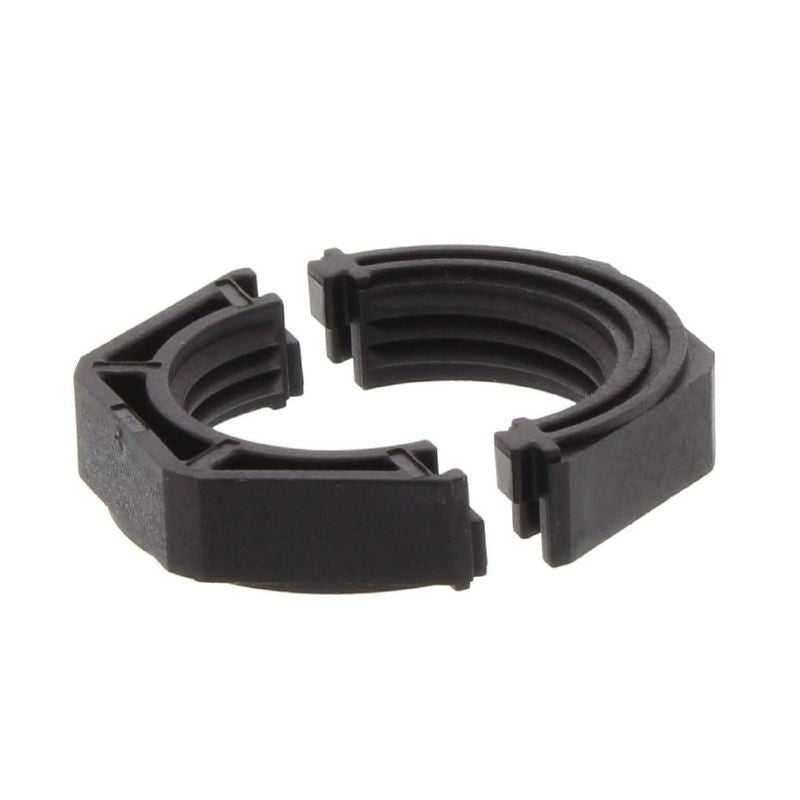

Introducing the CABTITE LNS M25 BK separable locknut, specifically designed for cable entry systems Crafted from durable polyamide enhanced with glass fibers, this locknut showcases a rich black hue With dimensions of 33 mm in height, 33 mm in width, and 7 mm in depth, it is built to withstand a broad temperature range, operating efficiently from -40 °C to 120 °C Perfect for your cable management needs, this locknut combines strength and functionality.

Features and Benefits:

    •Made from polyamide and glass fibre-reinforced material.

    •Compliant with RoHS regulations.

    •Provides a secure fit for cable entries.

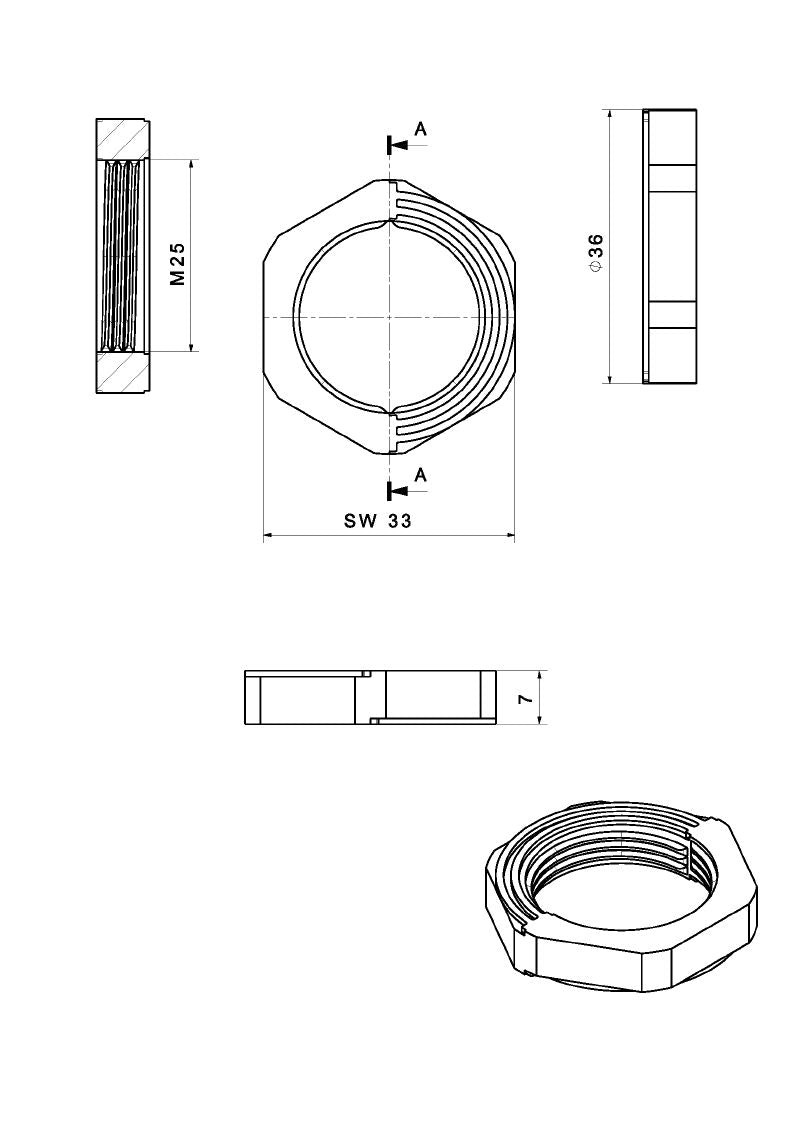

Specifications:

 Depth 7 mm
 Height 33 mm
 Width 33 mm
 Diameter 36 mm
 Operating temperature -40 °C to 120 °C
 External thread M 25
 Length of thread 7 mm
 Pitch of thread 1.5 mm
 UL 94 flammability rating V-0
 AF size 1 33 mm
 AF size 2 36 mm
 Halogen No
 Silicone No
 RoHS Compliance Status Compliant without exemption
 REACH SVHC No SVHC above 0.1 wt%
