2583470000 - IP66 Cable Entry System, 70mm Height, Polyamide Frame

2583470000 - IP66 Cable Entry System, 70mm Height, Polyamide Frame

SKU: 2583470000   Download PDF

Select a Variant:
  • 2583470000 - IP66 Cable Entry System, 70mm Height, Polyamide Frame
Qty:
Now $27.73   Web pricing policy
BEFORE   $0.00 Now $27.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

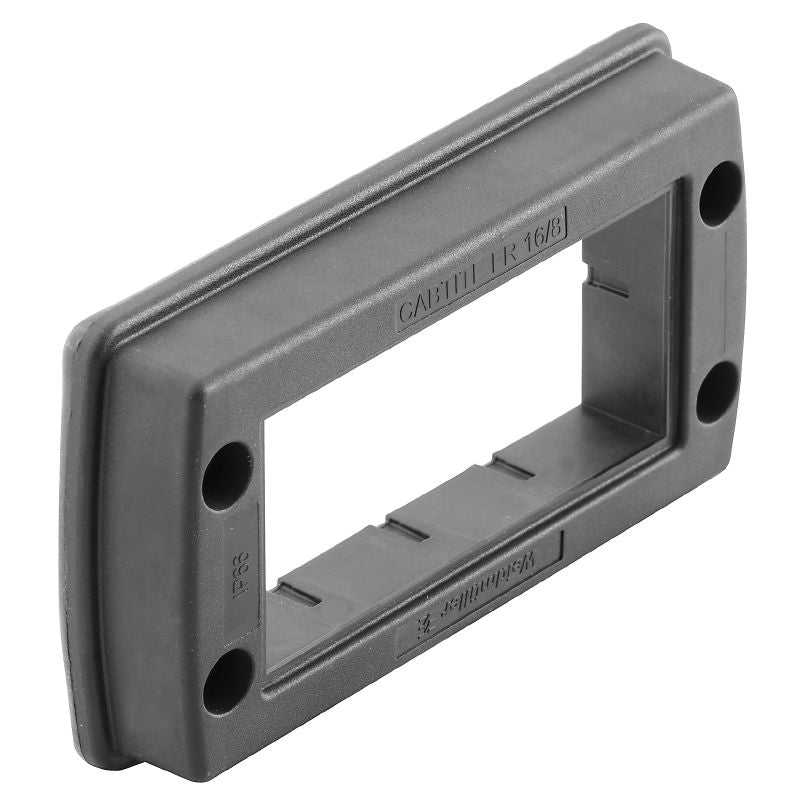

Introducing the CABTITE FR 16/8 BK, a robust cable entry solution crafted from a durable polyamide material reinforced with glass fiber Sporting an elegant deep black finish, this product measures 70 mm in height, 126 mm in width, and has a depth of 196 mm It is built to withstand extreme temperatures from -40 °C to 120 °C and boasts an impressive IP66 protection rating, ensuring reliability in challenging environments.

Features and Benefits:

    •Made from polyamide, glass fibre-reinforced.

    •Meets IP66 protection standards.

    •Compliant with RoHS without exemptions.

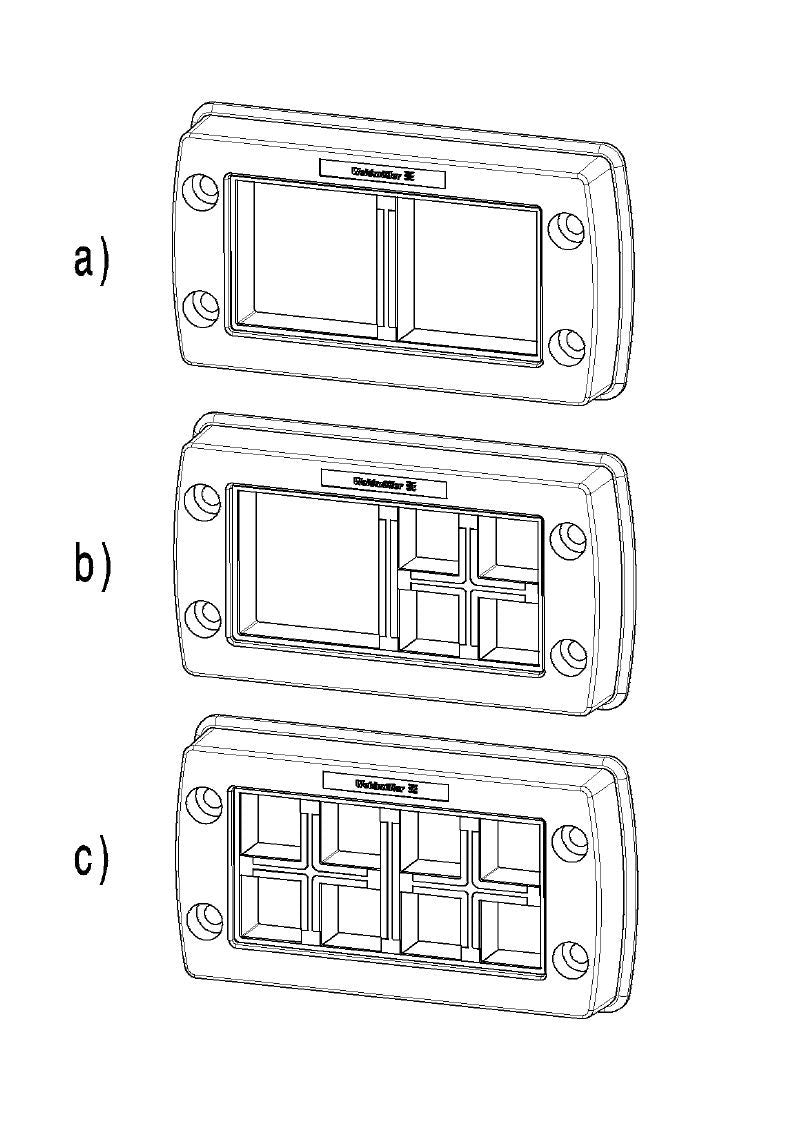

    •Multiple sealing options with TPE elements.

    •Has a UL 94 flammability rating of V-0.

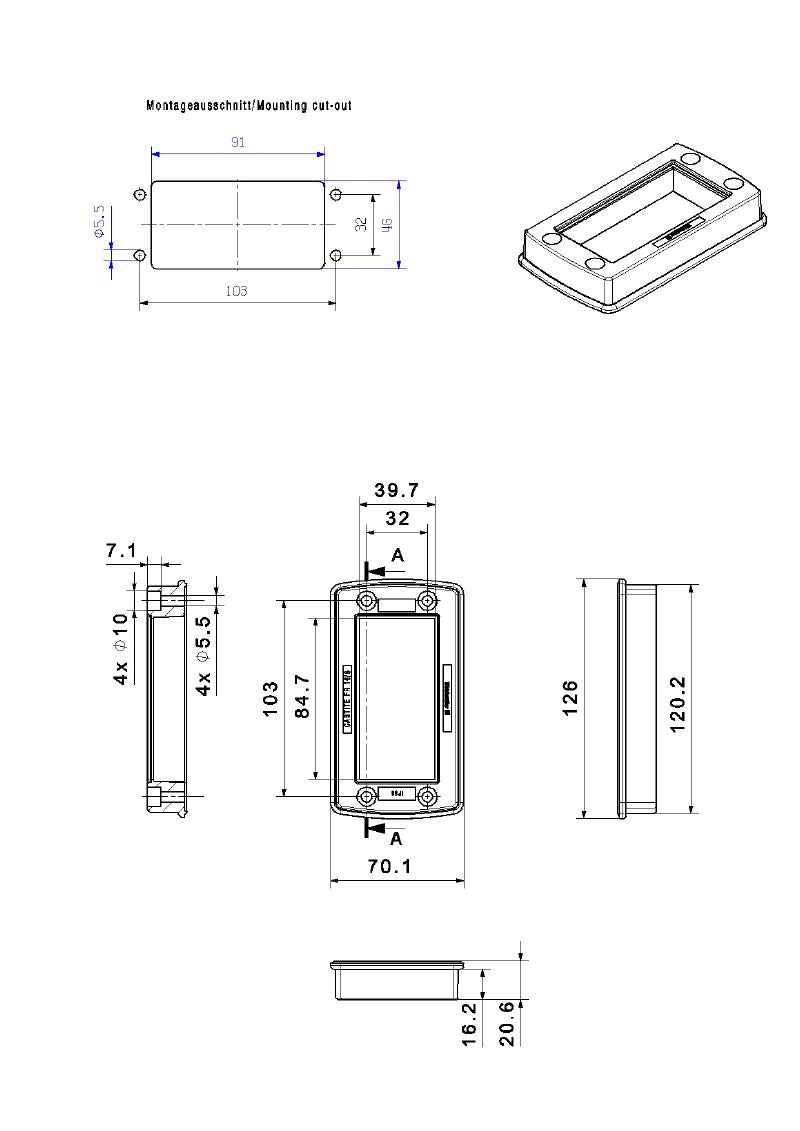

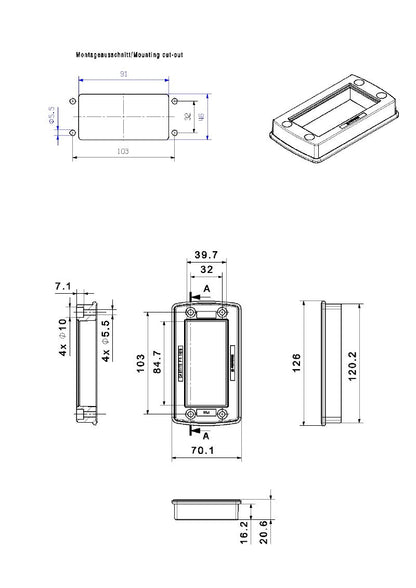

Specifications:

 Depth 19.6 mm
 Height 70 mm
 Width 126 mm
 Diameter 5.5 mm
 Operating temperature -40 °C to 120 °C
 Protection class (UL) Type 12, Type 4X
 Sealing TPE
 Tightening torque 3 Nm
 Opening length 91 mm
 Opening width 46 mm
 RoHS Compliance Status Compliant without exemption
 Net weight 51.7 g
