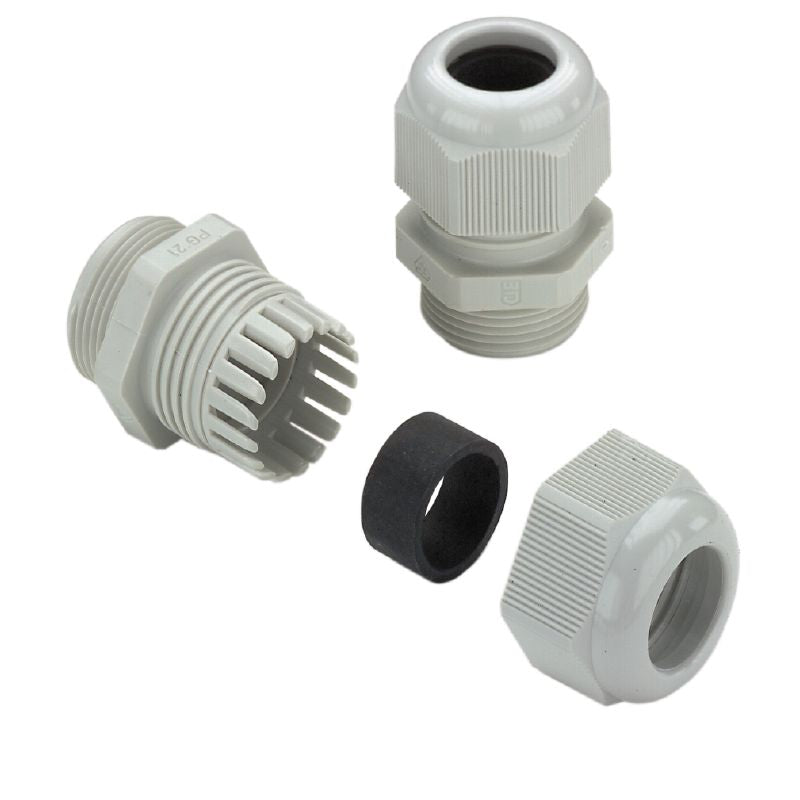

1909890000 - Polyamide VG M40-1/K68 Cable Gland, IP68 Rated, 19-28mm (Pack of 10)

SKU: SKU: 1909890000 Download PDF

Select a Variant:

1909890000 - Polyamide VG M40-1/K68 Cable Gland, IP68 Rated, 19-28mm (Pack of 10)

SET THE QTY:

Now $54.93 Web pricing policy

~~BEFORE $0.00~~ Now $54.93 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VG M40-1/K68 cable gland, a reliable solution for effective cable management Made from durable polyamide 6, this straight cable gland accommodates a range of outer cable diameters from 19 mm to 28 mm It is certified for use in demanding environments with protection ratings of IP54, IP66, IP67, and IP68, and is capable of withstanding pressures of up to 5 bars for 30 minutes With a wide operational temperature range of -40 °C to 100 °C, this product also adheres to RoHS regulations, ensuring it meets environmental standards.

Features and Benefits:

•Compliant with RoHS without any exemption.

•Excellent protection classification for various applications.

•Constructed from durable polyamide 6 material.

•Halogen-free design.

•Suitable for applications requiring protection against water and dust ingress with sealing options..

Specifications:

Height	46 mm
Length	57 mm
Operating temperature	-40 °C to 100 °C
Outer cable diameter (min)	19 mm
Outer cable diameter (max)	28 mm
Protection class	IP67
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
Tightening torque	5 Nm
UL 94 flammability rating	V-2
AF size	46 mm
Length of thread	10 mm
Seal insert	CR
