Product Information

Description:

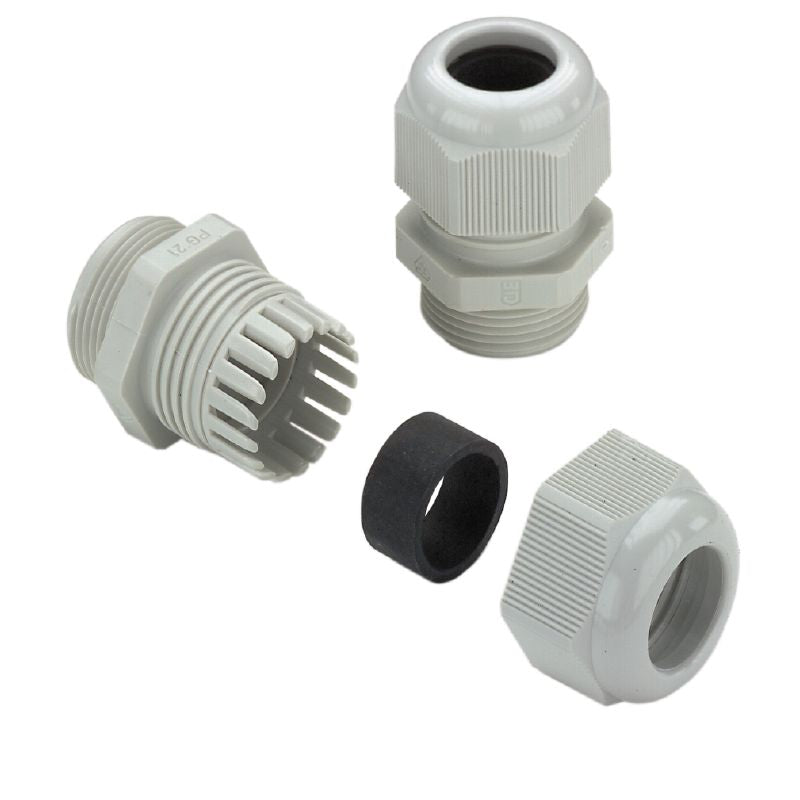

Introducing the VG M32-1/K68 cable gland, expertly crafted from polyamide 6 for seamless straight installations This component features a metric external thread with an M32 specification, designed to secure cables ranging from a minimum outer diameter of 15 mm to a maximum of 21 mm With impressive protection classes including IP54, IP66, IP67, and IP68 under specific conditions, it can endure pressure up to 5 bar for 30 minutes.

The operating temperature range spans from -40 °C to 100 °C, and it is fully compliant with RoHS standards with no exemptions, ensuring high-quality and reliable performance for your projects.

Features and Benefits:

•Manufactured from polyamide 6.

•Remote thread protection.

•Wide operational temperature range.

•Multiple IP rating options depending on the installation method.

•Compliant with RoHS regulations.

Specifications:

Order No.	1909880000
Operating temperature range	-40 °C...100 °C
Height	41 mm
Length	52 mm
Pitch of thread	1.5 mm
Tightening torque	5 Nm
Torque for cap nut, min.	5.5 Nm
Torque for lock nut, min.	4.5 Nm
Protection degree	IP67, IP68 - 5 bar (30 min.)
Approval conditions	DNV
UL
cULus
Certificate no. cable gland (cULus)	E-199260 - BM EN 14
Certificate no. cable gland (UL)	E-199260 - BM EN 14
Halogen	Yes
Standards	EN/IEC 62444
