1909870000 - VG K M25 Plastic Cable Gland, IP68 Rated, 11-17mm (Pack of 50)

1909870000 - VG K M25 Plastic Cable Gland, IP68 Rated, 11-17mm (Pack of 50)

SKU: 1909870000 Download PDF

Variant:
  • 1909870000 - VG K M25 Plastic Cable Gland, IP68 Rated, 11-17mm (Pack of 50)
Now $76.12
BEFORE   $0.00 Now $76.12
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

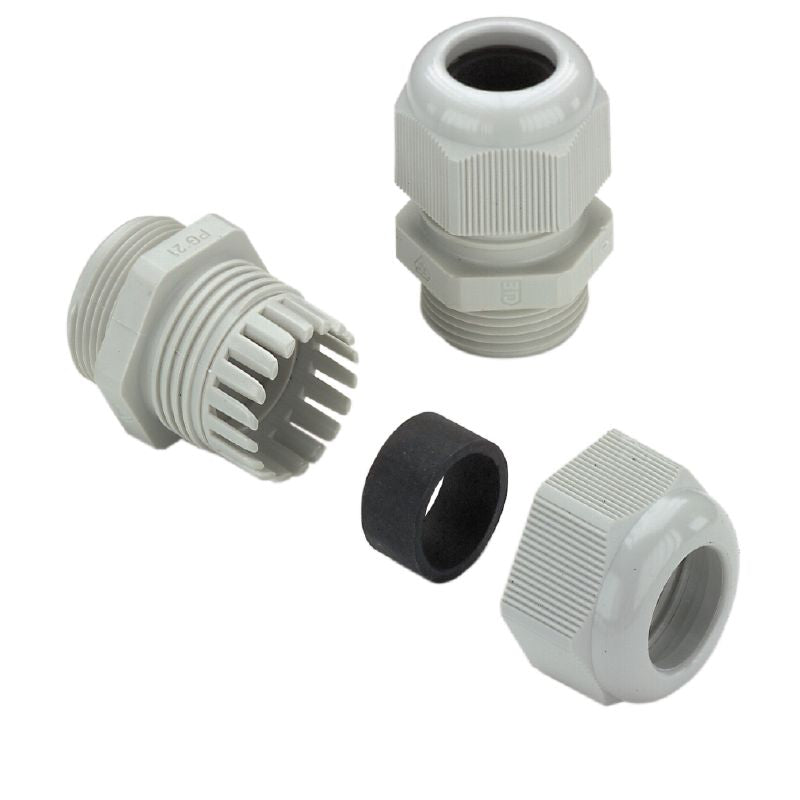

Discover the VG K type standard plastic cable gland, engineered for straightforward applications This metric M 25 model accommodates outer diameters ranging from a minimum of 11 mm to a maximum of 17 mm With an impressive protection rating of IP54, IP66, IP67, and IP68, it can withstand up to 5 bar of pressure for 30 minutes Crafted from durable Polyamide 6, this cable gland provides reliable functionality and durability for various installations.

Features and Benefits:

    •Suitable for various protection classes based on sealing methods.

    •Halogen-free.

    •RoHS compliant.

    •Operating temperature from -40 °C to 100 °C.

    •Compatible with multiple international standards including EN/IEC 62444.

Specifications:

 Approval conditions DNV
 AF size 29 mm
 Basic material Polyamide 6
 External thread M 25
 Length of thread 8 mm
 Operating temperature range, max. 100 °C
 Operating temperature range, min. -40 °C
 Outer cable diameter, max. 17 mm
 Outer cable diameter, min. 11 mm
 Pitch of thread 1.5 mm
 Protection class (UL) Type 4X
 Protection degree IP67
 Seal insert CR
 Tightening torque 3.5 Nm
 Torque for cap nut, max. 5.5 Nm
 Torque for cap nut, min. 4.5 Nm
 Torque for connecting adapter, max. 4 Nm
 Torque for connecting adapter, min. 3 Nm
 Torque for lock nut, max. 4 Nm
 Torque for lock nut, min. 3 Nm
 UL 94 flammability rating V-2
 Dimensions {'Height': '34 mm', 'Length': '43 mm'}
