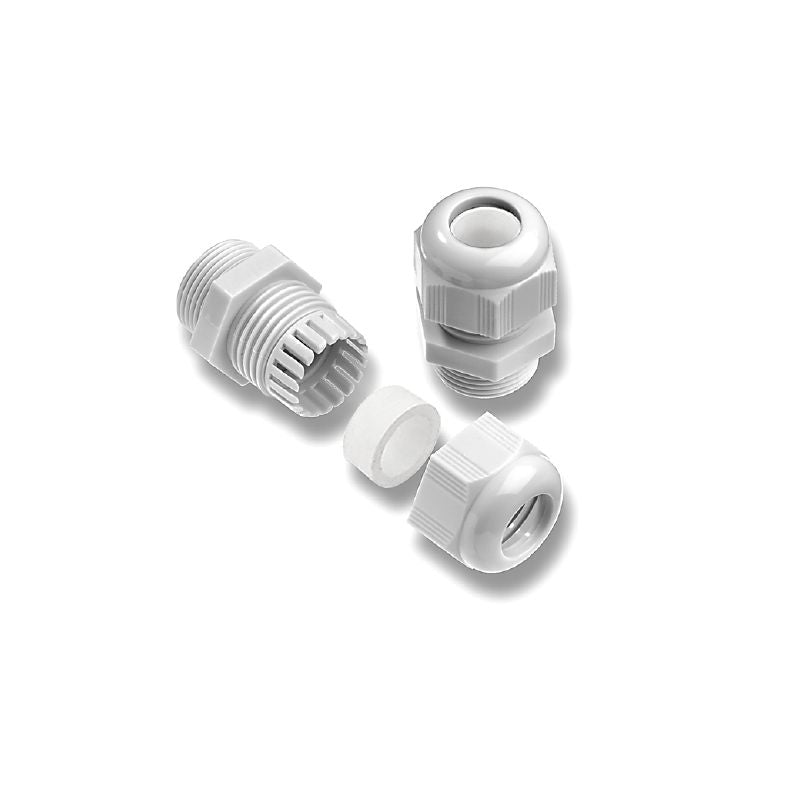

1909760000 - PG7 Cable Gland, Polyamide, 3-6.5mm Diameter, IP67 (Pack of 100)

1909760000 - PG7 Cable Gland, Polyamide, 3-6.5mm Diameter, IP67 (Pack of 100)

SKU: 1909760000 Download PDF

Variant:
  • 1909760000 - PG7 Cable Gland, Polyamide, 3-6.5mm Diameter, IP67 (Pack of 100)
Now $57.40
BEFORE   $0.00 Now $57.40
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VG PG7-K67, a robust straight cable gland crafted from Polyamide 6, designed to securely fit cables with an outer diameter between 3 mm and 65 mm This reliable component operates effectively in temperatures ranging from -20 °C to 80 °C With its PG 7 external thread and IP67 protection rating, it offers exceptional resistance against environmental challenges, ensuring long-lasting performance in diverse settings.

Features and Benefits:

    •No halogen present.

    •Compliant with RoHS without exemption.

    •No SVHC above 0.1 wt% under REACH.

    •IP67 protection degree for superior sealing.

    •UL 94 flammability rating of V-2.

Specifications:

 Height: 22 mm
 Height (inches): 0.866 inch
 Length: 30 mm
 Length (inches): 1.181 inch
 Operating temperature range, max.: 100 °C
 Operating temperature range, min.: -20 °C
 Outer cable diameter, max.: 6.5 mm
 Outer cable diameter, min.: 3 mm
 Pitch of thread: 1.27 mm
 Seal insert: NBR
 Tightening torque: 1.5 Nm
 Torque for cap nut, max.: 2.5 Nm
 Torque for cap nut, min.: 1.5 Nm
 Torque for connecting adapter, max.: 1.8 Nm
 Torque for connecting adapter, min.: 1.2 Nm
 Torque for lock nut, max.: 1.8 Nm
 Torque for lock nut, min.: 1.2 Nm
 AF size 1: 15 mm
 Basic material: Polyamide 6
