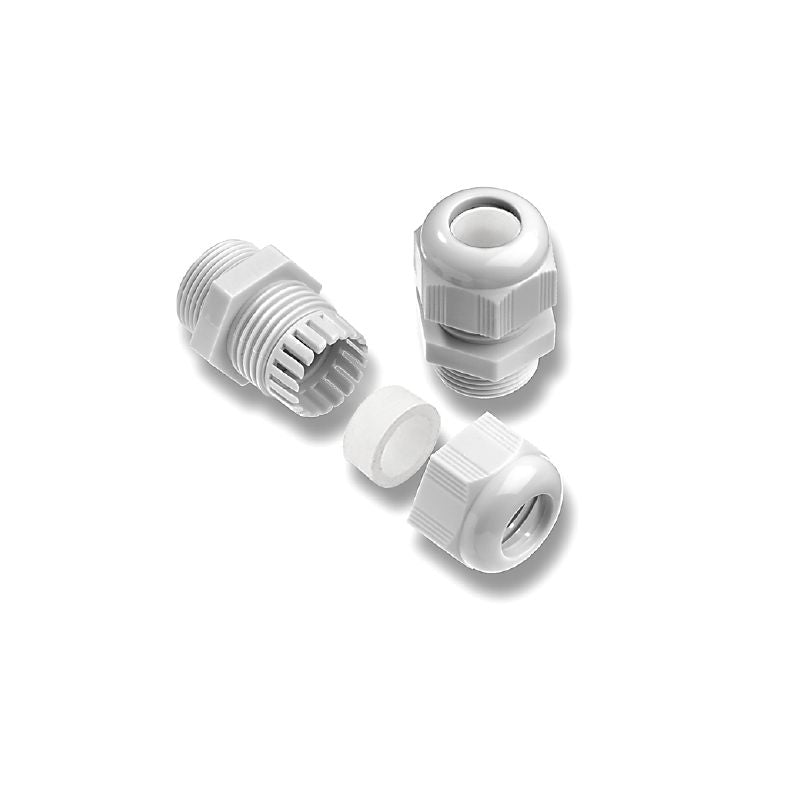

1909690000 - M20 Straight Cable Gland for 6-12mm Cables, IP67, Polyamide 6 (Pack of 50)

SKU: SKU: 1909690000 Download PDF

Select a Variant:

1909690000 - M20 Straight Cable Gland for 6-12mm Cables, IP67, Polyamide 6 (Pack of 50)

SET THE QTY:

Now $41.40 Web pricing policy

~~BEFORE $0.00~~ Now $41.40 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Enhance your cable management with the VG M20-K67 6-12 straight cable gland, specifically engineered to fit external threads of M20 size Made from durable Polyamide 6, it effectively handles cables with diameters ranging from 6 mm to 12 mm Adhering to ROHS standards, this product can operate in temperatures from -20 °C to 80 °C and can endure brief spikes up to 100 °C With an IP67 rating, it offers robust protection against dust and water, and being halogen-free adds to its safety feature.

Additionally, this cable gland boasts a strong design, allowing for a tightening torque of 35 Nm, ensuring a secure installation.

Features and Benefits:

•Compliant with ROHS regulations.

•Constructed from durable Polyamide 6.

•Designed for a maximum outer cable diameter of 12 mm.

•IP67 rated for protected installations.

•Silicone free and includes NBR seal insert.

Specifications:

Order No.	1909690000
Height	29.5 mm
Length	39.5 mm
Operating temperature	-20 °C...80 °C
Length of thread	10 mm
Pitch of thread	1.5 mm
Tightening torque	3.5 Nm
Torque for cap nut, max.	4.5 Nm
Torque for cap nut, min.	3.5 Nm
Torque for connecting adapter, max.	4 Nm
Torque for connecting adapter, min.	3 Nm
Torque for lock nut, max.	4 Nm
Torque for lock nut, min.	3 Nm
UL 94 flammability rating	V-2
Protection degree	IP67
