1909510000 - Nickel-Plated Brass EMC Cable Gland, IP68, 6-12mm Diameter (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

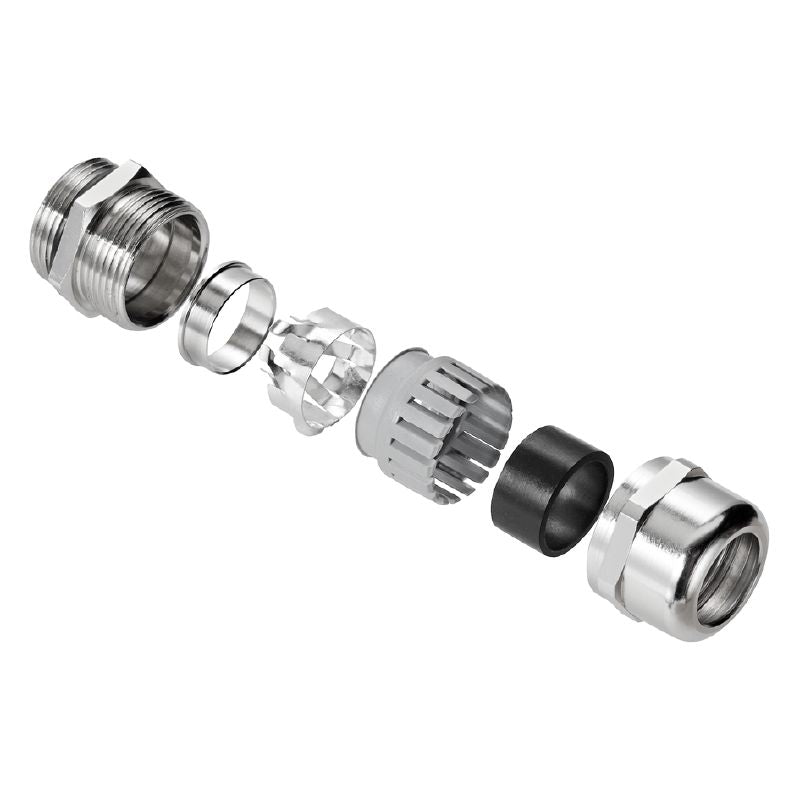

Introducing the VG M20 - MS 1/EMV, a robust EMC cable gland featuring a clamping cage This cable gland boasts an outer diameter capacity ranging from 6 mm to 12 mm, making it versatile for various applications Engineered to fulfill stringent IP68 standards, it withstands pressure levels up to 5 bar for 30 minutes, as well as IP69K ratings Crafted from nickel-plated brass, this product is also RoHS compliant, ensuring safety and environmental responsibility.

Perfect for reliable performance and sturdy installation in demanding environments.

Features and Benefits:

•Meets IP68 - 5 bar (30 min.) and IP69K protection standards.

•Constructed from brass, nickel-plated for enhanced durability.

•Operating temperature range from -40 °C to 100 °C.

•Equipped with sealing components made from NBR.

•Includes a clamp insert made of polyamide.

Specifications:
