Product Information

Description:

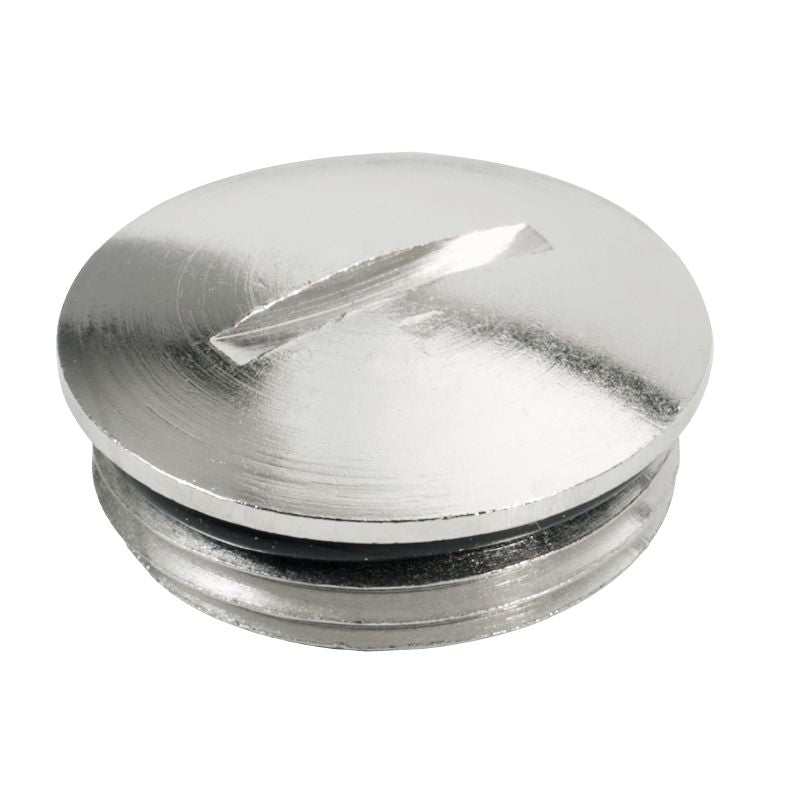

Introducing the VP M50-MS65, a premium brass blanking plug with a stylish nickel-plated finish Specifically designed for the M 50 metric cable gland, this plug measures 15 mm in both height and length, with a diameter of 54 mm The wall thickness varies between 05 mm and 8 mm, providing robust construction Complying with ROHS standards, it adheres to necessary regulations and operates efficiently in a temperature range from -40 °C to 100 °C, allowing it to be used in diverse environments.

Features and Benefits:

•Brass construction with nickel plating.

•Compatible with M 50 metric cable glands.

•Offers protection degree of IP68 - 5 bar for 30 minutes.

•O-ring made of NBR material.

•Sealing feature provided by NBR.

•Halogen-free.

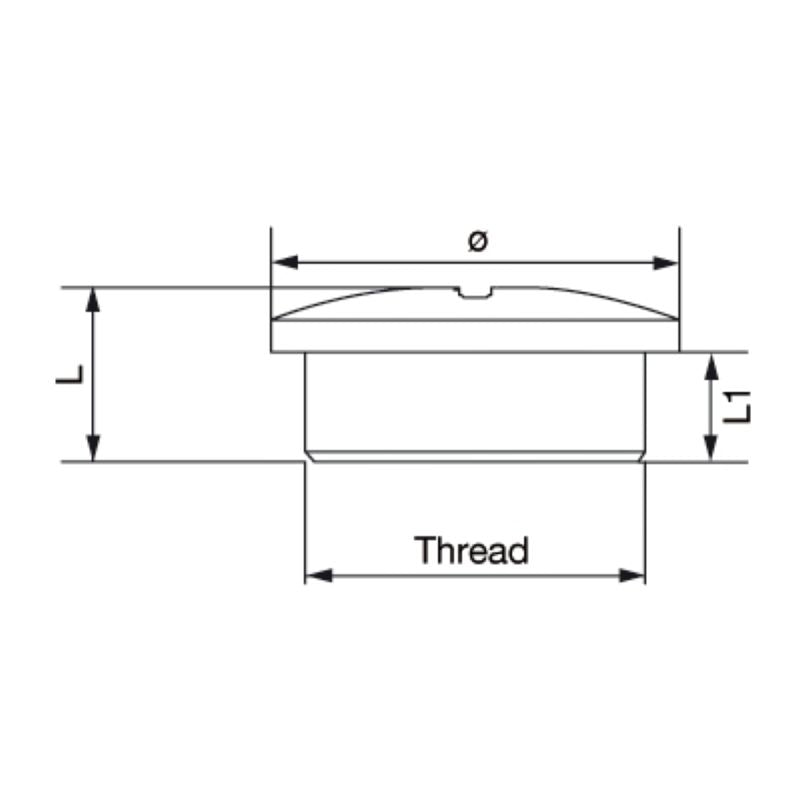

Specifications:

Height	15 mm
Length	15 mm
Diameter	54 mm
Wall thickness, min.	0.5 mm
Wall thickness, max.	8 mm
Net weight	69.84 g
Operating temperature	-40 °C to 100 °C
Basic material	Brass, nickel-plated
Diameter of sealing ring	50 mm
External thread	M 50
Length of thread	9 mm
Pitch of thread	1.5 mm
Protection degree	IP68 - 5 bar (30 min.)
RoHS Compliance Status	Compliant with exemption
RoHS Exemption	6c
REACH SVHC	Lead 7439-92-1
