1777750000 - Brass & Nickel Plated M25 Blanking Plug, 7mm Length (Pack of 100)

1777750000 - Brass & Nickel Plated M25 Blanking Plug, 7mm Length (Pack of 100)

SKU: 1777750000   Download PDF

Select a Variant:
  • 1777750000 - Brass & Nickel Plated M25 Blanking Plug, 7mm Length (Pack of 100)
Qty:
Now $468.35   Web pricing policy
BEFORE   $0.00 Now $468.35 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the VP M25-MS65 blanking plug, expertly crafted from durable brass and enhanced with a nickel plating This plug is engineered for a secure closed state and features a metric screw thread of M25, measuring 7 mm in length It meets RoHS compliance standards, making it an environmentally-friendly choice, and can operate efficiently within temperature ranges of -40 °C to 100 °C Perfect for a variety of applications, this blanking plug combines reliability and quality.

Features and Benefits:

    •Brass, nickel-plated construction.

    •IP68 protection degree, allowing it to withstand high pressure.

    •No halogen materials used.

    •NBR O-Ring for sealing.

    •Metric cable gland.

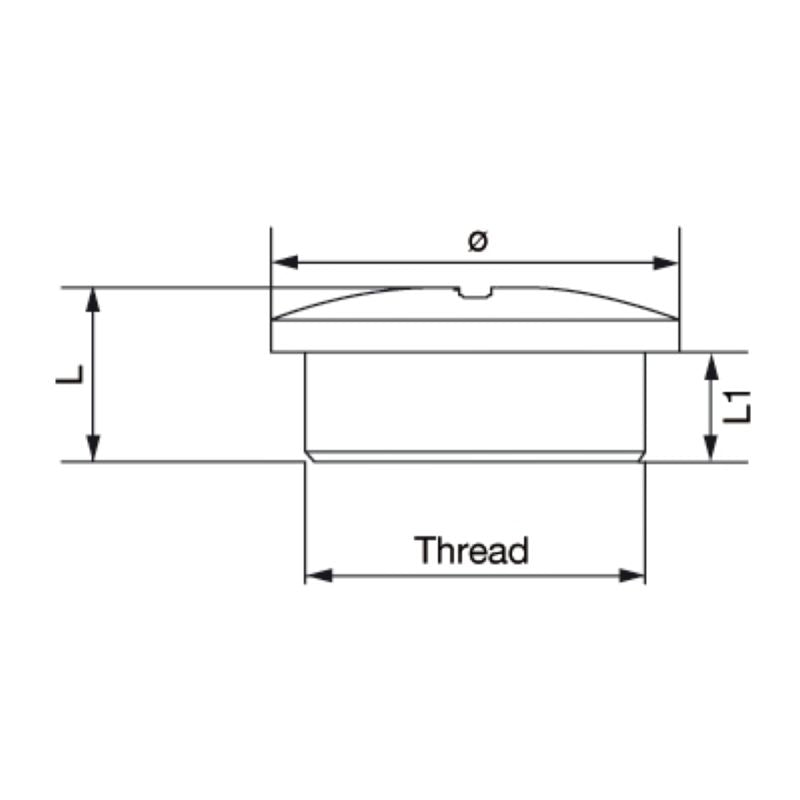

Specifications:

 Height 11 mm
 Length 11 mm
 Diameter 28 mm
 Wall thickness, min. 0.5 mm
 Wall thickness, max. 6 mm
 Operating temperature range, max. 100 °C
 Operating temperature range, min. -40 °C
 Diameter of sealing ring 25 mm
 Head diameter 28 mm
 Length of thread 7 mm
 Pitch of thread 1.5 mm
 RoHS Compliance Status Compliant with exemption
 RoHS Exemption 6c
 REACH SVHC Lead 7439-92-1
