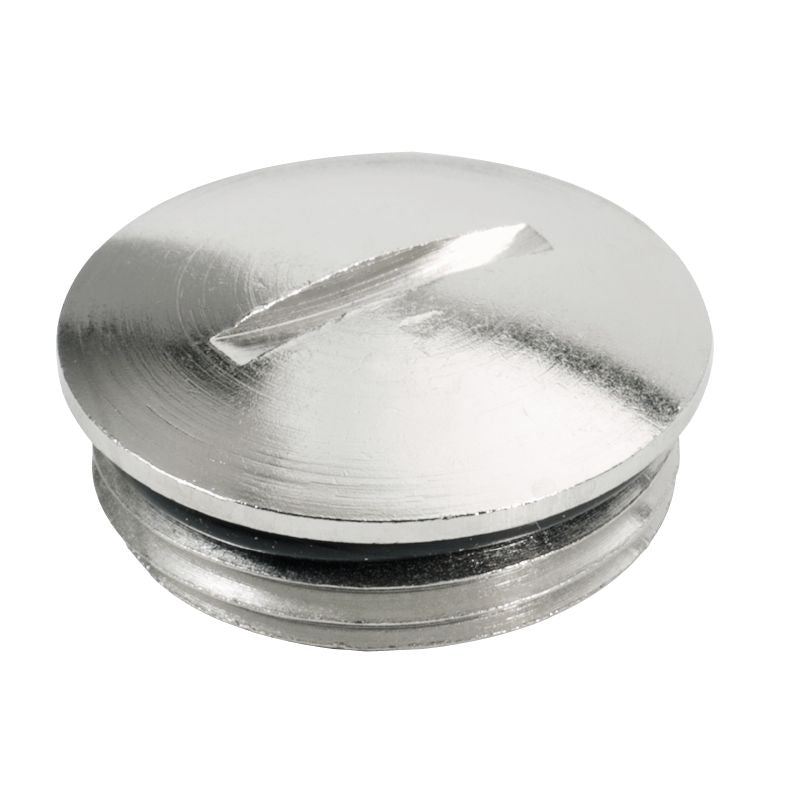

1777740000 - Nickel-Plated Brass Blanking Plug, 22mm Diameter, 9.5mm Height (Pack of 100)

SKU: SKU: 1777740000 Download PDF

Select a Variant:

1777740000 - Nickel-Plated Brass Blanking Plug, 22mm Diameter, 9.5mm Height (Pack of 100)

SET THE QTY:

Now $263.14 Web pricing policy

~~BEFORE $0.00~~ Now $263.14 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the VP M20-MS65 brass blanking plug, expertly crafted for compatibility with metric cable glands With a compact design measuring 95 mm in both length and height, this plug has a diameter of 22 mm and a wall thickness that varies from 05 mm to 5 mm Its nickel-plated finish provides enhanced protection against corrosion and increases its overall durability This plug operates effectively in a wide temperature range from -40 °C to 100 °C.

Additionally, it adheres to RoHS standards with specific exemptions, along with compliance to REACH SVHC regarding lead.

Features and Benefits:

•Nickel-plated brass construction for durability.

•IP68 protection degree rated for 5 bar (30 min).

•Metric cable gland compatibility.

•NBR O-Ring sealing for effective sealing.

•Compliant with RoHS regulations.

Specifications:

Height	9.5 mm
Length	9.5 mm
Diameter	22 mm
Wall thickness, min.	0.5 mm
Wall thickness, max.	5 mm
Net weight	7.3 g
Operating temperature	-40 °C to 100 °C
Basic material	Brass, nickel-plated
Diameter of sealing ring	20 mm
External thread	M 20
Head diameter	22 mm
Length of thread	6 mm
O-Ring	NBR
Protection degree	IP68 - 5 bar (30 min)
Halogen	No
Silicone	No
ETIM 6.0	EC000451
ECLASS 9.0	27-14-44-25
