Home / CABLE ENTRY SYSTEMS AND COMPONENTS / 1777610000 - Brass M12 Locknut, 16.17mm Diameter, Nickel-Plated Finish (Pack of 100)
1 2

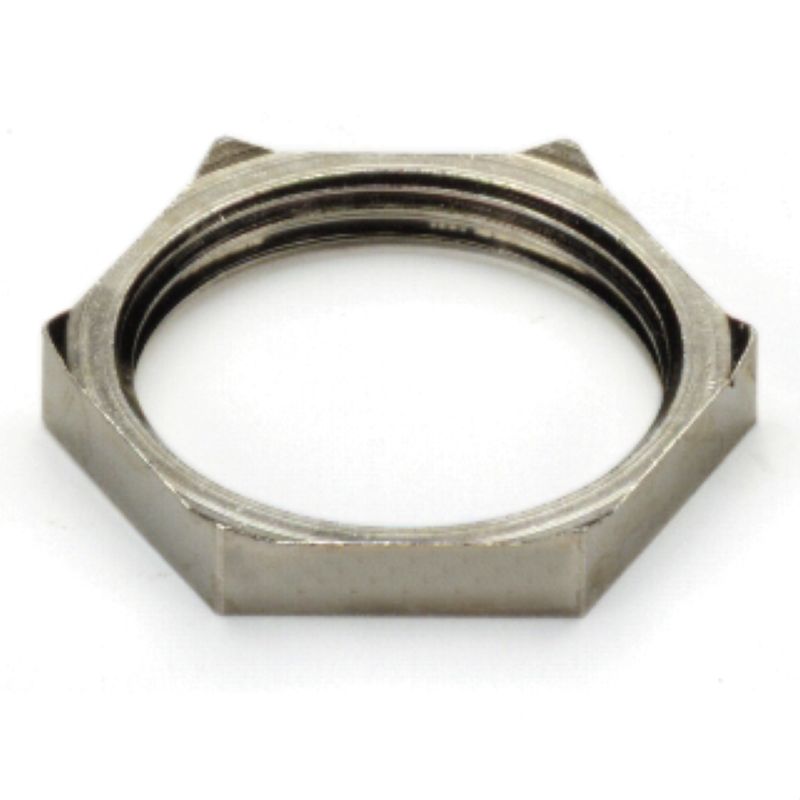

1777610000 - Brass M12 Locknut, 16.17mm Diameter, Nickel-Plated Finish (Pack of 100)

1777610000 - Brass M12 Locknut, 16.17mm Diameter, Nickel-Plated Finish (Pack of 100)

SKU: 1777610000   Download PDF

Select a Variant:
  • 1777610000 - Brass M12 Locknut, 16.17mm Diameter, Nickel-Plated Finish (Pack of 100)
Qty:
Now $114.69   Web pricing policy
BEFORE   $0.00 Now $114.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the SKMU EMV M12 locknut, expertly crafted from durable brass and finished with a sleek nickel plating This fittable locknut meets important environmental standards such as RoHS and REACH, making it an excellent option for eco-conscious customers It features an external thread size of M12 and a corresponding internal thread of M12 x 15 mm with a thread length of 36 mm The overall diameter is 16.

17 mm, and it boasts a pitch of 15 mm, ensuring a precise fit for your needs.

Features and Benefits:

    •Compliant with RoHS exemption 6c.

    •RoHS compliant.

    •Basic material is nickel-plated brass.

    •Halogen-free construction.

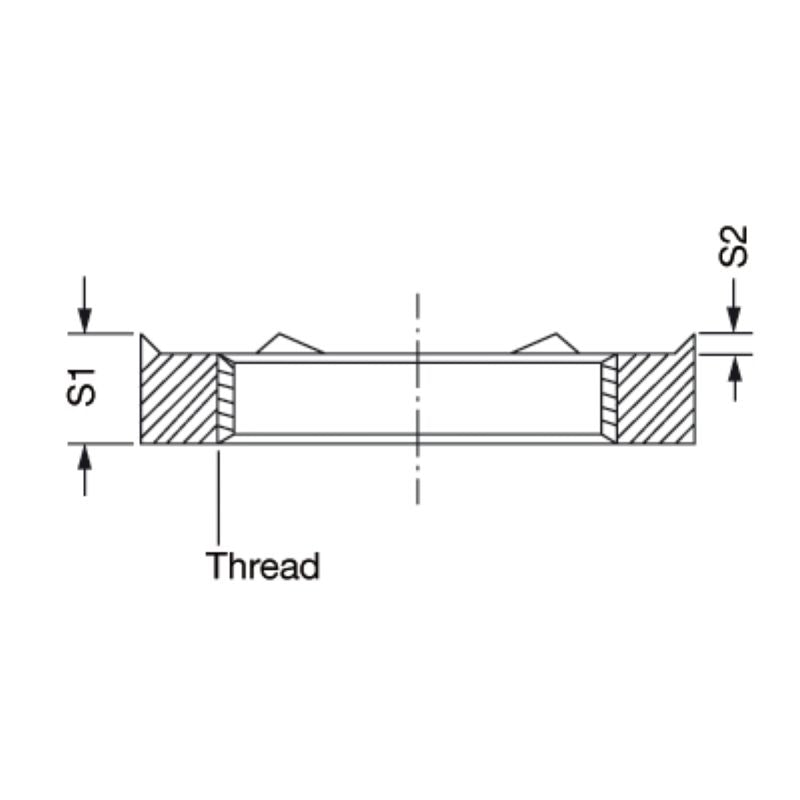

Specifications:

 Height: 4.7 mm
 Height (inches): 0.185 inch
 Cable gland: M 12
 External thread: M 12
 Internal thread: M 12 x 1.5
 Length of thread: 3.6 mm
 O.D.: 16.17 mm
 Pitch of thread: 1.5 mm
 AF size 1: 15 mm
 SCIP: f350dea6-3de1-42c5-a935-c4eb3e9d5e3c
 Lead SVHC: Lead 7439-92-1
 ETIM Classification: EC000940
 ECLASS: 27-14-44-24
