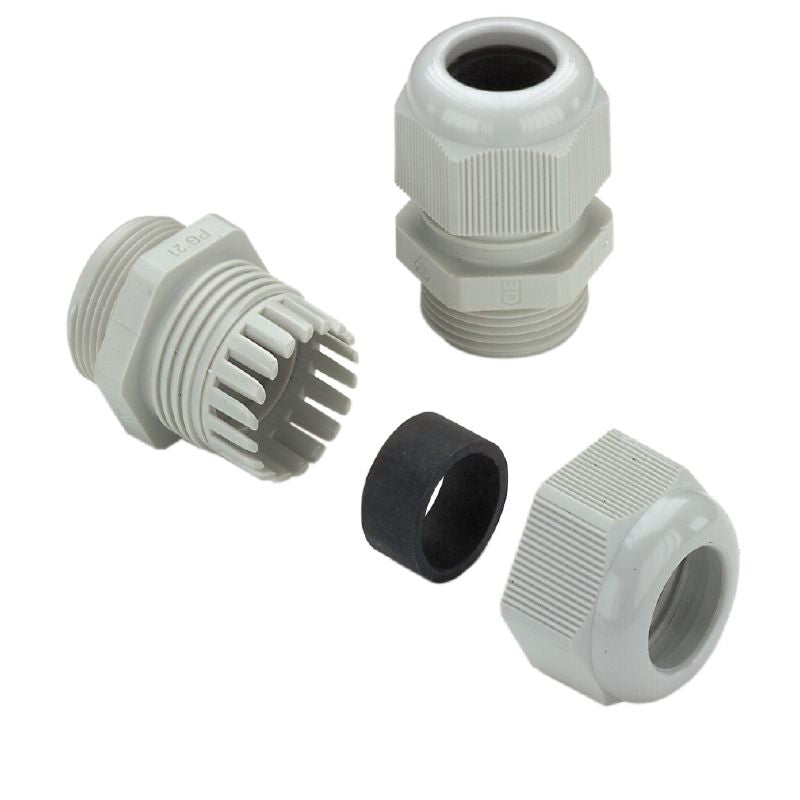

1772300000 - M20 Cable Gland, 6-12mm OD, IP54-IP68 Protection (Pack of 50)

SKU: SKU: 1772300000 Download PDF

Select a Variant:

1772300000 - M20 Cable Gland, 6-12mm OD, IP54-IP68 Protection (Pack of 50)

SET THE QTY:

Now $55.40 Web pricing policy

~~BEFORE $0.00~~ Now $55.40 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Ensure reliable cable management with the VG M20-1/K68 plastic cable gland, featuring a straight M20 connection This product is capable of accommodating cables with outer diameters between 6 mm and 12 mm It offers exceptional protection ratings of IP54, IP66, IP67, and IP68, withstanding pressures up to 5 bar for 30 minutes, making it ideal for a variety of environmental conditions Made from resilient Polyamide 6 and adhering to RoHS regulations, this cable gland operates effectively within a temperature range of -40 °C to 100 °C, promising long-lasting durability in even the most extreme settings.

Features and Benefits:

•Compatible with a wide range of cable diameters from 6 mm to 12 mm.

•Suitable for both indoor and outdoor applications with multiple protection classes.

•Made from halogen-free Polyamide 6.

•Used in environments requiring IP66 or IP68 protection ratings.

•Suitable for applications that necessitate strain relief and sealing.

Specifications:

Height	29.5 mm
Length	39.5 mm
Operating temperature range (min)	-40 °C
Operating temperature range (max)	100 °C
Outer cable diameter (min)	6 mm
Outer cable diameter (max)	12 mm
Tightening torque	3.5 Nm
Protection degree (IP)	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
UL 94 flammability rating	V-2
Basic material	Polyamide 6
Certificate no. cable gland (cULus)	E-199260 - BM 12
