1569100000 - IP68 Nickel-Plated Brass Cable Gland for 10-14mm Cables (Pack of 25)

SKU: SKU: 1569100000 Download PDF

Select a Variant:

1569100000 - IP68 Nickel-Plated Brass Cable Gland for 10-14mm Cables (Pack of 25)

SET THE QTY:

Now $172.23 Web pricing policy

~~BEFORE $0.00~~ Now $172.23 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

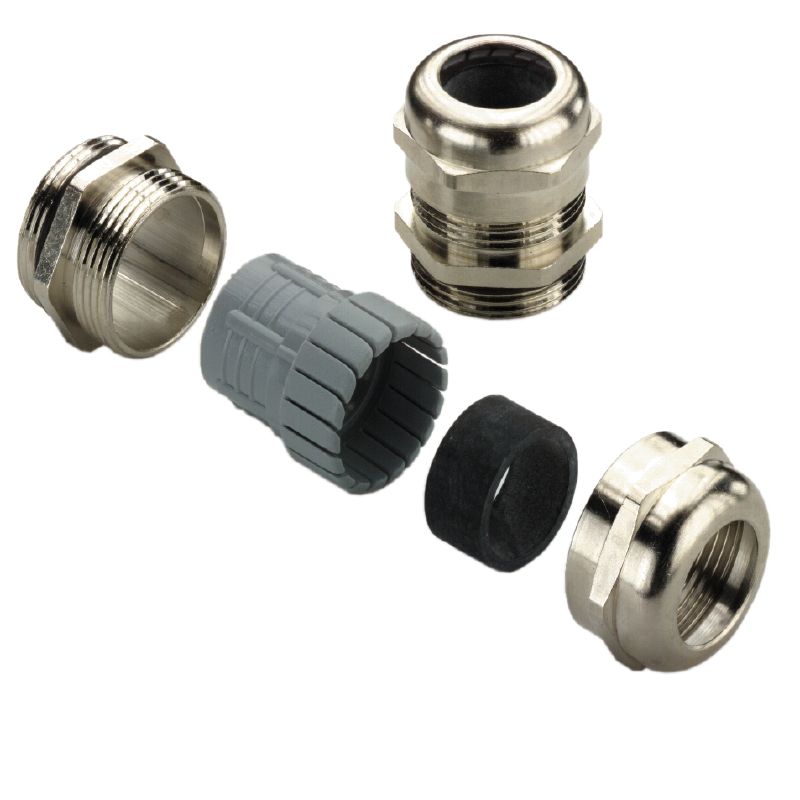

Introducing the VG 16-MS68 brass cable gland, expertly crafted for cables with diameters ranging from 10 mm to 14 mm This straight-designed gland is engineered to comply with a variety of protection ratings, including IP54, IP66, IP67, IP68 (withstand 5 bar pressure for 30 minutes), and IP69K Made from nickel-plated brass, this cable gland is built to perform reliably in temperatures spanning from -40 °C to 100 °C, making it suitable for diverse environments.

Features and Benefits:

•Suitable for a range of environmental and temperature conditions.

•Halogen-free.

•Polyamide clamp insert.

•Compression and sealing with NBR O-ring.

•Meets multiple IP protection ratings.

Specifications:

Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
Outer cable diameter, max.	14 mm
Outer cable diameter, min.	10 mm
Length of thread	6.5 mm
Protection class (UL)	Type 4X
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K
Tightening torque	7 Nm
Torque for cap nut, max.	11.5 Nm
Torque for cap nut, min.	10.5 Nm
Torque for connecting adapter, max.	7.5 Nm
Torque for connecting adapter, min.	6.5 Nm
Basic material	Brass, nickel-plated
Cable gland	PG 16
