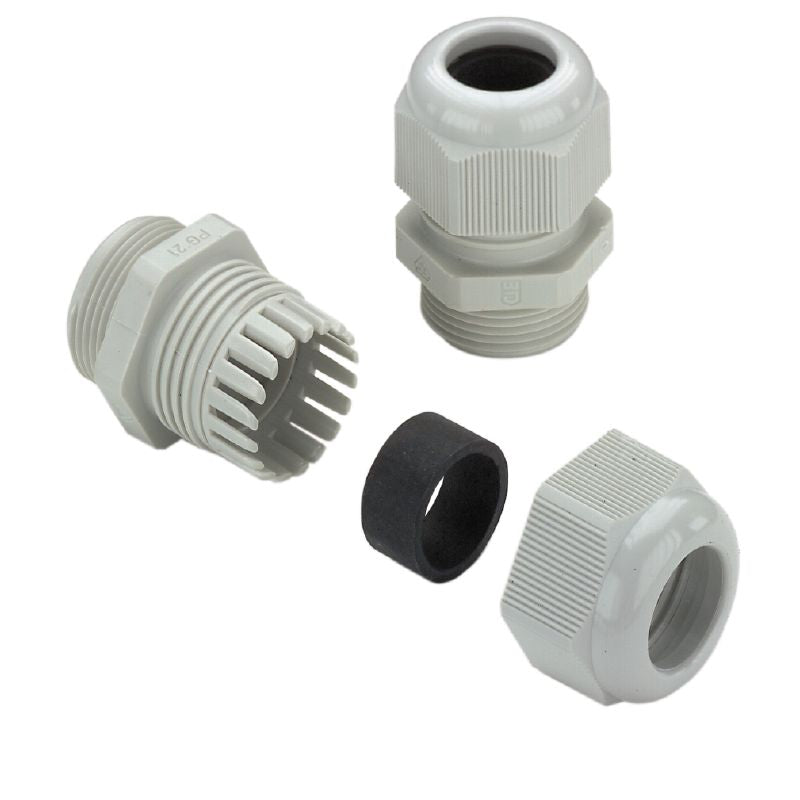

1569040000 - VG K Standard Cable Gland for 22-32mm Cables (Pack of 10)

1569040000 - VG K Standard Cable Gland for 22-32mm Cables (Pack of 10)

SKU: 1569040000   Download PDF

Select a Variant:
  • 1569040000 - VG K Standard Cable Gland for 22-32mm Cables (Pack of 10)
Qty:
Now $97.49   Web pricing policy
BEFORE   $0.00 Now $97.49 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

The VG K cable gland is expertly crafted for straight applications, conforming to PG 36 standards It's designed to accommodate cable diameters between 22 mm and 32 mm, offering robust protection with IP ratings of IP54, IP66, IP67, and IP68 This means it can endure a pressure of 5 bar for up to 30 minutes Constructed from durable Polyamide 6, this cable gland ensures reliable performance in various environments.

Features and Benefits:

    •Operating temperature range from -40 °C to 100 °C.

    •RoHS compliant without exemption.

    •Halogen-free.

    •Protection degree ratings of IP54, IP66, IP67, and IP68 under specified conditions.

Specifications:

 Height 51.5 mm
 Length 64.5 mm
 Basic material Polyamide 6
 Cable gland PG
 External thread PG 36
 Length of thread 13 mm
 Outer cable diameter, min. 22 mm
 Outer cable diameter, max. 32 mm
 Pitch of thread 1.59 mm
 Protection class (UL) Type 4X
 Seal insert CR
 Tightening torque 11 Nm
 Torque for cap nut, max. 16.5 Nm
 Torque for cap nut, min. 15.5 Nm
 Torque for connecting adapter, max. 11.5 Nm
 Torque for connecting adapter, min. 10.5 Nm
 Torque for lock nut, max. 11.5 Nm
 Torque for lock nut, min. 10.5 Nm
 UL 94 flammability rating V-2
 GTIN (EAN) 4008190024833
