1461070000 - Polyamide Cable Gland, IP68 Rated, 10mm x 40mm (Pack of 20)

SKU: SKU: 1461070000 Download PDF

Select a Variant:

1461070000 - Polyamide Cable Gland, IP68 Rated, 10mm x 40mm (Pack of 20)

SET THE QTY:

Now $63.81 Web pricing policy

~~BEFORE $0.00~~ Now $63.81 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

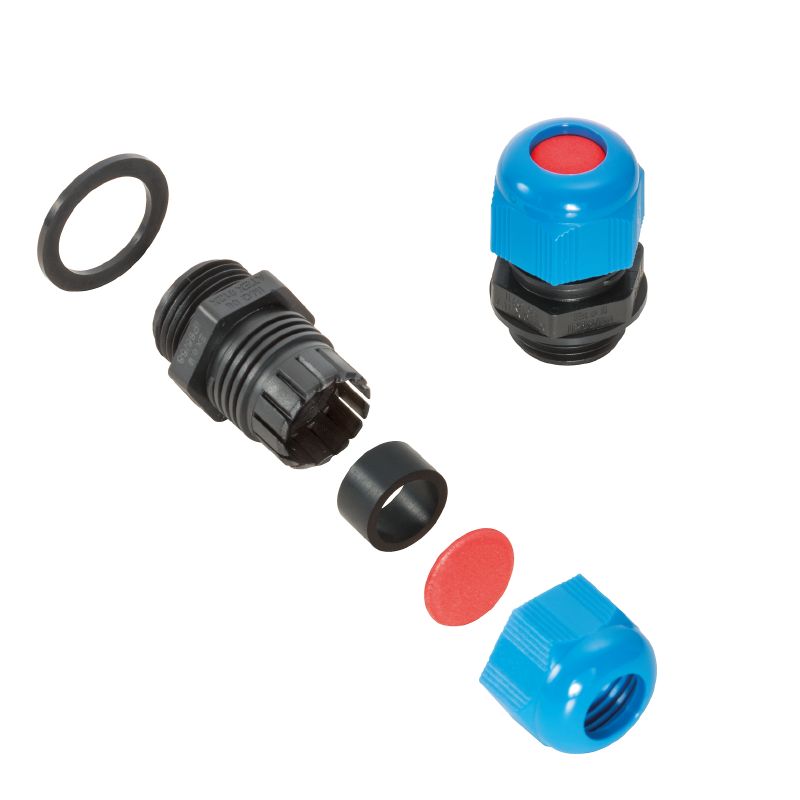

Introducing the VG M25 EXI BL straight cable gland, expertly crafted from durable Polyamide 6 This product is engineered for intrinsic safety and meets strict environmental standards, holding certifications such as CE, ATEX, EAC, IECEX, and INMETRO With an impressive IP rating of IP54, IP66, IP67, and IP68, it offers robust protection against dust and water Additionally, it can endure pressures of up to 5 bar for durations of 30 minutes, making it a reliable choice for various applications.

Features and Benefits:

•Suitable for cable diameters from 13 mm to 18 mm.

•Rated for operation in temperature ranges from -40 °C to 80 °C.

•Resistant to halogen.

•Impact resistant up to 4 J in the ATEX version.

•Compliant with RoHS and without SVHC above 0.1 wt%.

Specifications:

Operating temperature range, max.	80 °C
Operating temperature range, min.	-40 °C
Outer cable diameter, max.	18 mm
Outer cable diameter, min.	13 mm
Length of thread	10 mm
External thread	M 25
Protection degree	IP54, IP66, IP67, IP68 - 5 bar (30 min.)
Seal insert	CR
Basic material	Polyamide 6
Approval conditions	ATEX, IECEX
Certificate no. cable gland (ATEX)	IMQ 13 ATEX 010 X
Certificate no. cable gland (IECEx)	IECEx IMQ 13.0003X
Impact resistance	4 J ATEX version
UL 94 flammability rating	HB
AF size 1	33 mm
AF size 2	33 mm
