1461050000 - Intrinsically Safe M20 Cable Gland for 6-12mm Cables (Pack of 20)

SKU: SKU: 1461050000 Download PDF

Select a Variant:

1461050000 - Intrinsically Safe M20 Cable Gland for 6-12mm Cables (Pack of 20)

SET THE QTY:

Now $53.53 Web pricing policy

~~BEFORE $0.00~~ Now $53.53 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

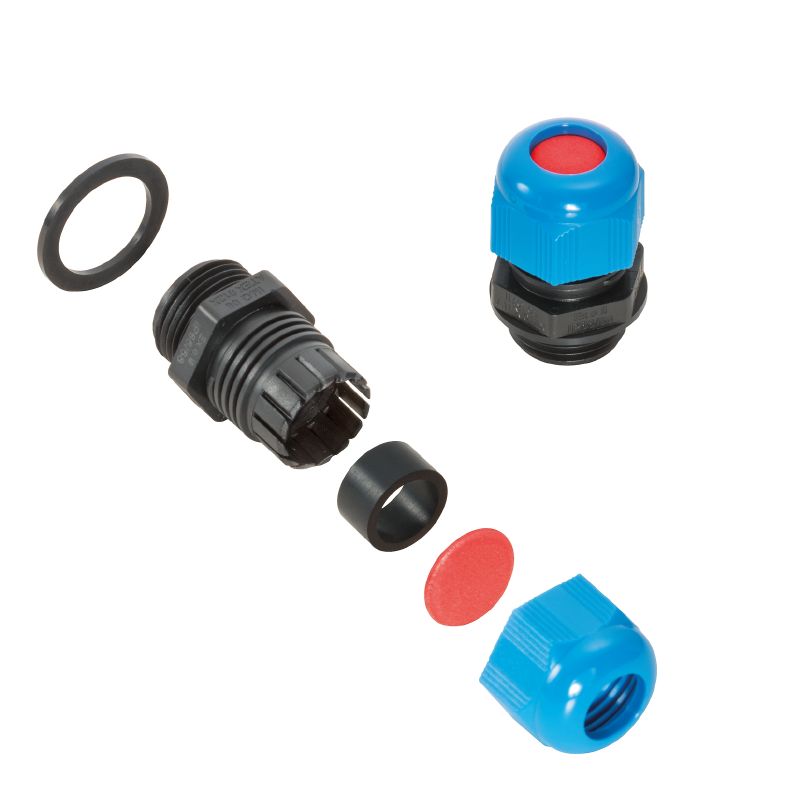

Introducing the VG Exi 4J, an inherently safe cable gland tailored for M20 installations Made from sturdy polyamide 6, this gland accommodates cable diameters from 6 mm to 12 mm Its robust design offers exceptional protection with ratings of IP54, IP66, IP67, and IP68, ensuring reliable water resistance of up to 5 bar for 30 minutes Furthermore, it adheres to multiple safety and environmental regulations, including CE, EAC, ATEX, and IECEx certifications, making it a trustworthy choice for various applications.

Features and Benefits:

•Constructed with polyamide 6 material.

•Intrinsically safe Ex i explosion protection.

•Suitable for a wide cable diameter range (6 - 12 mm).

•Protection ratings IP54, IP66, IP67, IP68.

•Impact resistance rated at 4 J for ATEX version.

•Compliant with RoHS without exemption.

Specifications:

Operating Temperature Range:	-40 °C to 80 °C
Length of Thread:	10 mm
Pitch of Thread:	1.5 mm
AF Size:	24 mm
Certificate Number (ATEX):	IMQ 13 ATEX 010 X
Certificate Number (IECEx):	IECEx IMQ 13.0003X
Seal Insert:	CR
Standards:	IEC 60079-0, IEC 60079-7, IEC 60079-31, EN 60079-0, EN 60079-7, EN 60079-31, UL 94 flammability rating HB
ETIM Classification:	EC000441
ECLASS Versions:	27-14-44-32 (9.0, 10.0, 11.0, 12.0, 13.0, 14.0, 15.0)
