1262940000 - M32 NPT 1-1/4" Brass Adapter, Nickel Coated (Pack of 12)

SKU: SKU: 1262940000 Download PDF

Variant:

1262940000 - M32 NPT 1-1/4" Brass Adapter, Nickel Coated (Pack of 12)

Now $521.28

~~BEFORE $0.00~~ Now $521.28

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

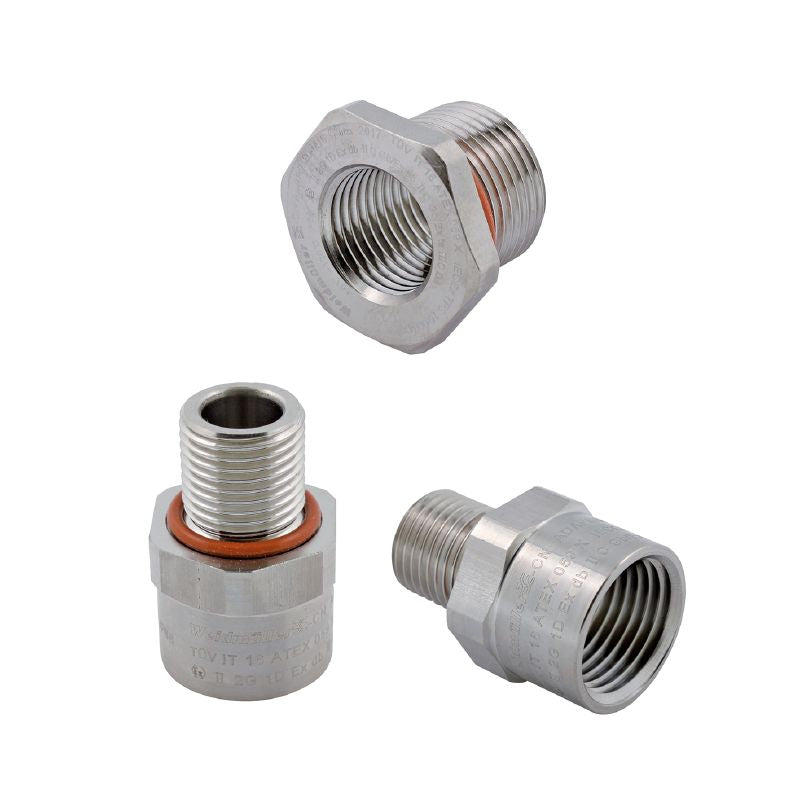

Introducing the ADAP M32-NPT1-1/4-W straight adapter, a reliable component featuring a M32 connection paired with a 1 1/4" NPT thread Crafted from durable brass and finished with a protective nickel coating, this adapter is designed to meet RoHS standards It functions optimally within a temperature range of -50 °C to 120 °C, making it suitable for various applications.

Features and Benefits:

•Halogen-free.

•Brass base material with nickel plating.

•Explosion protection type: Ex d - flameproof and Ex e - increased safety.

•IP66 protection degree.

•O-Ring made from silicone.

Specifications:

Order No.	1262940000
GTIN (EAN)	4050118088816
Dimensions (Width)	51 mm
Dimensions (Length)	39 mm
Outer cable diameter (max)	24 mm
Outer cable diameter (min)	1 mm
Pitch of thread	1.5 mm
Tightening torque	65 Nm
Operating temperature range (max)	120 °C
Operating temperature range (min)	-50 °C
AF size	46 mm
Certificates	{'Certificate No. (IECEX)': 'IECEXTPS16.0004X', 'Certificate no. (ATEX)': 'TÜV IT 16ATEX 059X', 'Certificate no. (CCC)': '2020322313000069'}
Environmental Product Compliance	{'RoHS Compliance Status': 'Compliant with exemption', 'RoHS Exemption': '6c', 'REACH SVHC': 'Lead 7439-92-1'}
Standards	['EN 60079-0', 'EN 60079-1', 'GB 3836.1', 'GB 3836.2', 'GB 3836.3', 'EN 60079-31', 'EN 60079-7', 'IEC 60079-0', 'IEC 60079-1', 'IEC 60079-31', 'IEC 60079-7', 'GB 12476.1', 'GB 12476.5']
