1218980000 - M40x1.5 Brass Blanking Plug with Nickel Finish (Pack of 9)

SKU: SKU: 1218980000 Download PDF

Variant:

1218980000 - M40x1.5 Brass Blanking Plug with Nickel Finish (Pack of 9)

Now $189.24

~~BEFORE $0.00~~ Now $189.24

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

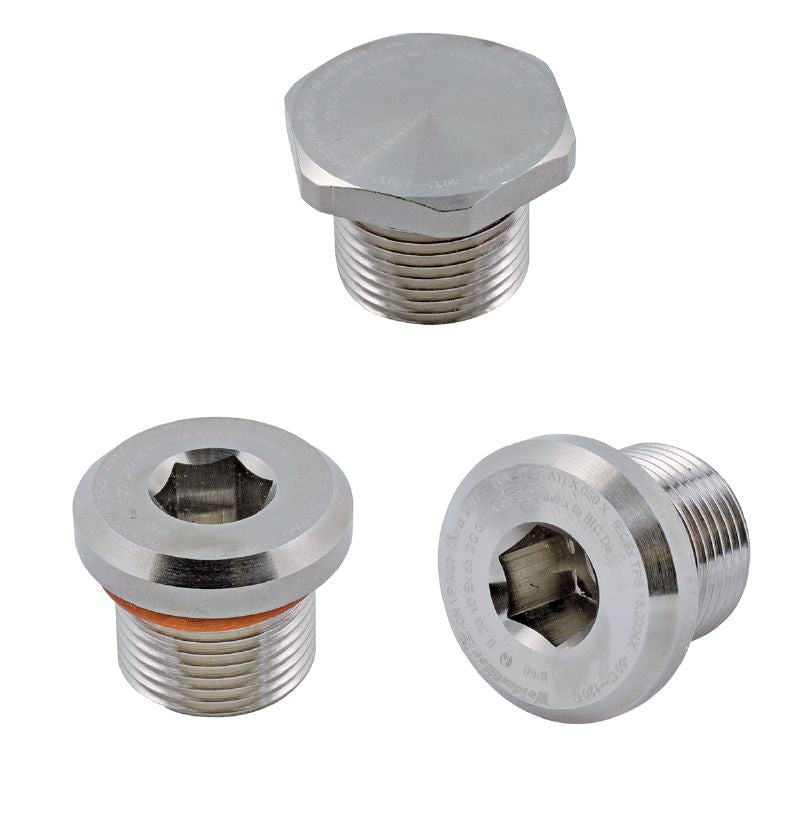

Introducing the VP-HEX M40-EX W, a reliable straight blanking plug with a hexagonal head This essential component measures M 40 x 15 and features a length of 22 mm Crafted from high-quality brass and enhanced with a nickel plating, it offers exceptional durability and resistance to wear Perfect for various applications, this plug combines functionality with longevity.

Features and Benefits:

•Compliant with RoHS regulations.

•Operating temperature range of -50 °C to 120 °C.

•Explosion proof with Ex d - flameproof and Ex e - increased safety certifications.

•Halogen-free materials used.

•IP66 and IP68 protection ratings.

Specifications:

Height	22 mm
Width	55 mm
Diameter	40 mm
Wall thickness, min.	0.5 mm
Wall thickness, max.	15 mm
Net weight	149 g
Operating temperature	-50 °C...120 °C
Cable gland	M 40
External thread	M 40 x 1.5
Tightening torque	80 Nm
Basic material	Brass, nickel-plated
O-Ring	Silicone
Impact resistance	7.00 J
Protection degree	IP66, IP68
Length of thread	16 mm
Diameter of sealing ring	40 mm
