Home / CABLE ENTRY SYSTEMS AND COMPONENTS / 1188710000 - Stainless Steel Blanking Plug M 25 x 1.5 with IP66/IP68 (Pack of 16)
1 1

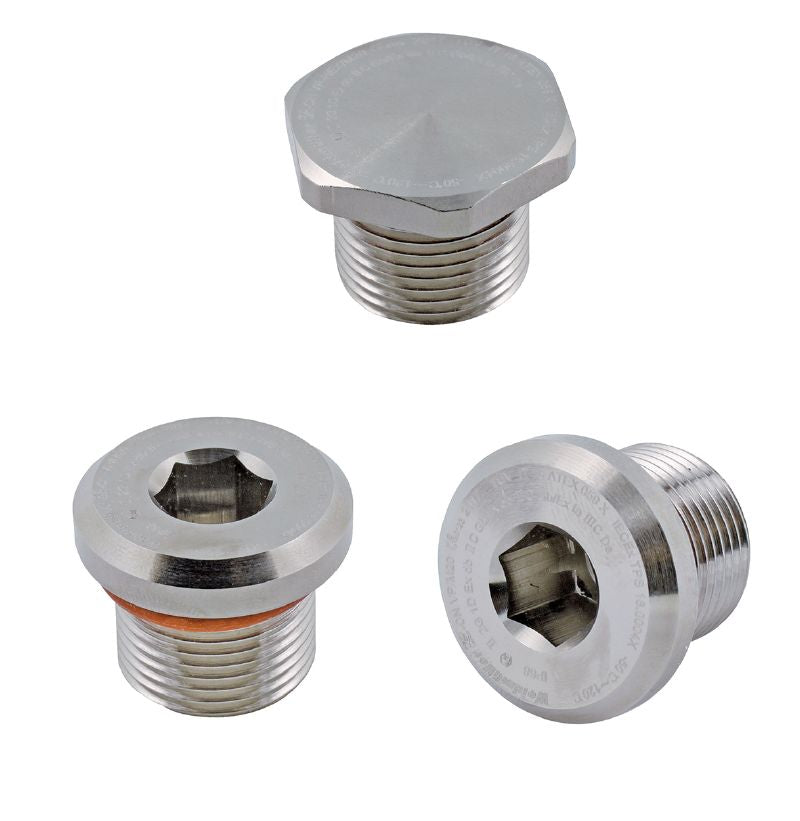

1188710000 - Stainless Steel Blanking Plug M 25 x 1.5 with IP66/IP68 (Pack of 16)

1188710000 - Stainless Steel Blanking Plug M 25 x 1.5 with IP66/IP68 (Pack of 16)

SKU: 1188710000 Download PDF

Variant:
  • 1188710000 - Stainless Steel Blanking Plug M 25 x 1.5 with IP66/IP68 (Pack of 16)
Now $570.34
BEFORE   $0.00 Now $570.34
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the VPS M25-EX W straight blanking plug, specifically designed for M 25 x 15 applications Crafted from high-grade stainless steel 14404, this plug delivers both durability and reliability With dimensions of 215 mm in both height and width, it seamlessly fits your needs Complying with various industry standards, including RoHS, it also boasts IP66 and IP68 ratings, ensuring top-notch protection against dust and moisture.

This versatile device operates effectively in extreme temperatures, ranging from -50 °C to 120 °C, making it ideal for challenging environments.

Features and Benefits:

    •Constructed from stainless steel 1.4404.

    •Halogen-free material.

    •IP66 and IP68 protection degree.

    •Explosion protection type: Ex d - flameproof and Ex e - increased safety.

    •Impact resistance rated at 7.00 J.

Specifications:

 Height 21.5 mm
 Width 33 mm
 Length 21.5 mm
 Diameter 25 mm
 Wall thickness, min 0.5 mm
 Wall thickness, max 15 mm
 Net weight 82.8 g
 Operating temperature -50 °C...120 °C
 External thread M 25 x 1.5
 Tightening torque 55 Nm
 Basic material Stainless steel 1.4404
 Diameter of sealing ring 25 mm
 Length of thread 16 mm
 O-Ring Silicone
 Pitch of thread 1.5 mm
 Certificates {'IECEX': 'IECEXTPS16.0004X', 'ATEX': 'TÜV IT 16ATEX 059X', 'CCC': '2020322313000069'}
 Standards ['EN 60079-0', 'EN 60079-1', 'IEC 60079-1', 'IEC 60079-31', 'IEC 60079-7', 'EN 60079-31', 'EN 60079-7', 'GB 12476.1', 'GB 12476.5', 'GB 3836.1', 'GB 3836.2', 'GB 3836.3', 'IEC 60079-0']
