1184670000 - Klippon Brass Cable Gland M20 x 1.5, 12.5-16mm OD (Pack of 24)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

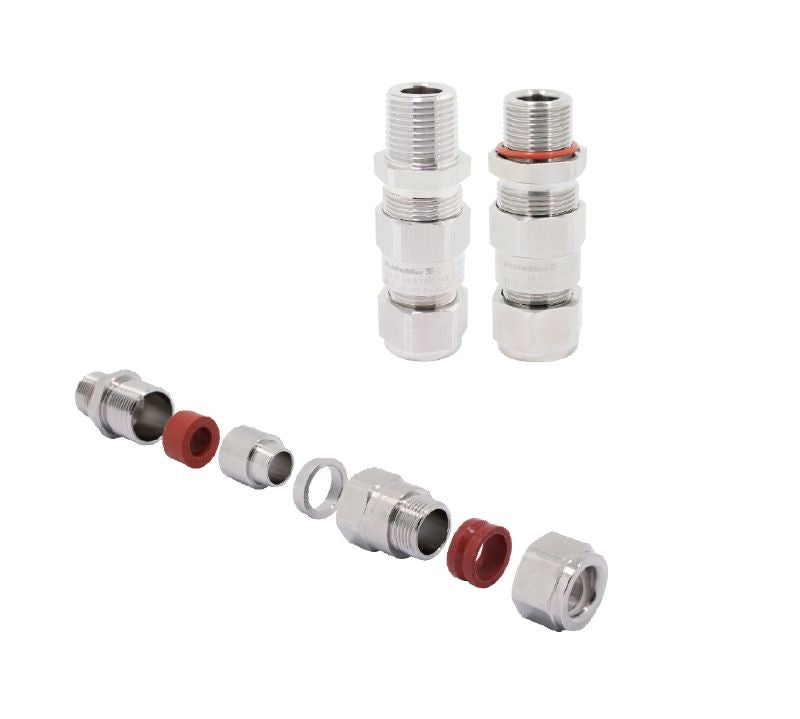

Introducing the E1W/20S/M20-WM cable gland, a robust solution specially crafted for Klippon double seal SWA armored applications This component features a straight design with a threading size of M 20 x 15, making it an excellent choice for single-wire armoring Its outer diameter accommodates cables ranging from 125 mm to 16 mm, while it supports inner diameters of 800 mm to 1170 mm Constructed from high-quality brass and enhanced with a nickel-plated finish, this cable gland ensures both longevity and resilience in various environments.

Features and Benefits:

•Made of brass with nickel plating for corrosion resistance.

•Designed for safe use in explosive environments with Ex d flameproof and Ex e increased safety protection.

•Compliant with environmental regulations, including RoHS and REACH.

•IP66 and IP68 protection ratings ensure excellent resistance against dust and water.

•Suitable for a wide operating temperature range from -50 °C to 120 °C.

Specifications:
