1909860000 - M16 Plastic Cable Gland, 4-8mm, IP54/IP68, Polyamide 6 (Pack of 50)

1909860000 - M16 Plastic Cable Gland, 4-8mm, IP54/IP68, Polyamide 6 (Pack of 50)

SKU: 1909860000   Download PDF

Select a Variant:
  • 1909860000 - M16 Plastic Cable Gland, 4-8mm, IP54/IP68, Polyamide 6 (Pack of 50)
Qty:
Now $42.28   Web pricing policy
BEFORE   $0.00 Now $42.28 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

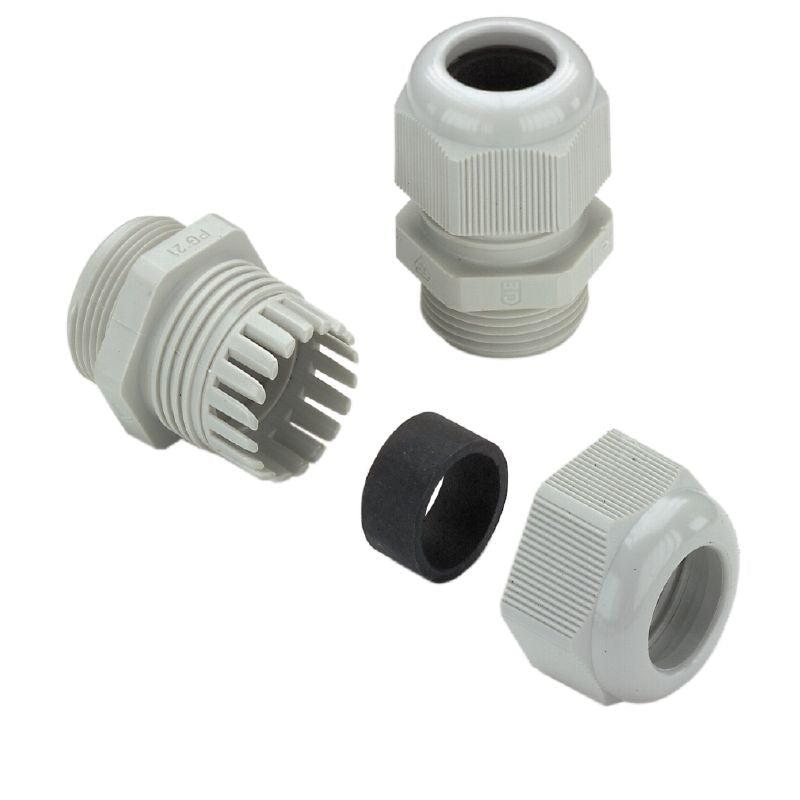

Introducing the VG M16-1/K68 cable gland, a durable solution crafted from polyamide 6 This versatile gland accommodates cable outer diameters between 4 mm and 8 mm With an impressive compliance to IP54, IP66, IP67, and IP68 protection standards, it can endure pressures up to 5 bar for 30 minutes Rated for performance in extreme temperatures from -40 °C to 100 °C, this cable gland is ideal for a wide range of applications requiring reliable protection and functionality.

Features and Benefits:

    •Made from polyamide 6.

    •Compliant with RoHS.

    •Can be used with sealing rings for enhanced protection at IP66.

    •Halogen-free.

Specifications:

 Height (mm) 26.5
 Length (mm) 34.5
 Operating temperature range -40 °C to 100 °C
 Outer cable diameter 4 mm - 8 mm
 Pitch of thread 1.5 mm
 Protection degree IP54, IP66, IP67, IP68 - 5 bar (30 min.)
 Tightening torque 2.5 Nm
 Torque for cap nut, min. 2 Nm
 Torque for lock nut, min. 2 Nm
 UL flammability rating V-2
 Certificate no. cable gland (cULus) E-199260 - BM EN 11
 General dimensions M16
