1909840000 - Polyamide Cable Gland IP67, 30-38mm Diameter, RoHS Compliant (Pack of 10)

1909840000 - Polyamide Cable Gland IP67, 30-38mm Diameter, RoHS Compliant (Pack of 10)

SKU: SKU: 1909840000   Download PDF

Select a Variant:
  • 1909840000 - Polyamide Cable Gland IP67, 30-38mm Diameter, RoHS Compliant (Pack of 10)
Qty:
Regular price Now $58.82   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $58.82 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

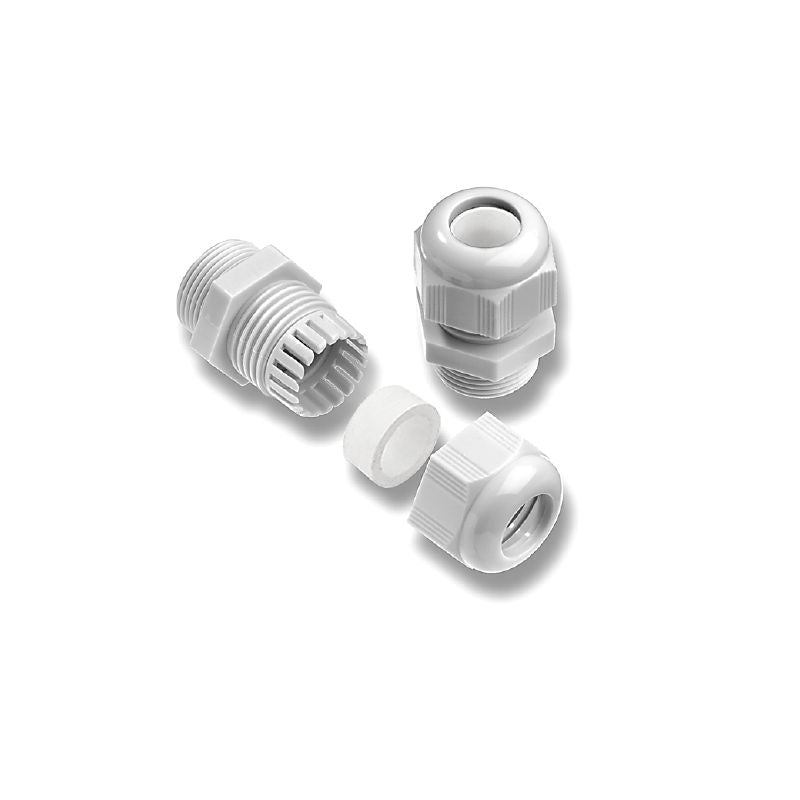

Introducing the VG PG42-K67, a robust straight cable gland constructed from Polyamide 6 and fully compliant with RoHS regulations This versatile gland can accommodate cable outer diameters ranging from 30 mm to 38 mm and features a thread length of 13 mm It operates effectively within a temperature range of -20 °C to 80 °C, with a maximum temperature tolerance of up to 100 °C Boasting an IP67 protection rating, this cable gland guarantees exceptional environmental sealing, making it an ideal choice for various applications.

Features and Benefits:

    •Compliant with RoHS.

    •Constructed from Polyamide 6.

    •IP67 protection degree for effective sealing.

    •Operating temperature range from -20 °C to 80 °C.

Specifications:

 Height 53.5 mm
 Length 66.5 mm
 Net weight 78 g
 Outer cable diameter, max. 38 mm
 Outer cable diameter, min. 30 mm
 Pitch of thread 1.59 mm
 Operating temperature range, max. 100 °C
 Operating temperature range, min. -20 °C
 Seal insert NBR
 Tightening torque 14 Nm
 Torque for cap nut, max. 21 Nm
 Torque for cap nut, min. 19 Nm
 Torque for connecting adapter, max. 14.5 Nm
 Torque for connecting adapter, min. 13.5 Nm
 Torque for lock nut, max. 14.5 Nm
 Torque for lock nut, min. 13.5 Nm
 UL 94 flammability rating V-2
 AF size 60 mm
