1909550000 - Durable M50 Cable Gland, IP68/IP69K, Nickel-Plated Brass (Pack of 5)

SKU: SKU: 1909550000 Download PDF

Select a Variant:

1909550000 - Durable M50 Cable Gland, IP68/IP69K, Nickel-Plated Brass (Pack of 5)

SET THE QTY:

Now $367.87 Web pricing policy

~~BEFORE $0.00~~ Now $367.87 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

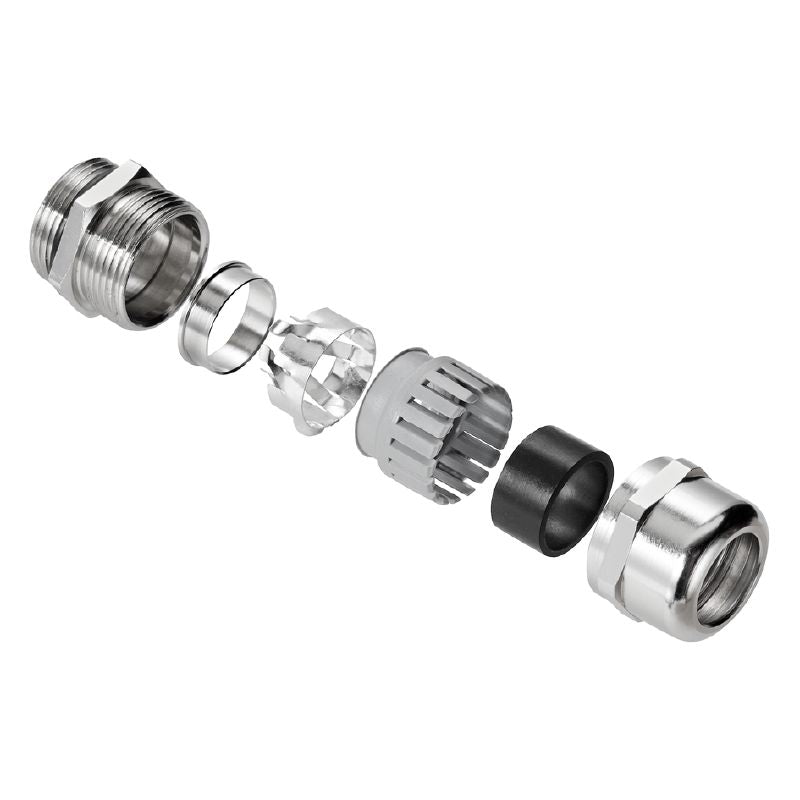

Introducing the VG EMV GEN 1, a versatile EMC cable gland featuring a clamping cage, tailored for a range of applications This straight cable gland boasts an M 50 thread size and accommodates cable outer diameters between 27 mm and 38 mm With an impressive resistance rating of IP68 at 5 bar for 30 minutes and meeting IP69K standards, this product is built for reliability in demanding environments Crafted from nickel-plated brass, it promises long-lasting durability and optimal performance.

Features and Benefits:

•Compliant with RoHS and REACH SVHC regulations.

•Rated for operating temperatures from -40 °C to 100 °C.

•External thread size is M 50.

Specifications:

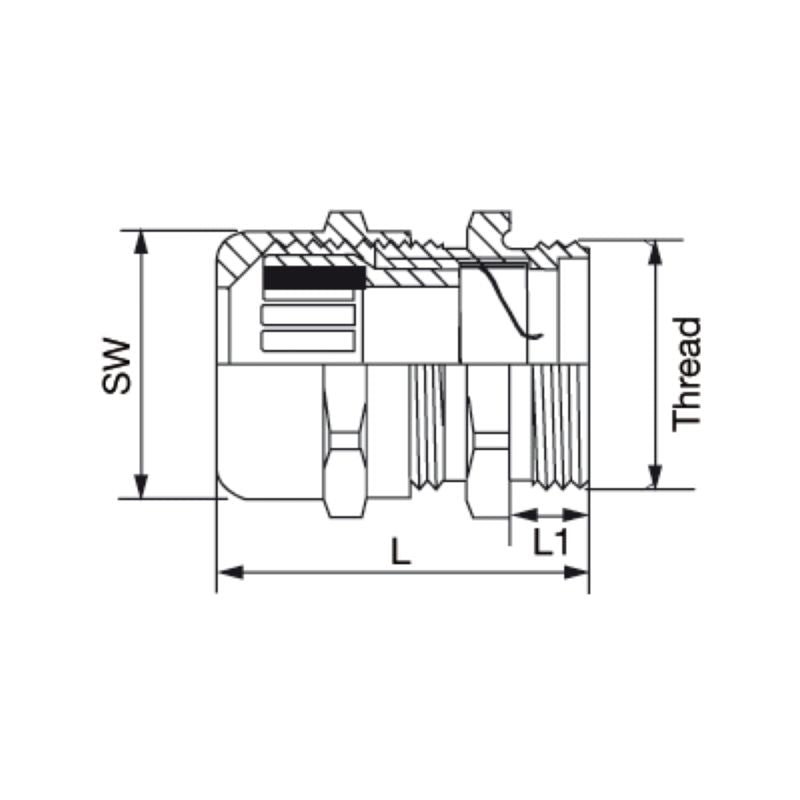

Height	54.5 mm
Length	53.5 mm
Basic material	Brass, nickel-plated
Clamp insert	Polyamide
O-Ring	NBR
Outer cable diameter, max.	38 mm
Outer cable diameter, min.	27 mm
Tightening torque	18 Nm
Pitch of thread	1.5 mm
Protection degree	IP68 - 5 bar (30 min.)
IP69K
Shield diameter, max.	38 mm
Shield diameter, min.	25 mm
Approval conditions	DNV
UL
cULus
Certificate no. cable gland (cULus)	E-199260
Certificate no. cable gland (GERMLLOYD)	E-14047
Certificate no. cable gland (UL)	E-199260
Halogen	Yes
