1909540000 - IP68 M40 EMC Cable Gland, Nickel-Plated Brass, 19-28mm (Pack of 5)

SKU: SKU: 1909540000 Download PDF

Select a Variant:

1909540000 - IP68 M40 EMC Cable Gland, Nickel-Plated Brass, 19-28mm (Pack of 5)

SET THE QTY:

Now $230.58 Web pricing policy

~~BEFORE $0.00~~ Now $230.58 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

The VG M40 - MS 1/EMV is a robust EMC cable gland featuring a clamping cage for secure cable connections This straight cable gland has an M 40 classification, accommodating cables with outer diameters ranging from 19 mm to 28 mm It excels in demanding environments, offering IP68 protection while withstanding pressures of 5 bar for up to 30 minutes, and it meets the rigorous IP69K standard Crafted from nickel-plated brass, this cable gland is designed for durability across various conditions.

Features and Benefits:

•Sealing material made of NBR and halogen-free design.

•Robust construction with a tightening torque requiring a maximum of 12 Nm.

•Protection class of Type 4X and rated for high pressure.

•Fitted with a clamp insert made of polyamide to secure cables.

•Certifications including cULus, DNV, and additional compliance with RoHS and REACH.

Specifications:

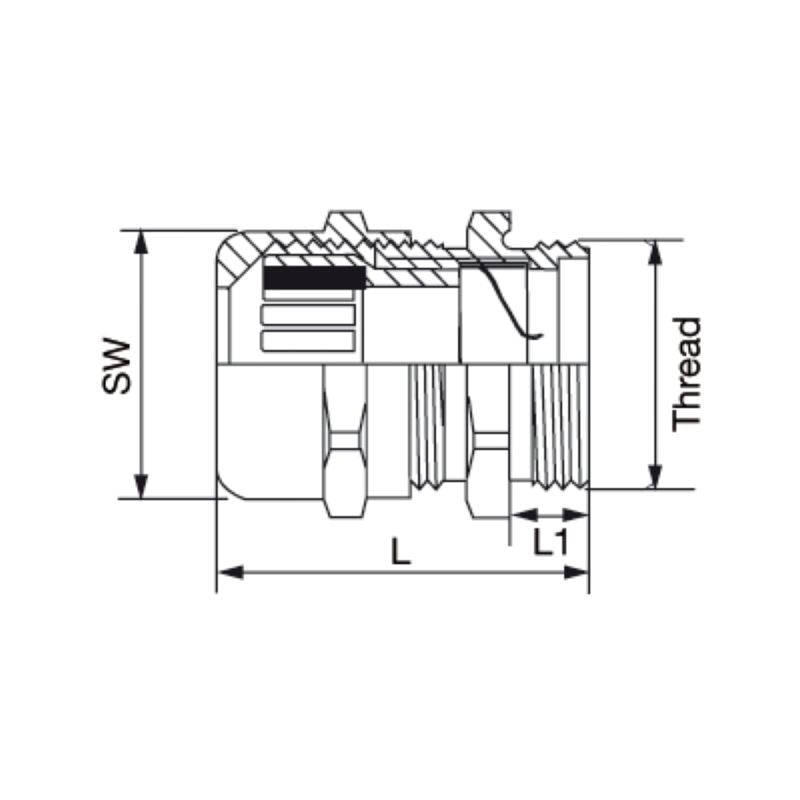

Height	43 mm
Length	52 mm
Operating temperature	-40 °C...100 °C
Outer cable diameter (max)	28 mm
Outer cable diameter (min)	19 mm
Pitch of thread	1.5 mm
Protection degree	IP68 - 5 bar (30 min.), IP69K
Basic material	Brass, nickel-plated
Clamp insert	Polyamide
Seal insert	CR
Tightening torque	12 Nm
Certificate no. cable gland (cULus)	E-199260
Certificate no. cable gland (GERMLLOYD)	E-14047
Certificate no. cable gland (UL)	E-199260
