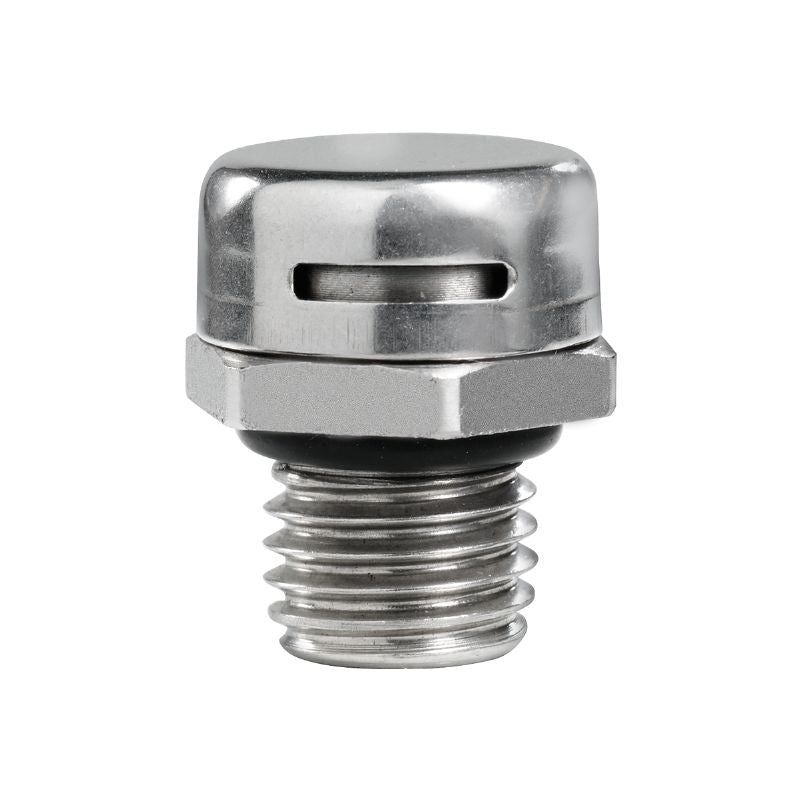

1868550000 - M12 Stainless Steel Ventilation Element with IP66, IP68 Protection (Pack of 10)

Description:

Introducing the DAE M12 SS, a robust straight compensating element specifically engineered for ventilation applications Constructed from high-grade stainless steel 14305 (303), it boasts impressive protection ratings of IP66, IP68, and IP69K This versatile product is designed for use with metric cable glands and features an external M12 thread, ensuring a secure connection Complying with RoHS regulations without any exemptions, the DAE M12 SS contains no Substances of Very High Concern (SVHC) materials exceeding 0.

1 wt% It is built to withstand a wide temperature range from -40 °C to 105 °C, making it suitable for various environments This element allows for an airflow rate of 04 l/min at a pressure differential of 01 bar and can reach up to 50 l/min at a differential pressure of 1 bar With a wall thickness between 05 mm and 10 mm and an internal diameter of 12 mm, this product is designed for optimizing airflow while maintaining structural integrity.

Installation is straightforward, with comprehensive assembly instructions provided, and the connecting adapter requires a torque setting ranging from 04 Nm to 06 Nm for optimal performance Additionally, the DAE M12 SS meets ETIM and ECLASS classification standards, ensuring it meets industry specifications.

Features and Benefits:

•Constructed from stainless steel 1.4305.

•IP66, IP68, and IP69K ratings for durability.

•Optional air flow capacities depending on ΔP.

•RoHS compliant without exemptions.

•No SVHC above 0.1 wt%.

•Ventilation applications.

•Used with metric cable glands.
