1777920000 - RoHS Compliant 16mm Sealing Ring for M12 Applications (Pack of 50)

1777920000 - RoHS Compliant 16mm Sealing Ring for M12 Applications (Pack of 50)

SKU: SKU: 1777920000 Download PDF

Variant:
  • 1777920000 - RoHS Compliant 16mm Sealing Ring for M12 Applications (Pack of 50)
Regular price Now $8.34
Regular price BEFORE   $0.00 Sale price Now $8.34
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

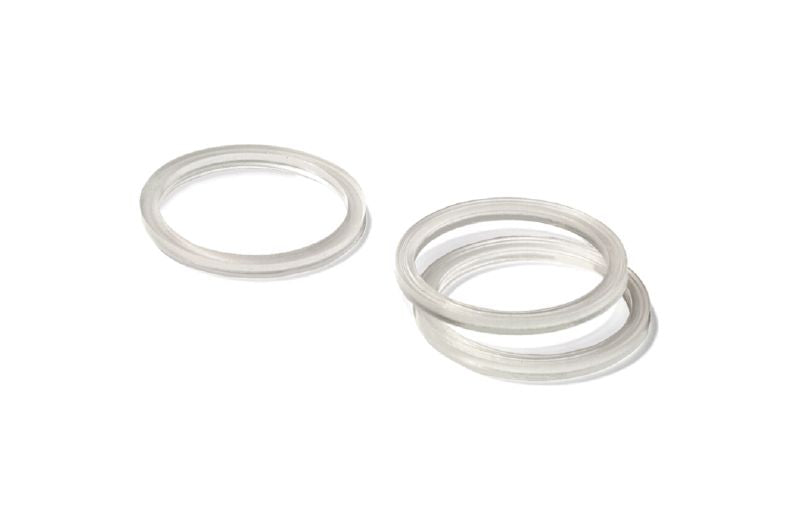

Introducing the GWDR M12-PO sealing ring, expertly crafted from durable polyethylene for M12 applications With a height of 2 mm and a diameter of 16 mm, this ring combines precision with functionality Weighing just 02 grams, it’s lightweight yet robust Designed to meet RoHS compliance standards without exemptions, this sealing ring performs reliably within a temperature range of -30 °C to 90 °C, making it a dependable choice for various environments.

Features and Benefits:

    •Compliant with RoHS standards.

    •Made from polyethylene.

    •Silicone incorporated.

    •Suitable for M12 applications.

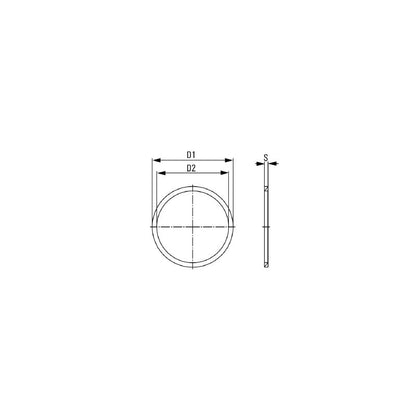

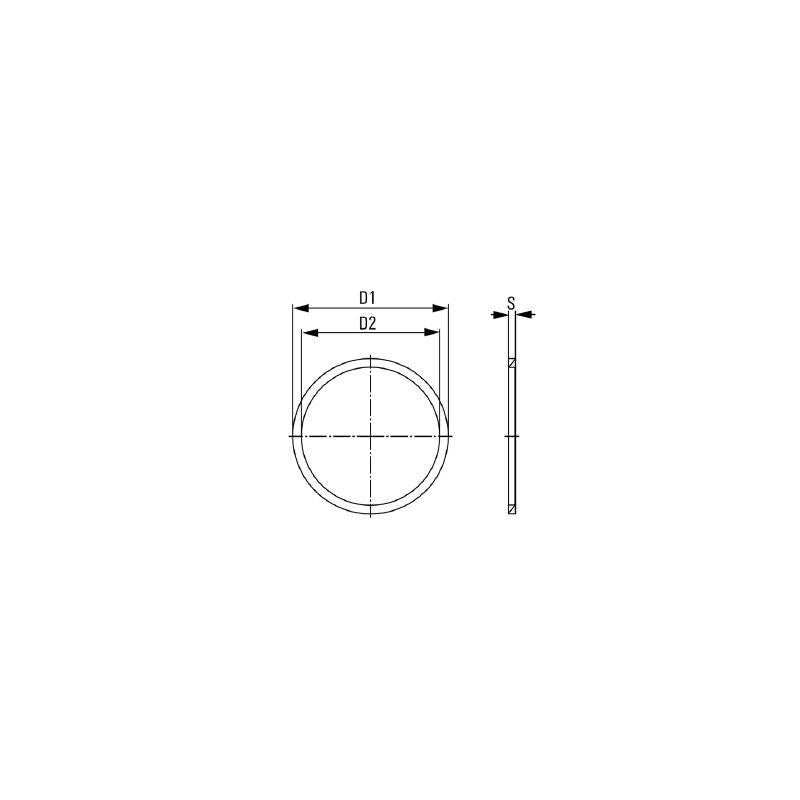

Specifications:

 Height 2 mm
 Height (inches) 0.079 inch
 Diameter of sealing ring 16 mm
 Internal thread M 12 x 1.5
 Number of wires 1
 O.D. 16 mm
 Operating temperature range, max. 90 °C
 Operating temperature range, min. -30 °C
 Pitch of thread 1.5 mm
 Sealing PE-HD
 Thickness 2 mm
 GTIN (EAN) 4032248158188
 Cable gland M 12
 ETIM 6.0 EC001181
 ETIM 7.0 EC001181
 ETIM 8.0 EC001181
 ETIM 9.0 EC001181
 ETIM 10.0 EC001181
 ECLASS 9.0 27-43-03-19
 ECLASS 9.1 27-14-44-90
 ECLASS 10.0 27-43-03-19
 ECLASS 11.0 27-43-03-19
 ECLASS 12.0 27-43-03-19
 ECLASS 13.0 27-43-03-19
 ECLASS 14.0 27-43-03-19
 ECLASS 15.0 27-43-03-19
