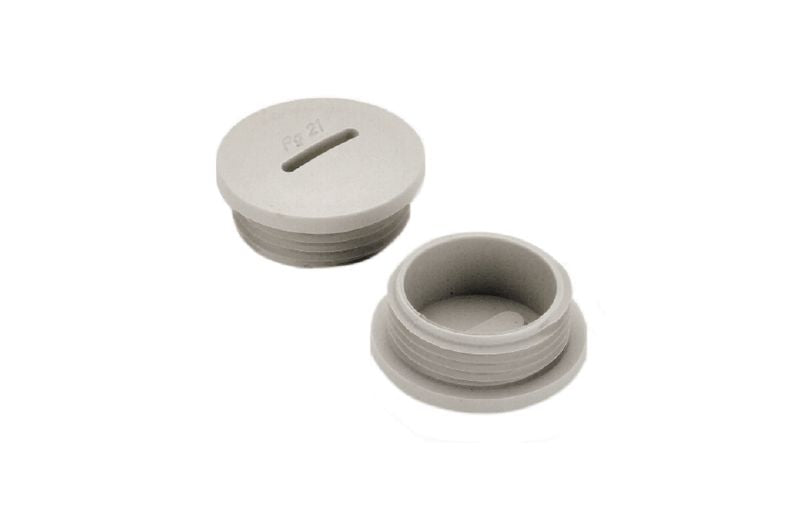

1776960000 - IP65 M50 Plastic Blanking Plug, 14mm Thick PA6 (Pack of 10)

1776960000 - IP65 M50 Plastic Blanking Plug, 14mm Thick PA6 (Pack of 10)

SKU: 1776960000   Download PDF

Select a Variant:
  • 1776960000 - IP65 M50 Plastic Blanking Plug, 14mm Thick PA6 (Pack of 10)
Qty:
Now $49.95   Web pricing policy
BEFORE   $0.00 Now $49.95 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the VP M50 K54 plastic blanking plug, specifically crafted to meet Metric M 50 standards With a compact size of 14 mm, this plug provides reliable IP65 protection Made from durable Polyamid 6 (PA6 - GF30), it meets RoHS compliance for environmentally friendly use The plug boasts a maximum diameter of 50 mm and features a wall thickness that ranges from 05 mm to 13 mm, making it an excellent choice for a secure and effective closure.

Features and Benefits:

    •IP65 rating for enhanced protection.

    •RoHS compliant without exemption.

    •Suitable for a wide temperature range of -40 °C to 100 °C.

    •Thoroughly tested for environmental compliance.

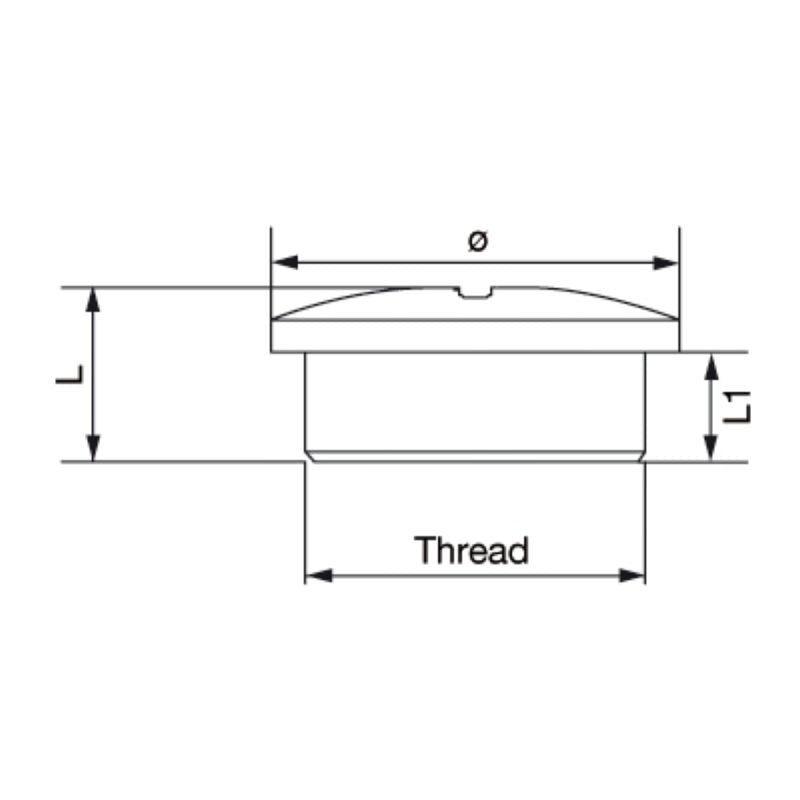

Specifications:

 Height 5 mm
 Length 8.5 mm
 Diameter 50 mm
 Wall thickness, min. 0.5 mm
 Wall thickness, max. 13 mm
 Operating temperature range, max. 100 °C
 Operating temperature range, min. -40 °C
 Protection degree IP54
 Protection degree with GWDR IP65
 UL 94 flammability rating V-2
 Basic material Polyamid 6 (PA6 - GF30)
 External thread M 50
 Head diameter 56 mm
 Length of thread 14 mm
 Pitch of thread 1.5 mm
 Diameter of sealing ring 50 mm
