1772290000 - M16 Plastic Cable Gland, IP68 Rated, 5-10mm Diameter (Pack of 50)

SKU: SKU: 1772290000 Download PDF

Select a Variant:

1772290000 - M16 Plastic Cable Gland, IP68 Rated, 5-10mm Diameter (Pack of 50)

SET THE QTY:

Now $48.66 Web pricing policy

~~BEFORE $0.00~~ Now $48.66 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

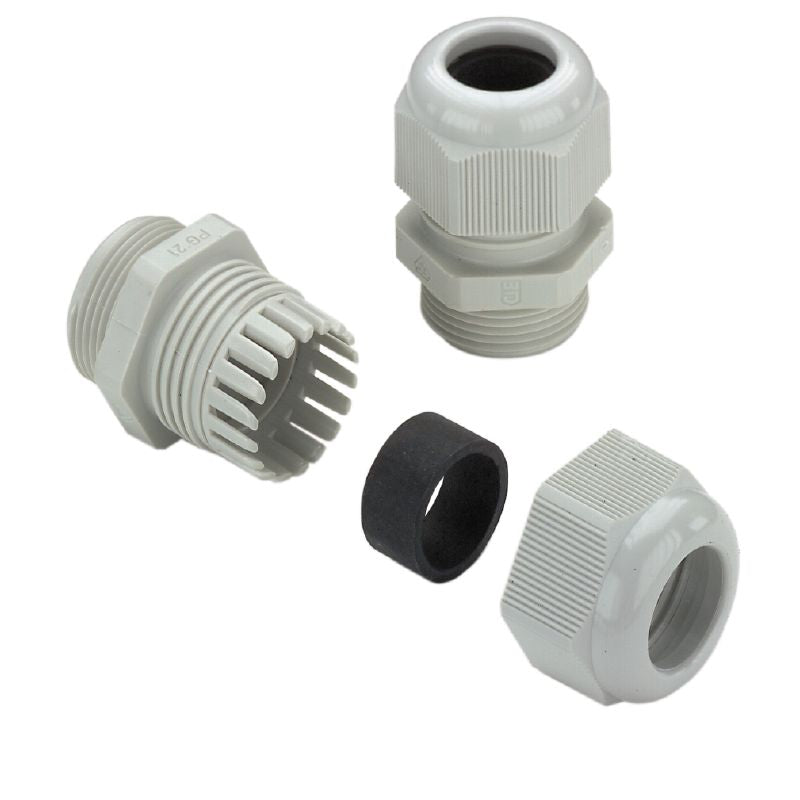

Introducing the VG M16 - K 68, a versatile plastic cable gland designed for straightforward applications with M16 threading This reliable component features an adjustable outer diameter ranging from 5 mm to 10 mm, ensuring versatility for various projects It boasts impressive protection ratings of IP54, IP66, IP67, and IP68, capable of withstanding up to 30 minutes of exposure to 5 bar pressure Constructed from durable Polyamide 6, this cable gland is engineered to perform efficiently within a temperature range of -40 °C to 100 °C, making it suitable for challenging environments.

Features and Benefits:

•RoHS compliant without exemptions.

•Halogen-free.

•Suitable for metric cable applications.

•Protection class of Type 4X.

•ISOLATED or protection degree of IP67, IP68 under specific conditions.

Specifications:

Height	29.7 mm
Length	40 mm
Operating temperature	-40 °C...100 °C
Basic material	Polyamide 6
External thread	M 16
Outer cable diameter (max)	10 mm
Outer cable diameter (min)	5 mm
Pitch of thread	1.5 mm
Protection degree	IP67
Protection degree with GWDR	IP54
Tightening torque	2.5 Nm
Torque for cap nut (max)	3 Nm
Torque for cap nut (min)	2 Nm
Torque for connecting adapter (max)	3 Nm
Torque for connecting adapter (min)	2 Nm
Torque for lock nut (max)	3 Nm
Torque for lock nut (min)	2 Nm
UL 94 flammability rating	V-2
