Description:

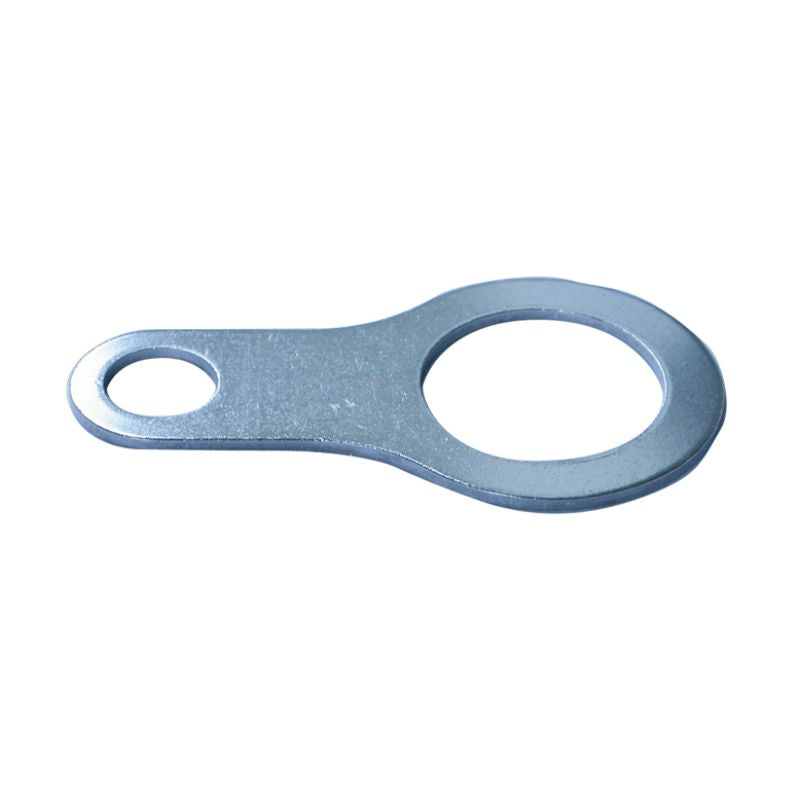

Introducing the EA-RING MS/M 32, a reliable earthing ring crafted from brass and nickel-plated material, ensuring compliance with RoHS standards This versatile item belongs to the miscellaneous earthing rings category and features a standard size of M 32 Each set contains 20 rings, providing ample supply for your grounding needs.

Features and Benefits:

•Brass, nickel-plated construction.

•RoHS compliant with exemption 6c.

•Includes identification for various certification numbers.

Specifications:

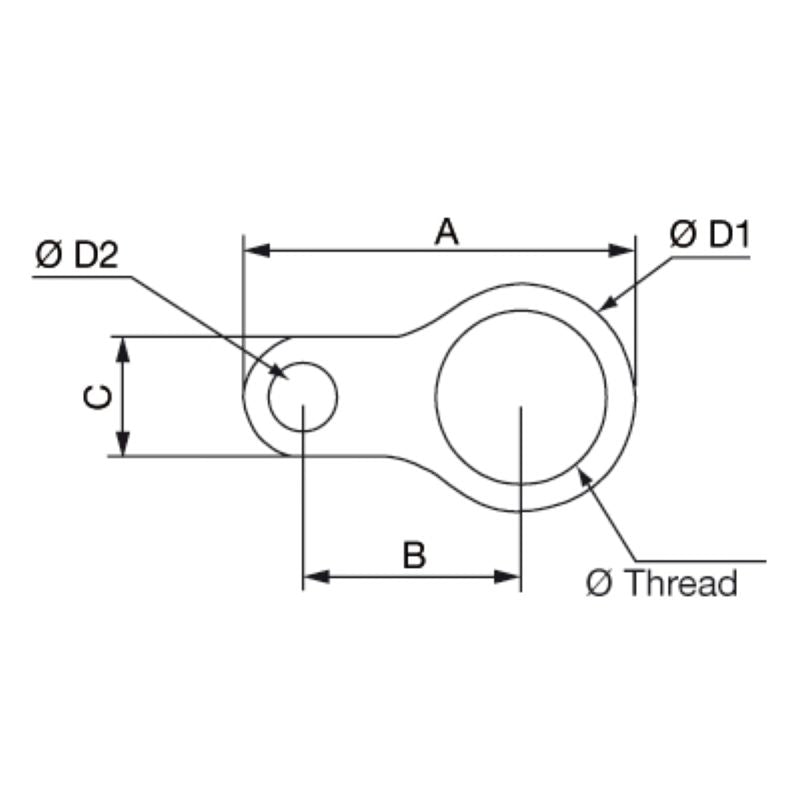

Height	73 mm
Length	73 mm
Net weight	14.6 g
Basic material	Brass, nickel-plated
Cable gland	M 32
External thread	M 32
Gap, internal dimension B	41 mm
Inside diameter D2	12.2 mm
O.D.	42 mm
Thickness	1.5 mm
Width, outer dimension C	22 mm
ETIM 6.0	EC002317
ETIM 7.0	EC002317
ETIM 8.0	EC002317
ETIM 9.0	EC002317
ETIM 10.0	EC002317
ECLASS 9.0	27-14-44-32
ECLASS 9.1	27-14-44-90
ECLASS 10.0	27-14-44-32
ECLASS 11.0	27-14-44-32
ECLASS 12.0	27-14-08-07
ECLASS 13.0	27-14-08-07
ECLASS 14.0	27-14-08-07
ECLASS 15.0	27-14-08-07
