Product Information

Description:

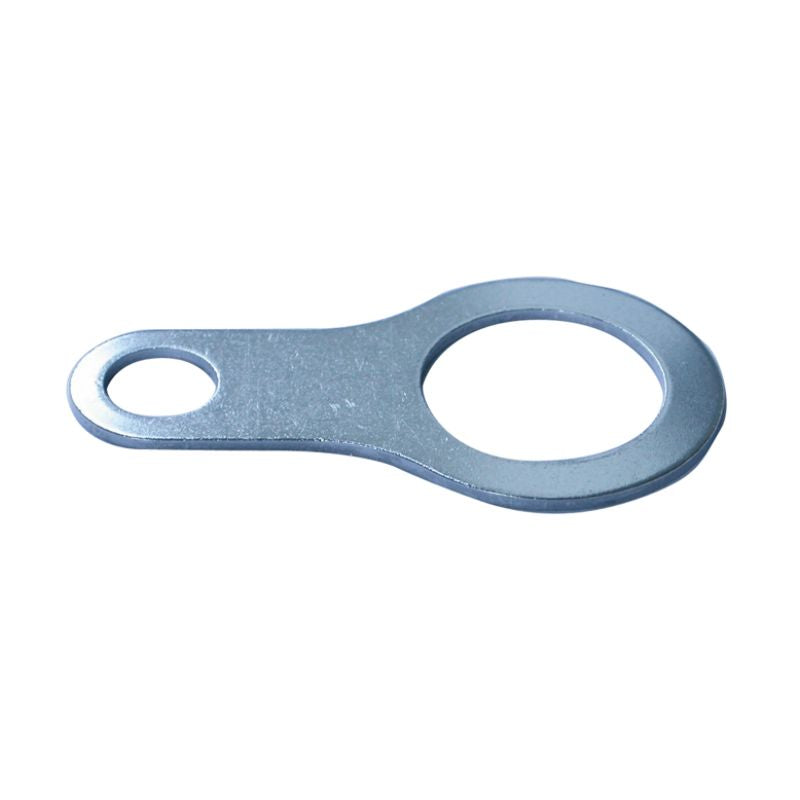

Introducing the EA-RING MS/M 16, a robust earthing ring perfect for a range of applications Crafted from brass and finished with a nickel plating, this ring offers enhanced durability for reliable performance in electrical installations Compliant with RoHS standards, it guarantees the use of safe and eco-friendly materials, making it an ideal choice for those conscious about the environment.

Features and Benefits:

•Manufactured from brass, nickel-plated for enhanced protection.

•Compliant with RoHS requirements.

•Designed for use with M 16 cable glands.

Specifications:

Height	48.75 mm
Length	48.75 mm
Net weight	7.05 g
Basic material	Brass, nickel-plated
Cable gland	M 16
External thread	M 16

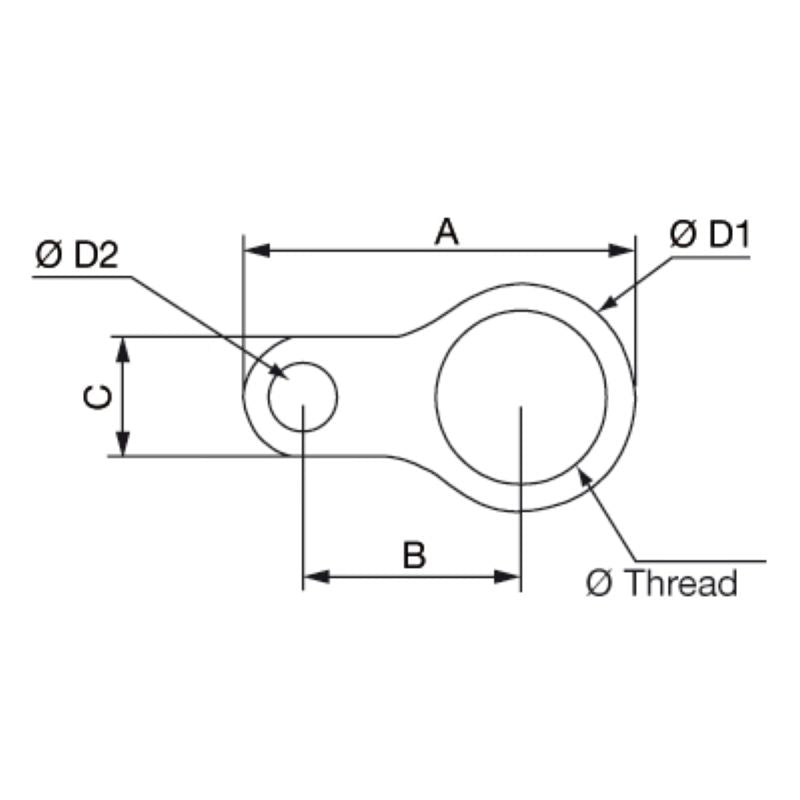

Gap, internal dimension B	30 mm
Inside diameter D2	6.75 mm
O.D.	24.5 mm
Thickness	1.5 mm
Width, outer dimension C	13 mm
RoHS Compliance Status	Compliant with exemption
RoHS Exemption	6c
REACH SVHC	Lead 7439-92-1
SCIP	2bd73422-c6ea-4a92-b8e7-00964d1156f3
Identification	Ex e II II 2 GD, EEx d II II 2 GD
ETIM 6.0	EC002317
ETIM 7.0	EC002317
ETIM 8.0	EC002317
ETIM 9.0	EC002317
ETIM 10.0	EC002317
ECLASS 9.0	27-14-44-32
ECLASS 9.1	27-14-44-90
ECLASS 10.0	27-14-44-32
ECLASS 11.0	27-14-44-32
ECLASS 12.0	27-14-08-07
ECLASS 13.0	27-14-08-07
ECLASS 14.0	27-14-08-07
ECLASS 15.0	27-14-08-07
